Raspberry Pi Compute Module 5
£35.55 - £75.05
Raspberry Pi Compute Module 5 (CM5) brings the power of Raspberry Pi 5 to the Compute Module family.
As with existing Compute Modules, CM5 is available with a choice of eMMC storage densities (from 0GB-Lite to 64GB), a choice of DRAM densities (2GB, 4GB, 8GB & 16GB), and either wireless or non-wireless variants. Please select your required options before purchasing.
Wireless
RAM
eMMC Storage
Choose Quantity
Product Details

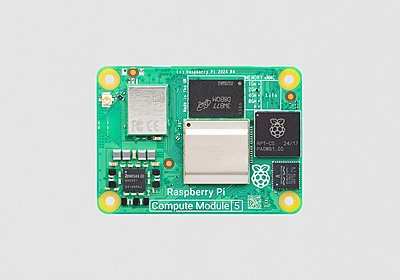

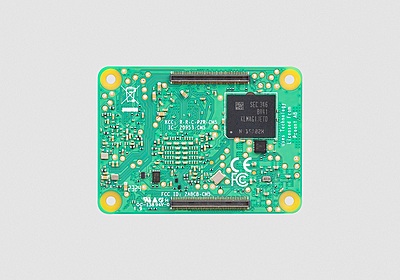

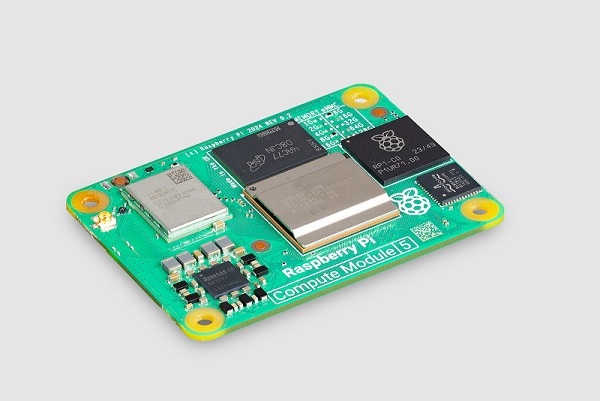

Raspberry Pi Compute Module 5 is a system on module that delivers the power of Raspberry Pi 5 in a form factor ideal for embedded applications. Featuring a quad-core Arm Cortex-A76 processor, dual 4Kp60 HDMI output, Gigabit Ethernet, optional fully-certified wireless module providing Wi-Fi® and Bluetooth connectivity, and a variety of RAM and eMMC flash options, Compute Module 5 enables you to leverage Raspberry Pi 5’s powerful hardware and optimised software stack in your own custom systems and form factors.
In comparison with its predecessor, Compute Module 5 features additional I/O interfaces, allowing even more flexibility and providing a greater breadth of options for product and application design. For cost-sensitive applications, Compute Module 5 is also available without eMMC flash.
Also available to assist product designers is the Raspberry Pi Development Kit for Compute Module 5, offering an ideal environment for prototyping embedded solutions. This comprehensive kit includes a Compute Module 5 and Compute Module 5 IO Board, together with all the essential accessories to kick-start your product design.
Raspberry Pi Compute Module 5 Specification
Form factor:
- 55 mm × 40 mm × 4.7 mm module
- 4 × M2.5 mounting holes
Processor:
- Broadcom BCM2712 quad-core 64-bit Arm Cortex-A76 (Armv8) SoC @ 2.4GHz
Memory:
- Options for 2GB, 4GB, 8GB, 16GB LPDDR4-4267 SDRAM with ECC
- Options for 0GB (Lite), 16GB, 32GB or 64GB eMMC flash memory
See table below for full list of variant options
Connectivity:
- Options for certified radio module containing:
- 2.4 GHz / 5.0 GHz IEEE 802.11 b/g/n/ac wireless
- Bluetooth 5.0, BLE
- On-board electronic switch to select between PCB trace or external antenna
- Gigabit Ethernet PHY supporting IEEE 1588
- 1 × PCIe x1 root complex, Gen 2 (5Gbps)
- 1 × USB 2.0 port (high speed)
- 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
- Up to 30 × GPIO supporting either 1.8V or 3.3V signalling and peripheral options:
- Up to 5 × UART
- Up to 5 × I2C
- Up to 5 × SPI
- 1 × SDIO interface
- 1 × DPI (parallel RGB display)
- 1 × I2S
- Up to 4 × PWM channels
- Up to 3 × GPCLK outputs
Video:
- 2 × HDMI 2.0 ports
(supports up to 4Kp60 on both ports simultaneously) - 2 × 4-lane MIPI ports
supporting both DSI (display port) and CSI-2 (camera port)
Multimedia:
- 4Kp60 HEVC decoder
- OpenGL ES 3.1 graphics, Vulkan 1.2
- 1 × SDIO 2.0 (CM5 Lite)
Input power:
- Single +5V PSU input supports USB PD for up to 5A @ 5V
Operating temperature:
- -20°C to +85°C
MTBF1 Ground Benign:
- 143 000 hours (168 000 hours CM5 Lite)
Production lifetime:
- Raspberry Pi Compute Module 5 will remain in production until at least January 2036
Raspberry Pi Compute Module 5 Variants
Note: 16GB RAM variants are not yet available.
Wireless? | RAM | eMMC | Part number |
No | 2GB | 0GB (Lite) | CM5002000 |
No | 2GB | 16GB | CM5002016 |
No | 2GB | 32GB | CM5002032 |
No | 2GB | 64GB | CM5002064 |
No | 4GB | 0GB (Lite) | CM5004000 |
No | 4GB | 16GB | CM5004016 |
No | 4GB | 32GB | CM5004032 |
No | 4GB | 64GB | CM5004064 |
No | 8GB | 0GB (Lite) | CM5008000 |
No | 8GB | 16GB | CM5008016 |
No | 8GB | 32GB | CM5008032 |
No | 8GB | 64GB | CM5008064 |
No | 16GB | 0GB (Lite) | CM5016000 |
No | 16GB | 16GB | CM5016016 |
No | 16GB | 32GB | CM5016032 |
No | 16GB | 64GB | CM5016064 |
Yes | 2GB | 0GB (Lite) | CM5102000 |
Yes | 2GB | 16GB | CM5102016 |
Yes | 2GB | 32GB | CM5102032 |
Yes | 2GB | 64GB | CM5102064 |
Yes | 4GB | 0GB (Lite) | CM5104000 |
Yes | 4GB | 16GB | CM5104016 |
Yes | 4GB | 32GB | CM5104032 |
Yes | 4GB | 64GB | CM5104064 |
Yes | 8GB | 0GB (Lite) | CM5108000 |
Yes | 8GB | 16GB | CM5108016 |
Yes | 8GB | 32GB | CM5108032 |
Yes | 8GB | 64GB | CM5108064 |
Yes | 16GB | 0GB (Lite) | CM5116000 |
Yes | 16GB | 16GB | CM5116016 |
Yes | 16GB | 32GB | CM5116032 |
Yes | 16GB | 64GB | CM5116064 |
