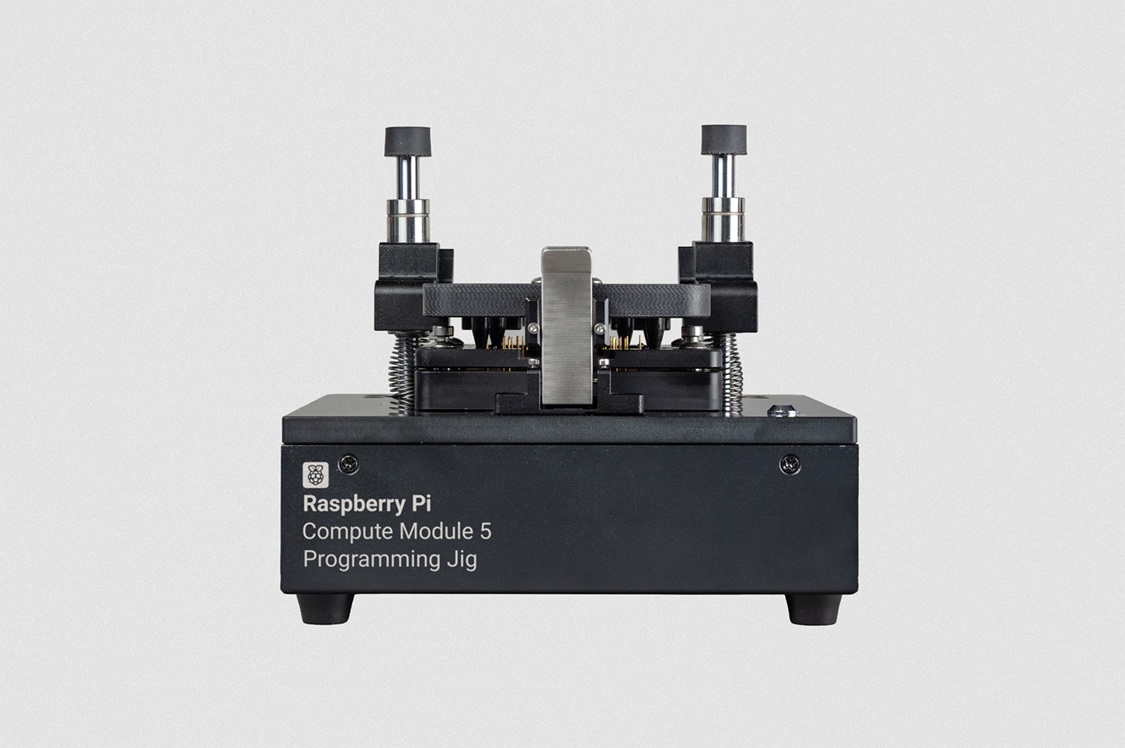

The Compute Module 5 Programming Jig is a single-head provisioning system built to take Compute Module 5 straight from bare board to production-ready device without needing a separate IO board during the process. Developers can automate the provisioning workflow using rpi-sb-provisioner, enabling the jig to handle all of the usual configuration steps, including secure boot implementation, full disk encryption, and bare operating system installation. The jig connects to the provisioning network via Ethernet or Wi-Fi® and features a second Ethernet port for accelerated software transfer. Pogo pins interface directly with the module, eliminating the need for a separate carrier board.
Key features of the Compute Module 5 Programming Jig
- Single-head design provisions one Compute Module 5 at a time.
- Mechanical clamping secures the Compute Module 5 in place during programming.
- Pogo pin interface connects directly to Compute Module 5 without a carrier board.
- LED status indicators communicate the current state of the jig and provisioning progress.
- Dual network connectivity connects the jig to the provisioning network by Ethernet (JIG ETH) or Wi-Fi, with a second Ethernet port (DUT ETH) for accelerated software transfer to the Compute Module 5 being programmed.
- Automated provisioning supports secure boot, full-disk encryption, and bare operating system installation.
Note: Compatible with
Compute Module 5 (CM5) only.
