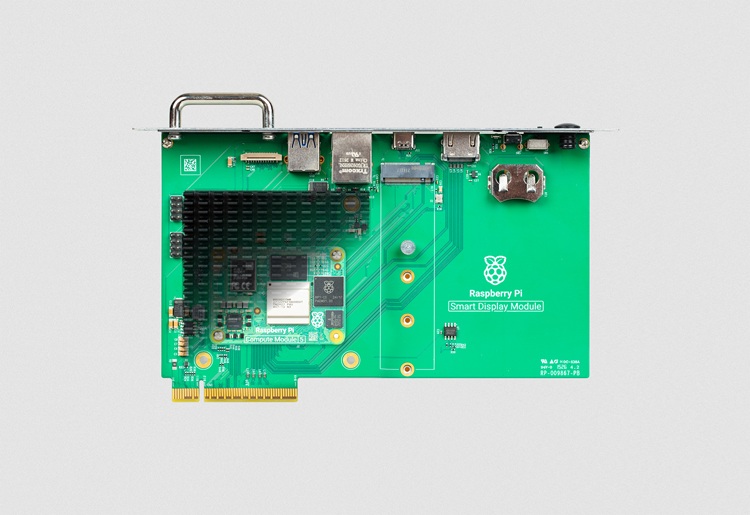

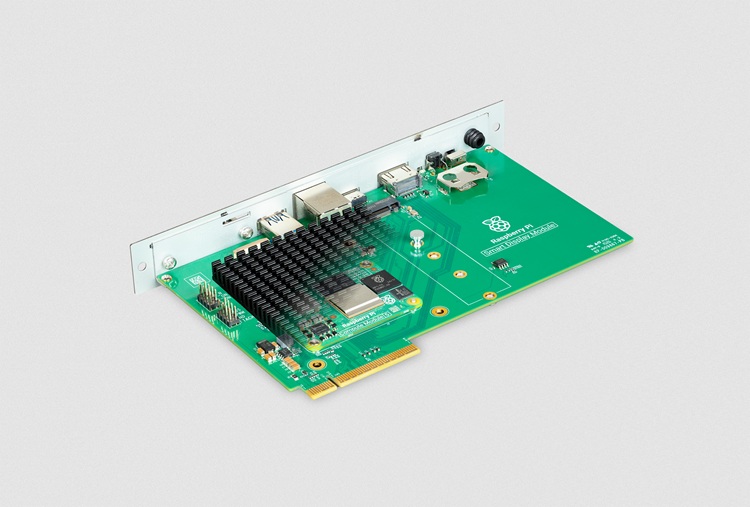

The Smart Display Module slots directly into products that support Intel’s standard, drawing power from the host device itself. The included heatsink fits within the SDM form factor to conduct heat away from Compute Module 5. The module also provides HDMI output to support a second, independent video stream, and an M.2 expansion slot for optional AI acceleration or high-speed storage.
Key features of the Raspberry Pi Smart Display Module
- Compatible with Compute Module 5 (which mounts directly on the Smart Display Module).
- Slots directly into host displays that support the SDM specification.
- Included heatsink fits within the SDM form factor and conducts heat away from the CM5.
- Powered directly by the host display, requiring no separate power supply.
- M.2 M-key PCIe socket compatible with the 2230, 2242, 2260, and 2280 form factors; used to add more storage or AI acceleration.
- Compatible with the Raspberry Pi Antenna Kit; the external antenna can be positioned to the outside of the host display.
- Second HDMI output, with support for an independent video stream.
- External power button. Power cycle the module independently from the display.
- LED. Indicates power status and storage activity.
What does the Smart Display Module box contain?
- Smart Display Module
- Passive aluminium heatsink
- Four M3 screws to secure heatsink
- Two M2 screws to secure Compute Module 5
- A drive attachment screw to secure M.2 card
