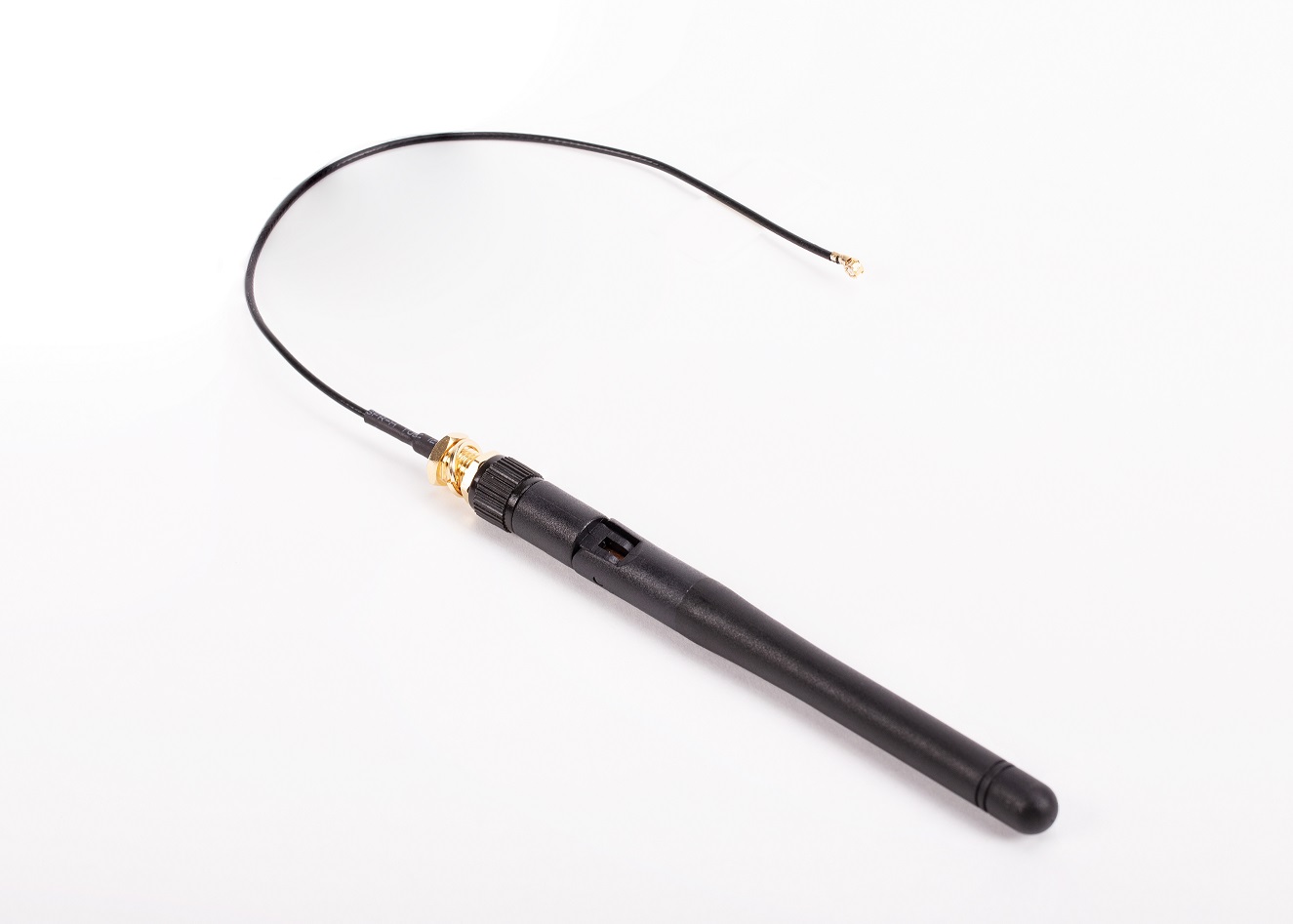

Raspberry Pi Compute Module Antenna Kit
£3.95

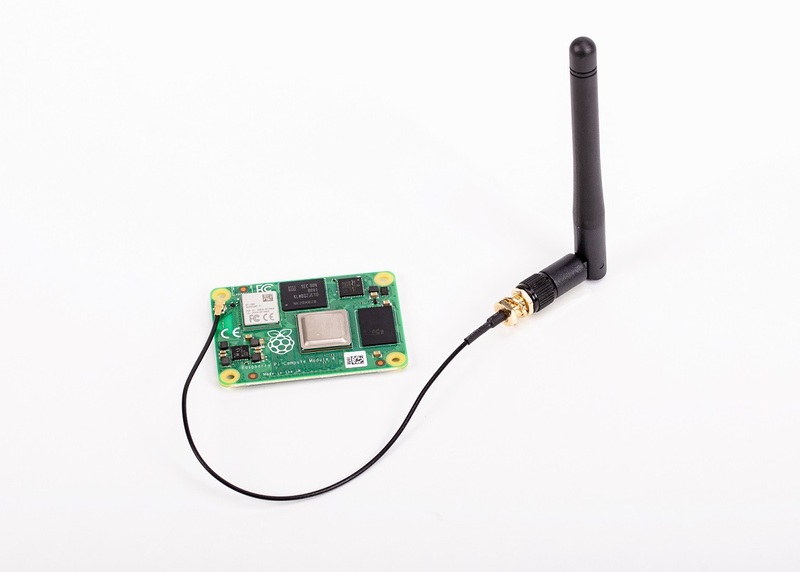

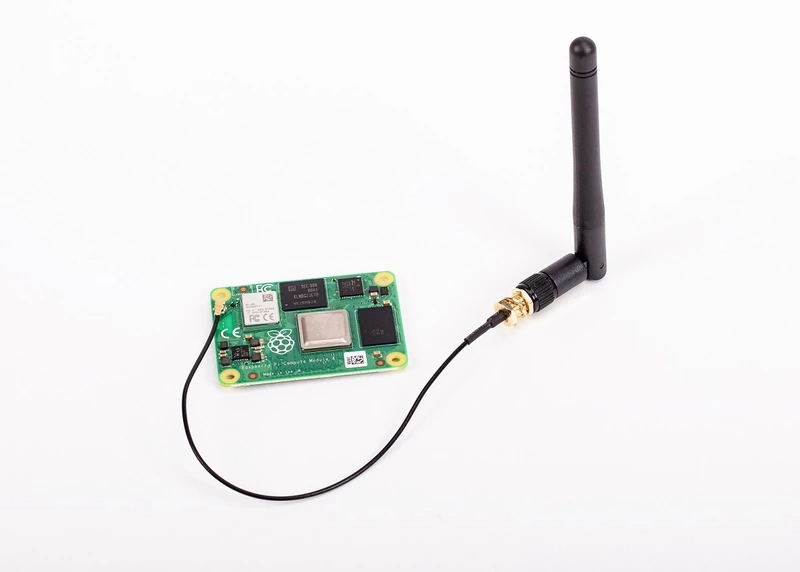

Designed and certified for use with variants of both Compute Module 4 and 5 that include an onboard wireless module.

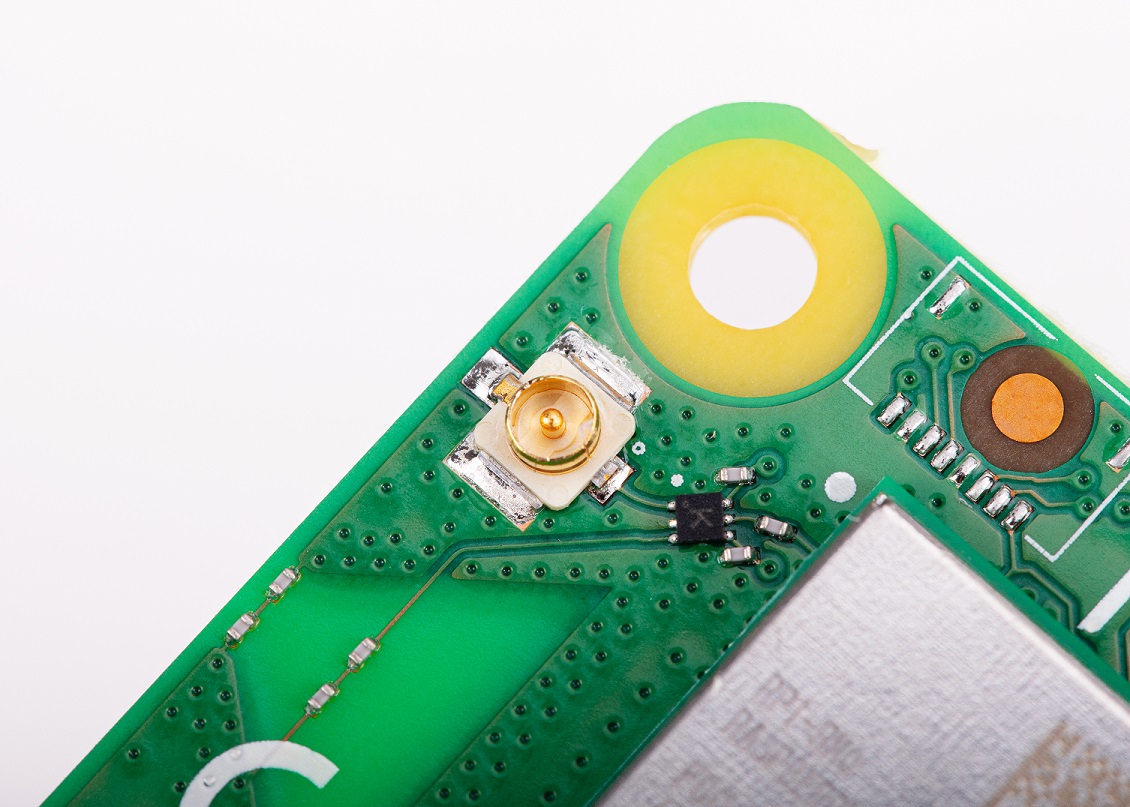

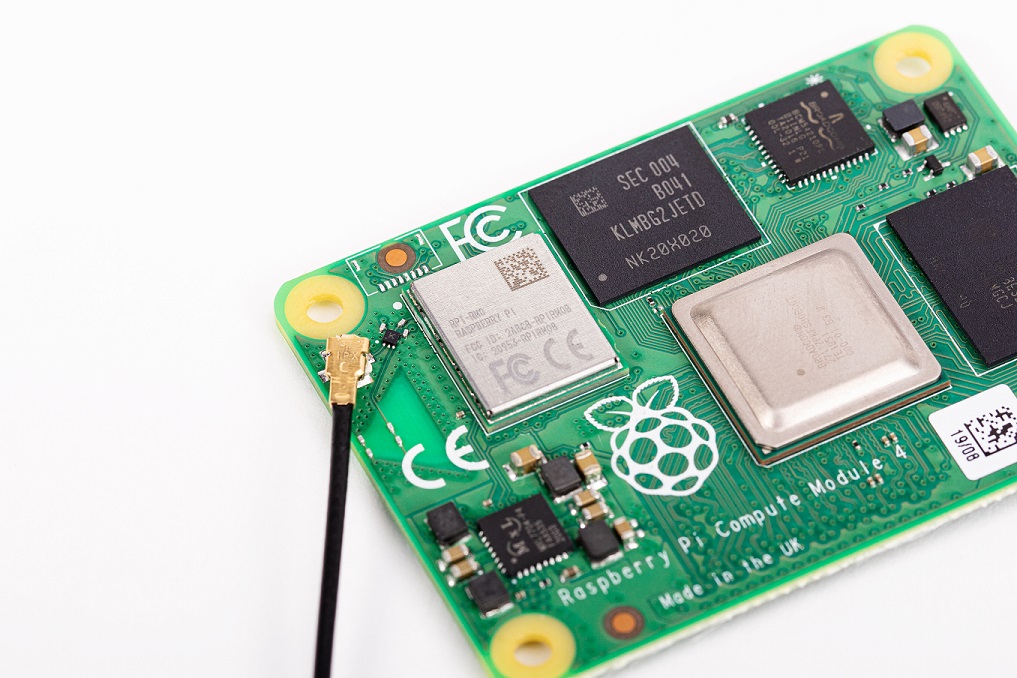

These compute modules (part numbers CM41xxxxx and CM51xxxxx) provide an onboard PCB antenna and a UFL connector which allows an optional external antenna to be used.
Choose Quantity
Product Details
Antenna specifications
- Frequency range: 2400-2500/5100-5800 MHz
- Bandwidth: 100–700MHz
- VSWR: ≤ 2.0
- Gain: 2 dBi
- Impedance: 50 ohm
- Polarisation: Vertical
- Radiation: Omnidirectional
- Maximum power: 10W
- Antenna dimensions: 108 mm × 10 mm
Note: Compute module not included. See here for information about Compute Module 5.
