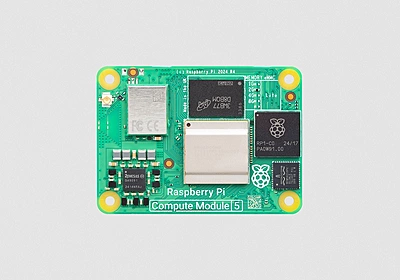

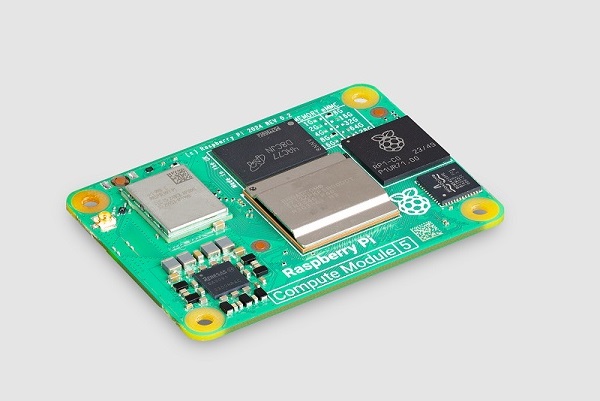

Raspberry Pi Compute Module 5

Name: Raspberry Pi Compute Module 5-Yes
Brand: Raspberry Pi
SKU: SC1608 - CM5116064
Price: 172.5 GBP
Availability: InStock

Raspberry Pi Compute Module 5 (CM5) brings the power of Raspberry Pi 5 to the Compute Module family.

As with existing Compute Modules, CM5 is available with a choice of eMMC storage densities (from 0GB-Lite to 64GB), a choice of DRAM densities (2GB, 4GB, 8GB & 16GB), and either wireless or non-wireless variants. Please select your required options before purchasing.

CM5 Product Brief

Raspberry Pi Development Kit for Compute Module 5

£41.25 - £172.50

£41.25

£56.25

£60.00

£63.75

£56.25

£71.25

£75.00

£78.75

£86.25

£101.25

£105.00

£108.75

£146.25

£161.25

£165.00

£168.75

£45.00

£60.00

£63.75

£67.50

£60.00

£75.00

£78.75

£82.50

£90.00

£105.00

£108.75

£112.50

£150.00

£165.00

£168.75

£172.50

Additional information

Available Offer

Product Details

Raspberry Pi Compute Module 5 is a system on module that delivers the power of Raspberry Pi 5 in a form factor ideal for embedded applications. Featuring a quad-core Arm Cortex-A76 processor, dual 4Kp60 HDMI output, Gigabit Ethernet, optional fully-certified wireless module providing Wi-Fi® and Bluetooth connectivity, and a variety of RAM and eMMC flash options, Compute Module 5 enables you to leverage Raspberry Pi 5’s powerful hardware and optimised software stack in your own custom systems and form factors.

In comparison with its predecessor, Compute Module 5 features additional I/O interfaces, allowing even more flexibility and providing a greater breadth of options for product and application design. For cost-sensitive applications, Compute Module 5 is also available without eMMC flash.

Also available to assist product designers is the Raspberry Pi Development Kit for Compute Module 5, offering an ideal environment for prototyping embedded solutions. This comprehensive kit includes a Compute Module 5 and Compute Module 5 IO Board, together with all the essential accessories to kick-start your product design.

Raspberry Pi Compute Module 5 Specification

Form factor:

55 mm × 40 mm × 4.7 mm module
4 × M2.5 mounting holes

Processor:

Broadcom BCM2712 quad-core 64-bit Arm Cortex-A76 (Armv8) SoC @ 2.4GHz

Memory:

Options for 2GB, 4GB, 8GB, 16GB LPDDR4-4267 SDRAM with ECC
Options for 0GB (Lite), 16GB, 32GB or 64GB eMMC flash memory

See table below for full list of variant options

Connectivity:

Options for certified radio module containing:

2.4 GHz / 5.0 GHz IEEE 802.11 b/g/n/ac wireless
Bluetooth 5.0, BLE
On-board electronic switch to select between PCB trace or external antenna

Gigabit Ethernet PHY supporting IEEE 1588
1 × PCIe x1 root complex, Gen 2 (5Gbps)
1 × USB 2.0 port (high speed)
2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
Up to 30 × GPIO supporting either 1.8V or 3.3V signalling and peripheral options:

Up to 5 × UART
Up to 5 × I2C
Up to 5 × SPI
1 × SDIO interface
1 × DPI (parallel RGB display)
1 × I2S
Up to 4 × PWM channels
Up to 3 × GPCLK outputs

Video:

2 × HDMI 2.0 ports
(supports up to 4Kp60 on both ports simultaneously)
2 × 4-lane MIPI ports
supporting both DSI (display port) and CSI-2 (camera port)

Multimedia:

4Kp60 HEVC decoder
OpenGL ES 3.1 graphics, Vulkan 1.2
1 × SDIO 2.0 (CM5 Lite)

Input power:

Single +5V PSU input supports USB PD for up to 5A @ 5V

Operating temperature:

-20°C to +85°C

MTBF1 Ground Benign:

143 000 hours (168 000 hours CM5 Lite)

Production lifetime:

Raspberry Pi Compute Module 5 will remain in production until at least January 2036

Raspberry Pi Compute Module 5 Variants

Wireless?	RAM	eMMC	Part number
No	2GB	0GB (Lite)	CM5002000
No	2GB	16GB	CM5002016
No	2GB	32GB	CM5002032
No	2GB	64GB	CM5002064
No	4GB	0GB (Lite)	CM5004000
No	4GB	16GB	CM5004016
No	4GB	32GB	CM5004032
No	4GB	64GB	CM5004064
No	8GB	0GB (Lite)	CM5008000
No	8GB	16GB	CM5008016
No	8GB	32GB	CM5008032
No	8GB	64GB	CM5008064
No	16GB	0GB (Lite)	CM5016000
No	16GB	16GB	CM5016016
No	16GB	32GB	CM5016032
No	16GB	64GB	CM5016064
Yes	2GB	0GB (Lite)	CM5102000
Yes	2GB	16GB	CM5102016
Yes	2GB	32GB	CM5102032
Yes	2GB	64GB	CM5102064
Yes	4GB	0GB (Lite)	CM5104000
Yes	4GB	16GB	CM5104016
Yes	4GB	32GB	CM5104032
Yes	4GB	64GB	CM5104064
Yes	8GB	0GB (Lite)	CM5108000
Yes	8GB	16GB	CM5108016
Yes	8GB	32GB	CM5108032
Yes	8GB	64GB	CM5108064
Yes	16GB	0GB (Lite)	CM5116000
Yes	16GB	16GB	CM5116016
Yes	16GB	32GB	CM5116032
Yes	16GB	64GB	CM5116064
