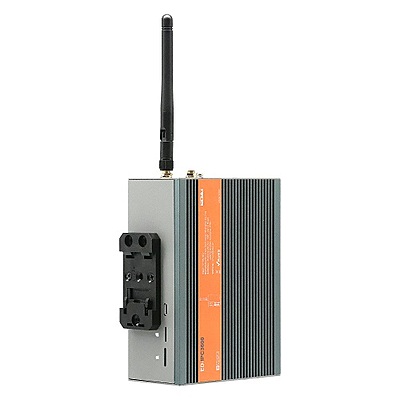

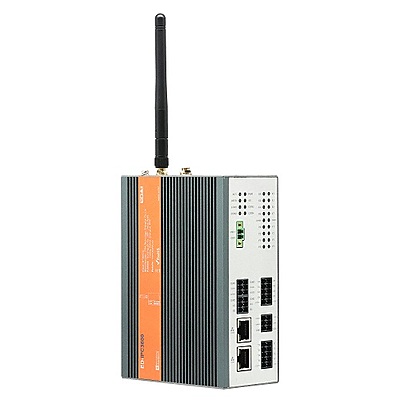

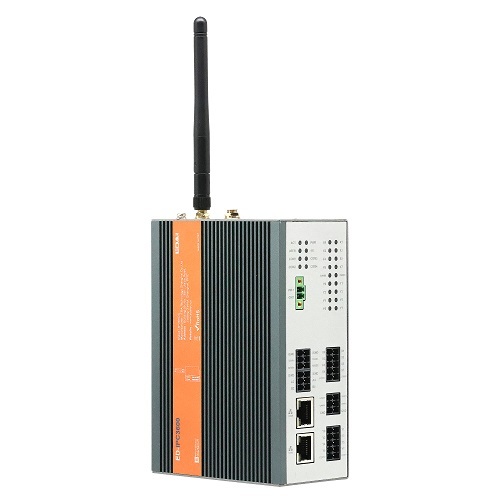

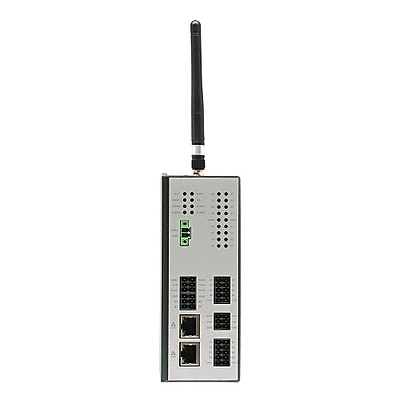

Industrial Computer based on Raspberry Pi CM5
ED-IPC3632-10216 is part of the EDATEC IPC3630 series, and has the following specific features:
- 2x RS485, 2x RS232
- WiFi & BT
- 2GB DDR
- 16GB eMMC
For general features, please refer to the Product Details section below. For other IPC3630 variants, see our EDATEC page.
£237.00
Additional information
Data Sheet/Product Brief
https://bcdatlantik.co.uk//bcd-assets/specsheets/ed-ipc3630-datasheet-en.pdf Expected delivery time
Manufacturer lead time - 4-6 weeks Available Offer
Product Details
General features of the EDATEC IPC3630 Series
- Broadcom BCM2712, quad core Arm Cortex-A76 (ARM v8) 64-bit SoC @ 2GHz
- Up to 16GB LPDDR4 RAM and 32GB eMMC storage, support Micro-SD Card and M.2 NVMe SSD storage expansion
- Dual Lans, 1 x Gigabit Ethernet and 1 x 100M Ethernet
- 4 x isolated RS232/RS485 with electrostatic and surge protection
- 2 x isolated CAN with led indicator, support CAN 2.0B standard
- 8 x isolated DI with led indicator, support AC input
- 8 x isolated DO with led indicator, support overcurrent protection
- 2.4GHz and 5GHz Wi-Fi, Bluetooth and 4G LTE
- Optional CODESYS Control for Raspberry Pi MC SL
- Wide voltage power input range of DC 9V~36V with reverse polarity protection, overvoltage protection and overcurrent protection
- Integrated supercapacitor backup power (optional), RTC, Watch Dog, EEPROM and encryption chip
- Wide temperature range of -25℃~60℃ for working environment
- High-quality metal case, compatible with DIN-rail installation

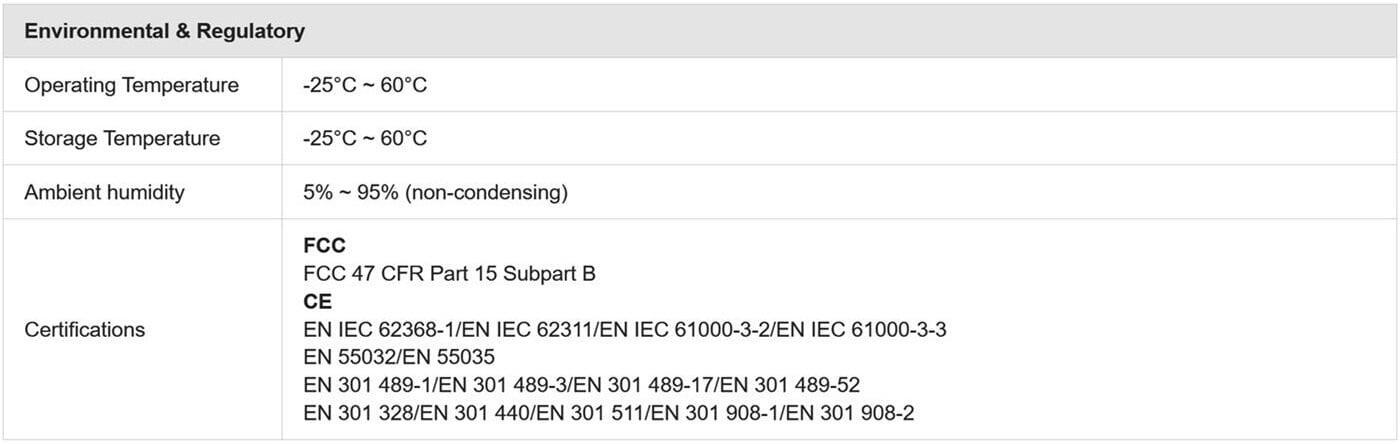

IPC3630 Specifications
