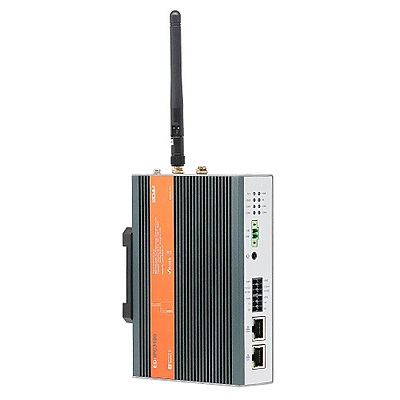

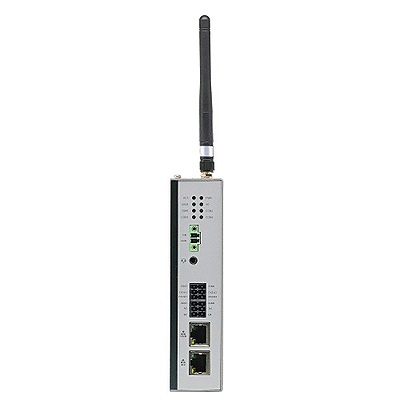

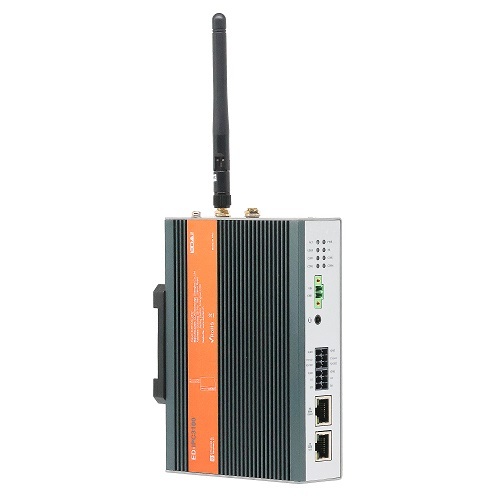

Industrial Computer based on Raspberry Pi CM5
ED-IPC3110-10216-S is part of the EDATEC IPC3100 series, and has the following specific features:
- 2x RS485, 2x RS232
- WiFi & BT
- 2GB DDR
- 16GB eMMC
- Super Capacitor Module
For general features, please refer to the Product Details section below. For other IPC3100 variants, see our EDATEC page.
£188.25
Additional information
Data Sheet/Product Brief
https://bcdatlantik.co.uk//bcd-assets/specsheets/ed-ipc3100-datasheet-en.pdf Expected delivery time
Manufacturer lead time - 4-6 weeks Available Offer
Product Details
General features of the EDATEC IPC3100 Series
- Broadcom BCM2712, quad core Cortex-A76 (ARM v8) 64-bit SoC @ 2GHz
- Up to 16GB LPDDR4 RAM and 32GB eMMC storage
- Support Micro SD card and M.2 NVMe SSD storage expansion
- Dual Lans, 1 x Gigabit Ethernet and 1 x 100M Ethernet
- 4 x isolated RS232/485 with electrostatic and surge protection
- 2.4GHz & 5GHz dual-band Wi-Fi, Bluetooth and 4G LTE
- Wide voltage power input range of DC 9V~36V with reverse polarity protection, overvoltage protection and overcurrent protection
- Integrated super capacitor (backup power supply, optional), RTC, Watch Dog, EEPROM and crypto authentication
- Wide temperature range of -25℃~60℃ for working environment

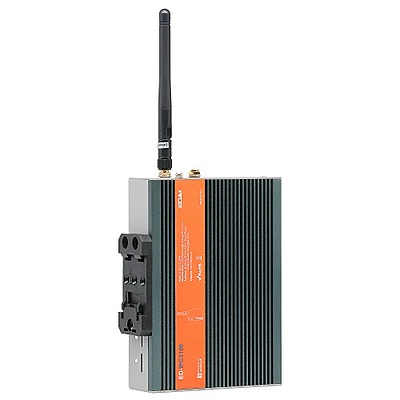

- High-quality metal case, compatible with DIN-rail installation
IPC3100 Specifications
