EB5G2 Edge AI Station Features
Premium performance with high AI computing power and multiple channel decoding
For intelligent edge computing, EB5G2 provides 48 TOPS high AI computing power and supports up to 24 channels of 1080P HD video decoding, which is suitable for multi-channel video streaming AI analysis scenarios such as building, community, school, factory, and retail.
Rich interfaces, multiple type of network for Edge computing scenarios
EB5G2 supports 5G, Wi-Fi, adaptive Gigabit Ethernet, RS232/CAN, RS485, USB3.0 and other interfaces. It also supports SD cards, M.2 SSD expansion, covering different intelligent edge application scenarios.
Industrial design for harsh conditions
Robust industrial level quality, fanless design, ultra-low power consumption, flexible deployment, plug and play, safe and reliable, easy to cope with any complex environment challenges.
Deeply optimized streaming media AI analysis service
With built-in deeply optimized streaming media AI analysis service TurboX Stream, EB5G2 features image zero copy, hardware acceleration, batch reasoning, algorithm sharing, and supports standard libraries such as SPL, ALG, and MBC, making AI algorithm deployment, verification, and delivery easy and fast.
Visual configuration of AI algorithms and applications
Provide WebUI visual management interface, which can localize equipment management, system management, OTA upgrade, algorithm configuration and other functions, support local view of alarm events, picture capture, video slice recording, and support rapid docking of third-party platforms.
Edge cloud collaboration, large-scale deployment, one-stop management
It supports IoT Harbor platform management, can configure edge cloud connection with one click, realize cloud device monitoring, OTA/algorithm upgrade, alarm reporting, etc., and also supports access management of mainstream shared cloud platforms such as AWS IoT Greengrass.
EB5G2 Edge AI Station Applications
- Smart City
- Smart Building
- Smart Retail
- Smart Factory
- Smart Transportation
- Smart Grid
EB5G2 Edge AI Station Specifications
Platform
OS: Linux / Android
SoC: Qualcomm® QCS8550
CPU: 1 GoldPlus 3.2GHz + (2+2) Gold 2.8GHz + 3 Sliver 2.0GHz
GPU: Adreno A740
NPU: Dual eNPU V3, 4 x HVX, HMX, INT8 48 TOPS/FP16 12 TOPS
Video Processor: 4K240/8K60 dec, 4K120/8K30 enc, AV1 decoder
System Memory
Storage
Flash: 128GB UFS3.1
Expansion: 1 x Micro SD Card slot, M.2 Con for 2280 SSD NVMe

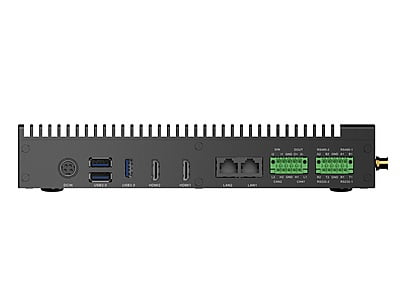

I/O Interface
HDMI: 2 x HDMI out, 1 x HDMI in
Ethernet: 2 x RJ45, Gigabit ethernet(10/100M/1000M)
USB: 3 x USB 3.0 Type A, 1 x USB3.1 Type C (support Video and OTG)
COM Port: 2 x RS485, 2 x RS232 default (2 x CAN optional with RS232)
DI/DO: 4 x DI(Photocoupler), 2 x DO (Switch: Short/OFF)
SIM: 1x Nano SIM card slot
Antenna: 5 x Antenna connector, 1x for WI-FI, 4x for 4G/5G module
Debug Port: 1 x Micro USB(for system debug), 1 x Micro USB(for 4G/5G module)
Wireless Connectivity
4G/5G:
- M.2 connector for 3042 4G / 3052 5G module, support PCIe/USB3.0
- Multimode support: 2G/3G/4G/5G NR sub-6
WiFi: Support Wi-Fi
GPS: GPS, Beidou and others
Power
DC Input: Input DC range support from 12V to 24V
Buttons & Indicators
Buttons: Power key, Reset key
LEDs: Power status, Wi-Fi status, 5G Status
Audio: 1 x Buzzer
Others
RTC Battery: CR2032 RTC Battery
Mechanical
Dimension: 235mm x 200mm x 42mm
Mount: Desktop, Wall mount
Environment
Operation Temperature: -20℃ ~ +60℃
Storage Temperature: -40℃ ~ +70℃
Storage Humidity: 10%~90%, non-condensing
