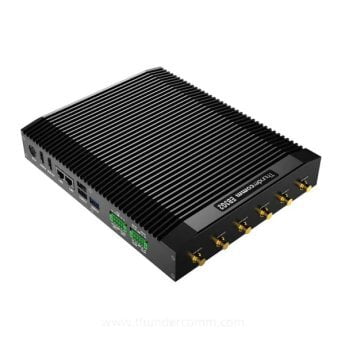

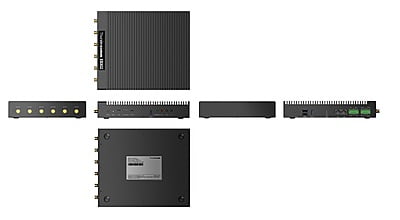

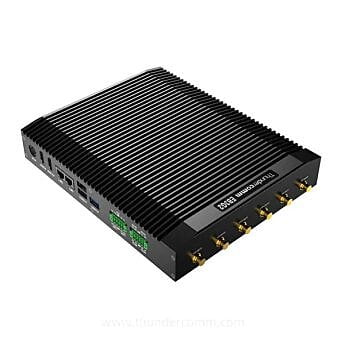

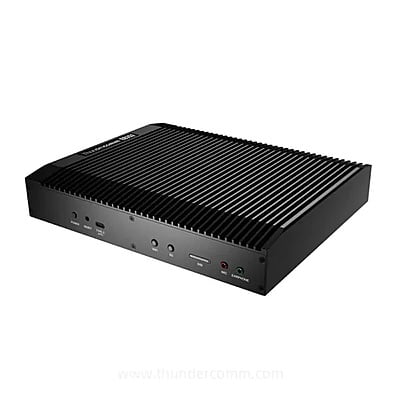

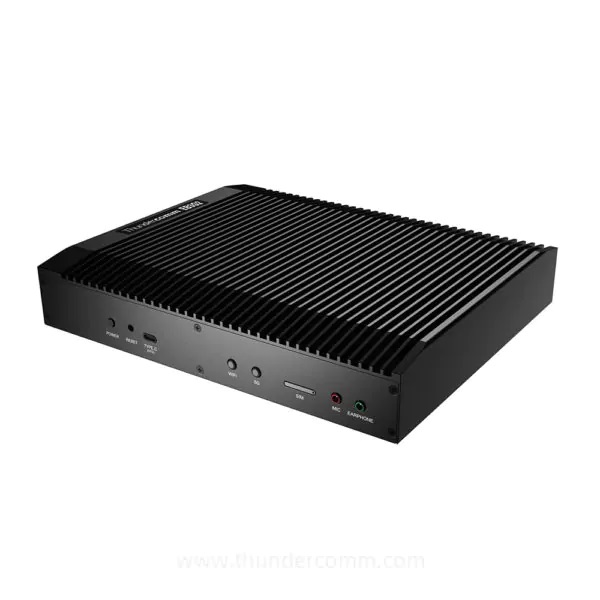

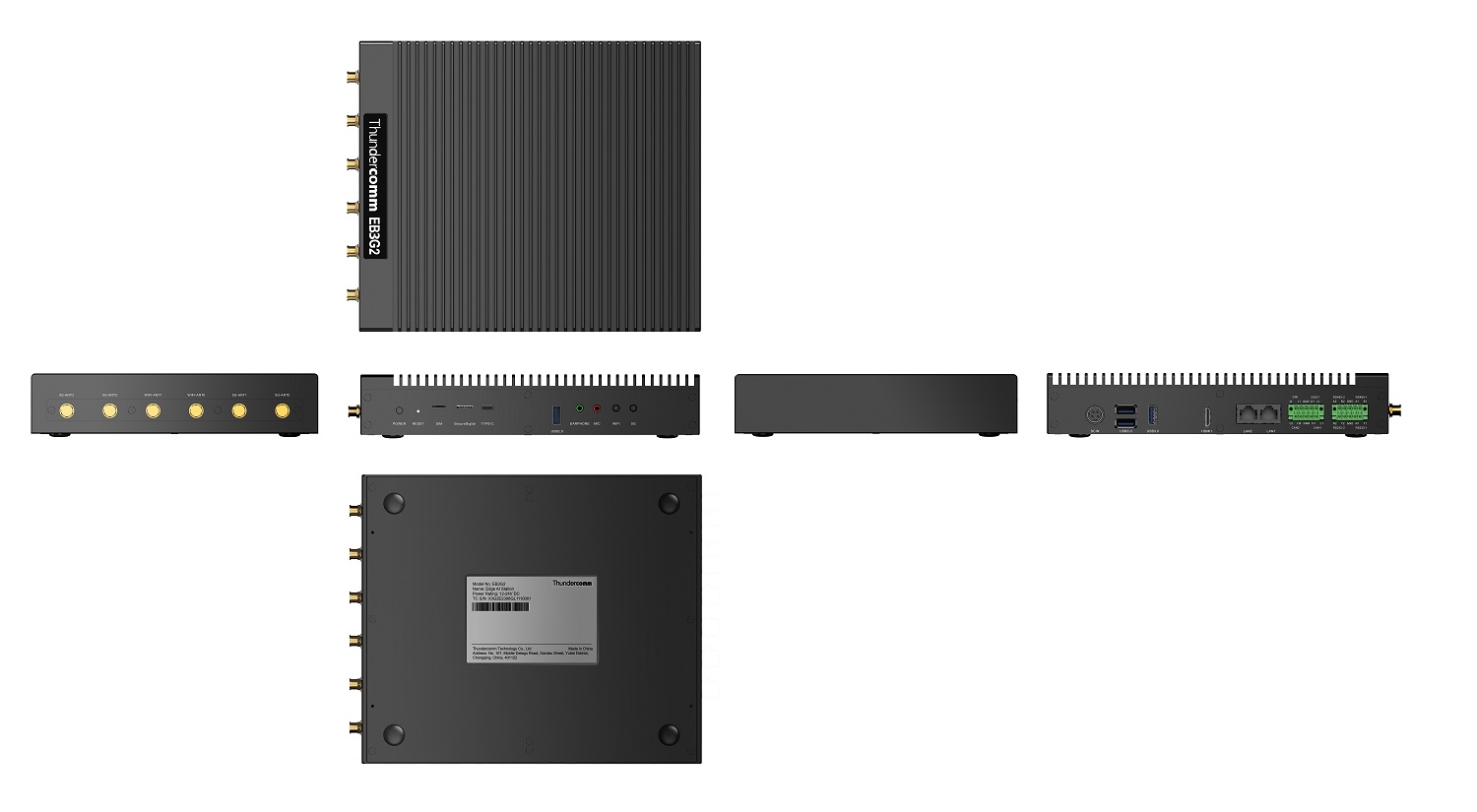

EB3G2 Edge AI Station Features
Premium performance with high AI computing power and multiple channel decoding
For intelligent edge computing, EB3G2 provides 14 TOPS high AI computing power and supports up to 8 channels of 1080P HD video decoding, which is suitable for multi-channel video streaming AI analysis scenarios such as building, community, school, factory, and retail.
Rich interfaces, multiple type of network for Edge computing scenarios
EB3G2 supports 5G, WiFi, adaptive Gigabit Ethernet, RS232, RS485, CAN, USB3.0 and other interfaces. It also supports SD cards, M.2 SSD/SATA HDD expansion, covering different intelligent edge application scenarios.
Industrial design for harsh conditions
Robust industrial level quality, fanless design, ultra-low power consumption, flexible deployment, plug and play, safe and reliable, easy to cope with any complex environment challenges.
Deeply optimized streaming media AI analysis service
With built-in deeply optimized streaming media AI analysis service TurboX Stream, EB3G2 features image zero copy, hardware acceleration, batch reasoning, algorithm sharing, and supports standard libraries such as SPL, ALG, and MBC, making AI algorithm deployment, verification, and delivery easy and fast.
Visual configuration of AI algorithms and applications
Provide WebUI visual management interface, which can localize equipment management, system management, OTA upgrade, algorithm configuration and other functions, support local view of alarm events, picture capture, video slice recording, and support rapid docking of third-party platforms
Edge cloud collaboration, large-scale deployment, one-stop management
It supports IoT Harbor platform management, can configure edge cloud connection with one click, realize cloud device monitoring, OTA/algorithm upgrade, alarm reporting, etc., and also supports access management of mainstream shared cloud platforms such as AWS IoT Greengrass
EB3G2 Edge AI Station Applications
- Smart City
- Smart Building
- Smart Retail
- Smart Factory
- Smart Transportation
- Smart Grid
EB3G2 Edge AI Station Specifications
Platform
OS: Linux / Android / Windows
SoC: Qualcomm® QCS6490
Qualcomm® Artificial Intelligence (AI) Engine 14 TOPS:
- CPU: 1Gold+ (2.7 GHz); Gold (3x 2.4 GHz); Silver (4x 1.9 GHz)
- GPU: Qualcomm® Adreno™ 643
Video Processor:
Video decode up to 4K60 for H.264/H.265/VP9
Video encode: Up to 4K30 for H.264/H.265
Video concurrency: 1080p60 decode and 1080p60 encode/ 4K30 decode + 1080p30 encode
System Memory
RAM Spec & Size: 8GB LPDDR4x
Display
HDMI: 1 x HDMI out, 1 x HDMI in, nx GMSL
Storage
Flash: 128GB UFS2.2
Expansion: SD card, M.2 2280 SSD NVMe, SATA
Peripheral I/O
USB: 4 x USB 3.0 Type A , 1 x USB3.1 Type C(OTG)
Ethernet: 2 x RJ45 Gigabit ethernet(10/100M/1000M)
COM Port: 2 x RS485, 2 x RS232(CAN selectable functions)
DI/DO: 4 x DI, 2 x DO
Wireless Connectivity
Wi-Fi: Support WiFi extension
5G: M.2 connector for 5G module, support PICIe/USB3.0 multimode support: 2G/3G/4G//5G NR sub-6
Antenna: 5 x Antenna connector, 1x for WiFi, 4 x for 5G(optional)
Audio
Audio: 1 x MIC, 1 x Earphone, 1 x buzzer
Power
DC Input: Input DC range support from 12V to 24V
Input & Indicators
Buttons: Power key, Reset key
LEDs: Power status, WiFi status, 5G Status
Environment
Operation Temperature: -20℃~+60℃
Storage Temperature: -20℃~+70℃
Storage Humidity: 10%~90%, non-condensing
