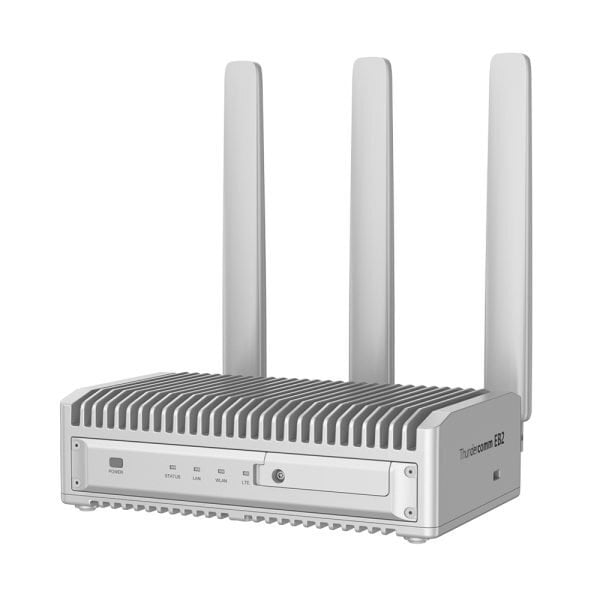

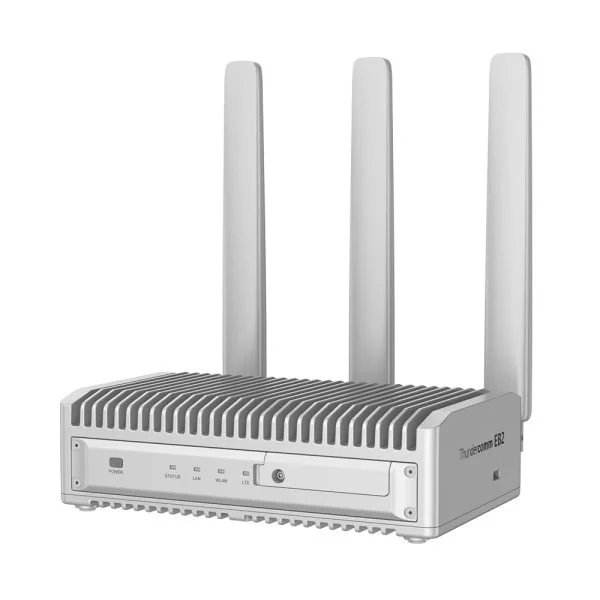

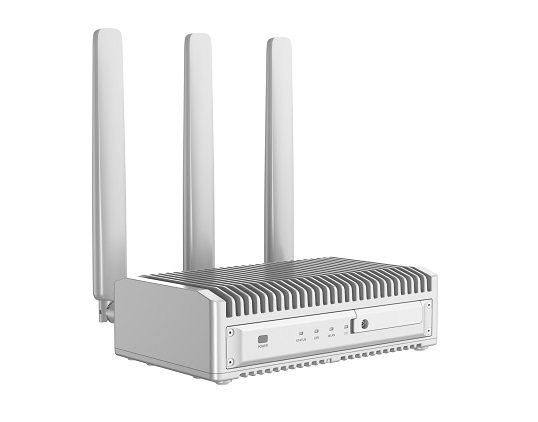

Thundercomm - TurboX EB2 Edge AI Station
£470.54
Thundercomm's EB2 Edge AI Box is a cost-effective edge computing device with 1.7 TOPS AI performance, 6 channels FHD video decoding. It can flexibly adapt to different network access requirements during deployment, including Gbits Ethernet, 4G and Wi-Fi. With the compact and industrial design, the TurboX EB2 Edge AI Box featuring rich interfaces and stable performance. Embedded with OSware.Edge, supports edge-cloud synergy, remote AI algorithm and application deployment, FOTA, which make it widely applied to the fields of applications like digital signage, smart retail, smart building, etc.
Data Sheet/Product Brief
https://bcdatlantik.co.uk//bcd-assets/specsheets/turbox-eb2-edge-ai-box-flyer.pdf Expected delivery time
6-8 weeks Choose Quantity
Product Details
EB2 Edge AI Station Features
- Support 1.7 TOPS AI performance, 6 channels FHD video decoding
- Rich interfaces, support Gbits ethernet, 4G and Wi-Fi networks
- Fanless design, support indoor/outdoor deployment
- Support Linux or Android operating system
- End-to-end security mechanism to ensure device security
- Device-edge-cloud synergy
EB2 Edge AI Station Applications
- Smart building
- Digital Signage
- Smart Retail
EB2 Edge AI Station Specifications
Platform
OS: Linux / Android Q
SoC: QCS610
Qualcomm® Artificial Intelligence (AI) Engine 1.7TOPS:
- CPU: 64-bit ARM V-8 compliant applications processor Qualcomm Kryo 460 CPU
- Kryo Gold: Dual high-performance cores 2.2 GHz
- Kryo Silver: Hexa low-power cores 1.8 GHz
- GPU: Qualcomm® Adreno™ GPU 612 with 64-bit addressing; 845 MHz
- DSP: Hexagon™ DSP with dual Qualcomm® Hexagon™ Vector eXtensions (HVX), 1.1 GHz
Video Processor:
- Multi-format codec up to 4K30 video encode. Multi-stream codec
- (4K30 (HEVC) + 720p30 (YUV) + 480p30 (VA -YUV))
Memory
RAM Spec & Size: 6GB LPDDR4x
Storage
ROM Spec & Size: 64GB UFS2.1
External Memory: 1 x MicroSD card

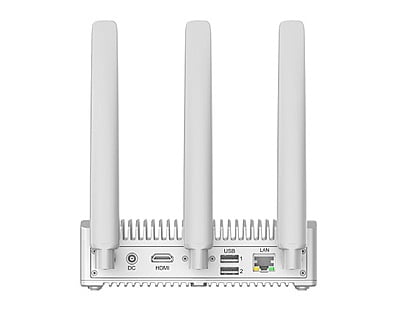

Peripheral I/F
USB: 2 x USB 3.1 Type-A
Video Out: 1 x HDMI out Type-A, 1080P@60FPS
MicroSD: 1 x MicroSD card Slot
Ethernet: 1 x RJ45 support Gigabit LAN
SIM: 1 x nano SIM cart slot
Wireless Connectivity
LTE: Cat4 up to 150Mbps (DL)/50Mbps (UL), B1/B3/B8/B18/B19/B26/B41
Wi-Fi: 1 x 802.11a/b/g/n/ac 2.4G/5GHz
External ANT
LTE: 1 x Main ANT ad 1x diversity ANT
Wi-Fi ANT: 1 x ANT 2.4G/5GHz
Power
Power type: DC 12V
Mechanical
Dimension: 169mmx110mmx50mm
Mount: Wall Mount, Desktop
Environment
Operation Temperature: -20℃~+60℃
Storage Temperature: -40℃~+70℃
Waterproof: IP40
Storage Humidity: 10%~90%, non-condensing
Certification
JATE/TELEC, CCC, RoHS
