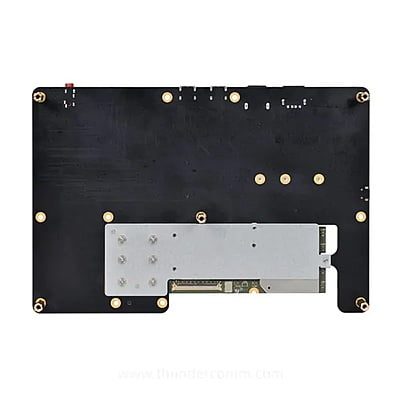

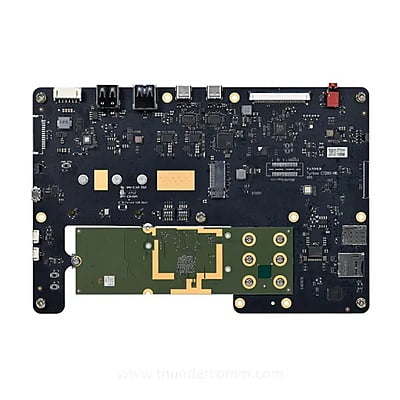

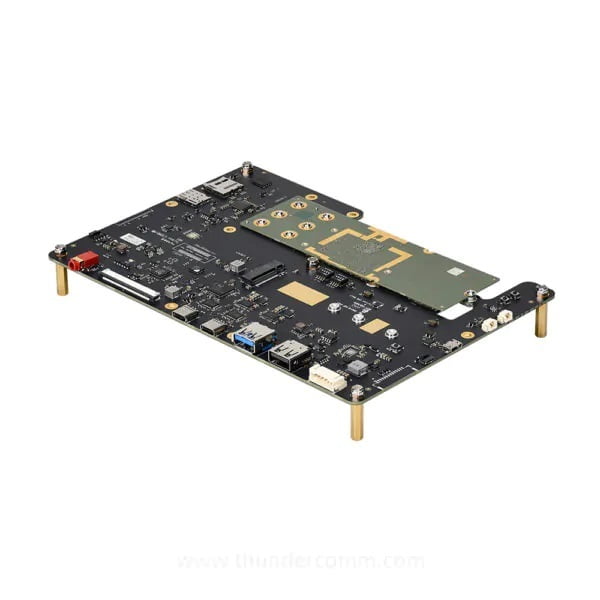

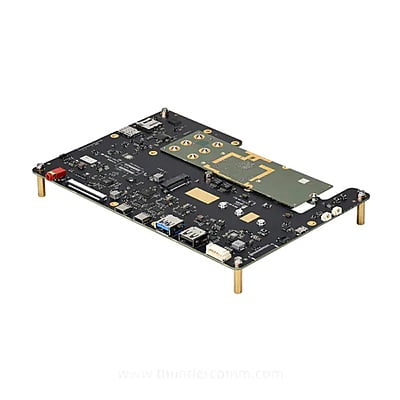

Thundercomm - TurboX CT7280 Development Kit
£1,848.08
Thundercomm CT7280 Windows on Snapdragon 5G Development Kit
Thundercomm TurboX CT7280 Development Kit is designed based on CT7280 QCARD. This is the latest IoT platform integrated with Snapdragon® 7c+ Gen 3 (SC7280) which is a 6 nm processor with superior performance and power efficiency, as well as high AI capability (8 TOPS).
Expected delivery time
Not all of our products are held in our local warehouse. After placing an order we will contact you with a proposed delivery date. If you would like to know the status before placing an order, please contact us. Choose Quantity
Product Details
Thundercomm TurboX CT7280 Development Kit is designed based on CT7280 QCARD. This is the latest IoT platform integrated with Snapdragon® 7c+ Gen 3 (SC7280) which is a 6 nm processor with superior performance and power efficiency, as well as high AI capability (8 TOPS). TurboX CT7280 support Wi-Fi 6E with DBS, Long Range Bluetooth and optional 5G NR connection capabilities. It also has a rich set of peripheral interfaces, including both USB 3.1 and USB 2.0 concurrency and PCIe. TurboX CT7280 supports Windows 11 and Windows 11 IOT. The CT7280 QCARD is a high performance Windows SOM for building PC, Tablet, Mini PC, Industrial PC , POS, providing customers with hardware interfaces and software SDK to validate functions and build the prototype quickly.
TurboX CT7280 Development Kit Applications
- PC
- Tablet
- Mini PC
- Industrial PC
- POS
Specifications
- Platform: Snapdragon® 7c+ Gen 3 (SC7280)
- Camera Interfaces: Spectra ISP 3x 22MP, 5x CSI
- Display Interfaces:
- Primary: FHD+ @ 144 DSI or eDP1.4
- External:4K @60 DSC v1.2DP over USB3
- Audio Interfaces:
- 3× DMICS
- 1× Headset
- 1× I2S
- Keypad Interfaces: IT8987
- USB Interfaces:
- 1× USB3.1 Gen 1,
- 1× USB2.0
- PCIe Interfaces: 2×PCIe Gen3 (3 lanes)
- WLAN Interfaces: WLAN 2×2
- Connectivity: 5G NR Sub-6G + LTE (optional)
- Power Interfaces: DP Over Type-C
- Other Interfaces:
- 1× I2C
- 1× SPI
- 1× UART
- 1× JTAG
- Dimensions: 200mm × 135mm
- OS Support: Windows11 / Windows 11 IOT
