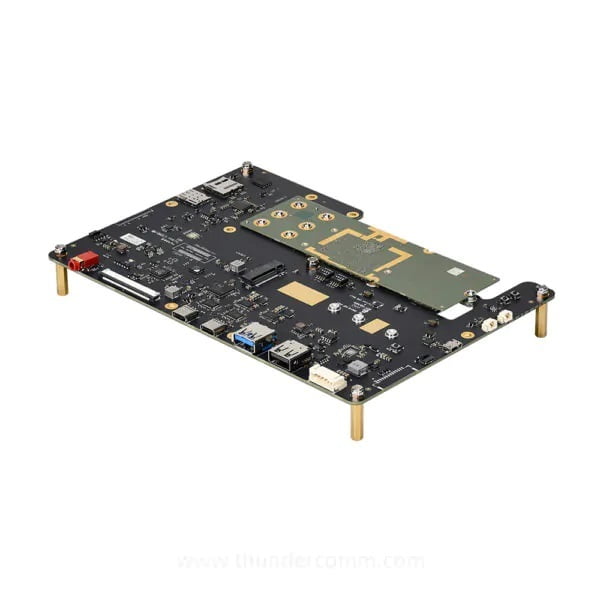

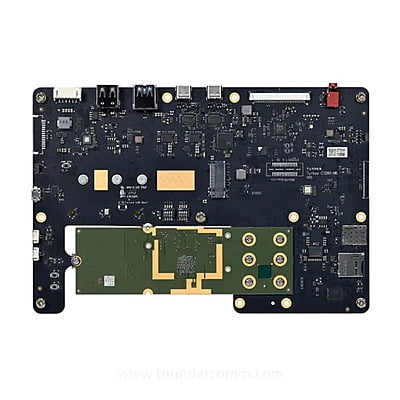

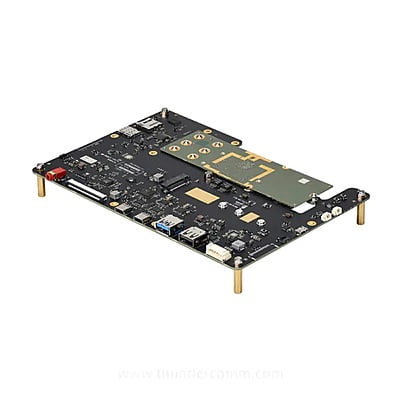

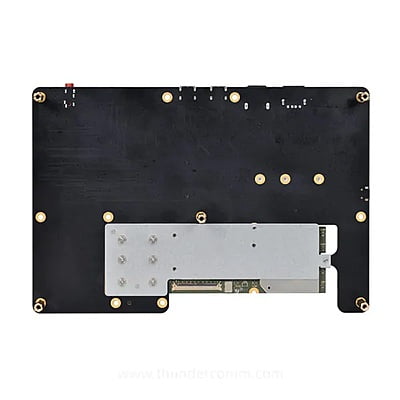

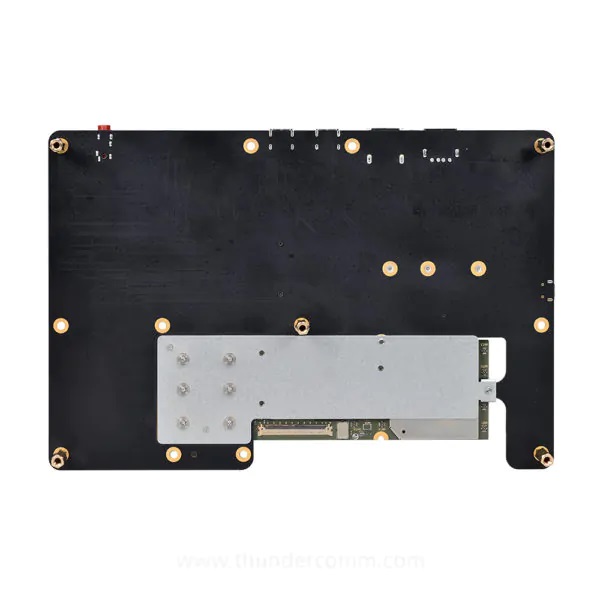

Thundercomm TurboX CT7280 Development Kit is designed based on CT7280 QCARD. This is the latest IoT platform integrated with Snapdragon® 7c+ Gen 3 (SC7280) which is a 6 nm processor with superior performance and power efficiency, as well as high AI capability (8 TOPS). TurboX CT7280 support Wi-Fi 6E with DBS, Long Range Bluetooth and optional 5G NR connection capabilities. It also has a rich set of peripheral interfaces, including both USB 3.1 and USB 2.0 concurrency and PCIe. TurboX CT7280 supports Windows 11 and Windows 11 IOT. The CT7280 QCARD is a high performance Windows SOM for building PC, Tablet, Mini PC, Industrial PC , POS, providing customers with hardware interfaces and software SDK to validate functions and build the prototype quickly.
TurboX CT7280 Development Kit Applications
- PC
- Tablet
- Mini PC
- Industrial PC
- POS
Specifications
- Platform: Snapdragon® 7c+ Gen 3 (SC7280)
- Camera Interfaces: Spectra ISP 3x 22MP, 5x CSI
- Display Interfaces:
- Primary: FHD+ @ 144 DSI or eDP1.4
- External:4K @60 DSC v1.2DP over USB3
- Audio Interfaces:
- Keypad Interfaces: IT8987
- USB Interfaces:
- 1× USB3.1 Gen 1,
- 1× USB2.0
- PCIe Interfaces: 2×PCIe Gen3 (3 lanes)
- WLAN Interfaces: WLAN 2×2
- Connectivity: 5G NR Sub-6G + LTE (optional)
- Power Interfaces: DP Over Type-C
- Other Interfaces:
- 1× I2C
- 1× SPI
- 1× UART
- 1× JTAG
- Dimensions: 200mm × 135mm
- OS Support: Windows11 / Windows 11 IOT
