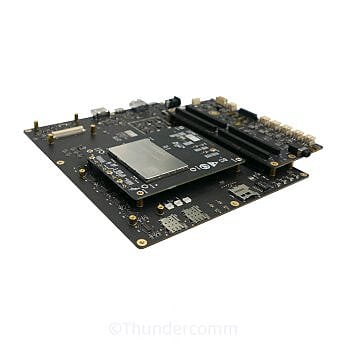

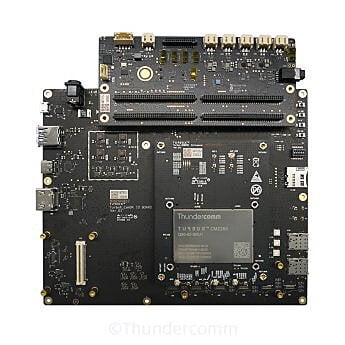

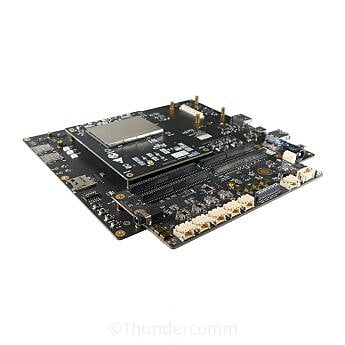

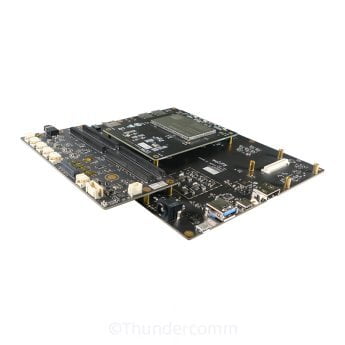

Thundercomm - TurboX™ CM2290 Development Kit
£646.23
The TurboX™ CM2290 Development Kit is designed based on the pin2pin compatible SOMs: C2290/CM2290. It has rich interfaces such as: HDMi In/Out, Ethernet, USB Type-C and expansion connectors which can help customers validate the function and build the prototype quickly.
Expected delivery time
Not all of our products are held in our local warehouse. After placing an order we will contact you with a proposed delivery date. If you would like to know the status before placing an order, please contact us. Choose Quantity
Product Details
The TurboX™ CM2290 Development Kit is designed based on the pin2pin compatible SOMs: C2290/CM2290. This is the next generation entry-tier IoT platform based on the Qualcomm® Snapdragon™ processor. CM2290 is with LTE modem while C2290 is Wi-Fi based SOM. CM2290/C2290 can support the development of smart POS, video doorbell, security panel, household cleaning robotics, dash cameras, handheld PAD, etc. It can support both Android and Linux OS. Its rich hardware interfaces and software SDK can help customers validate the function and build the prototype quickly.
CM2290 Development Kit Main Components
- Main IO board: functioning together with various SOMs, the board supports multiple interfaces to connect LCD panels, camera modules, SD cards, SIM cards, and USB devices, as well as on-board UART debug port, buttons, LED, etc.
- Interposer board: functioning together with CM2290/C2290 SOM, the board can support multiple RF antenna ports.
- Sensor board: the board features audio interface, A+G sensor, M sensor, barometer sensor, ALS+PRO sensor, NFC (Near Field Communication) sensor. Many other interfaces are reserved for future versions.
- Camera with FPC (OV13B10)
- LTE signal-receiving antenna (x2)
- Wi-Fi/BT antenna
- GPS antenna
CM2290 Development Kit Applications
- Dash Camera
- Surveillance Camera
- POS
- Digital Signage
- Vending Machine
Specifications
Platform
- CM2290/C2290 SOM
(These SOMs are pin2pin compatible and share the same carrier board)
Camera Interfaces
- Dual 14-bit ISP,2 x MIPI-CSI 4lane Connectors
- 1 x OV13B10 Camera
Display Interfaces
- 1 x 5.0“ TFT-LCD with 4L-MIPI DSI D-PHY
- 1 x HDMI Out
Audio Interfaces
- 1 x 3.5mm headset
- 4 x Digital Mics
- 1 x Line out with PA
- 1 x EAR out with PA
Other Interfaces
- 1 x USB 3.1 Type C;
- 1 x Micro USB(For UART Debug)
- 2 x SIM Card; 1 x PWM; 1 x SD card;
- 1 x RTC; 1 x Battery Connector
- 1 x NFC; 1 x CAN; 1 x UART (for RS232/RS485)
- 1 x ALS/PROXIMITY SENSOR; 1 x ACCELEROMETER+GYRO Sensor;
- 1 x Magnetic Sensor; 1 x Pressure Sensor;
- 2 x LTE Antennas; 1 x Wifi Antenna; 1 x GNSS Antenna
Dimension
- 185 x 150 mm
OS Support
- Android 11
- Linux
