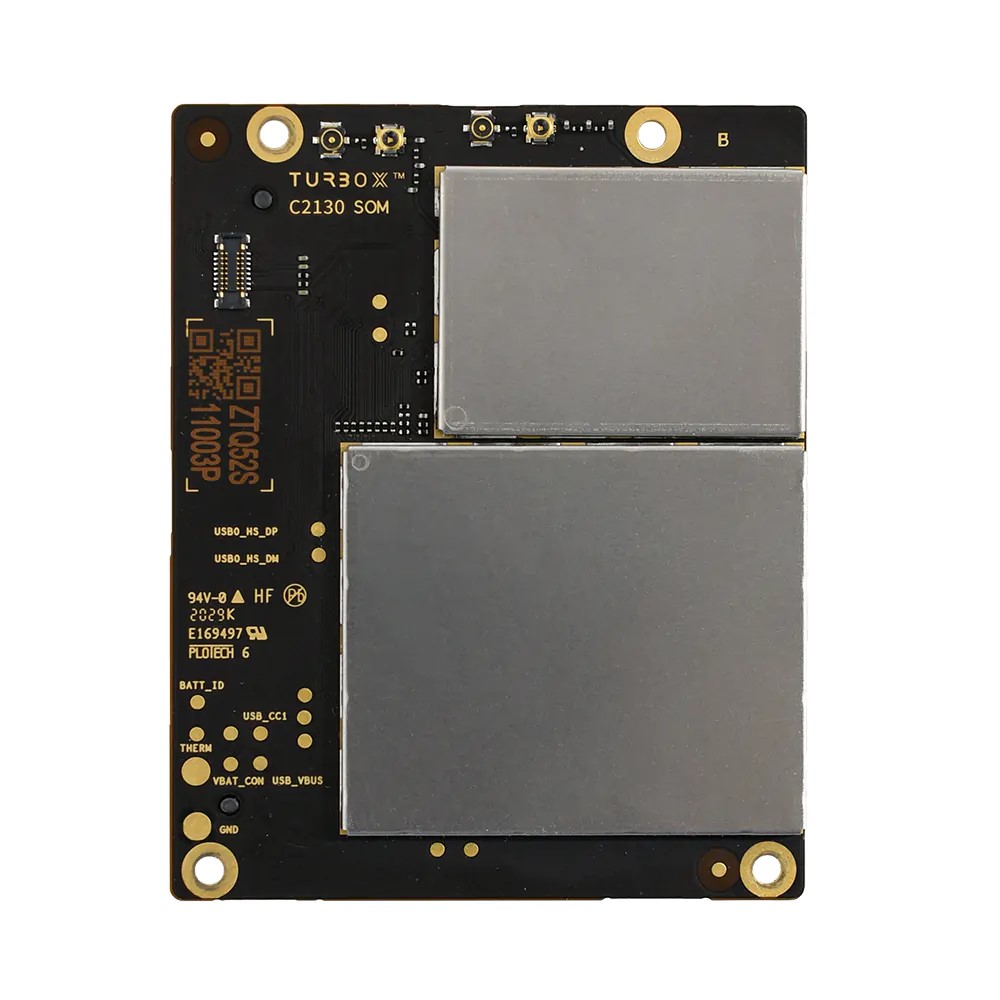

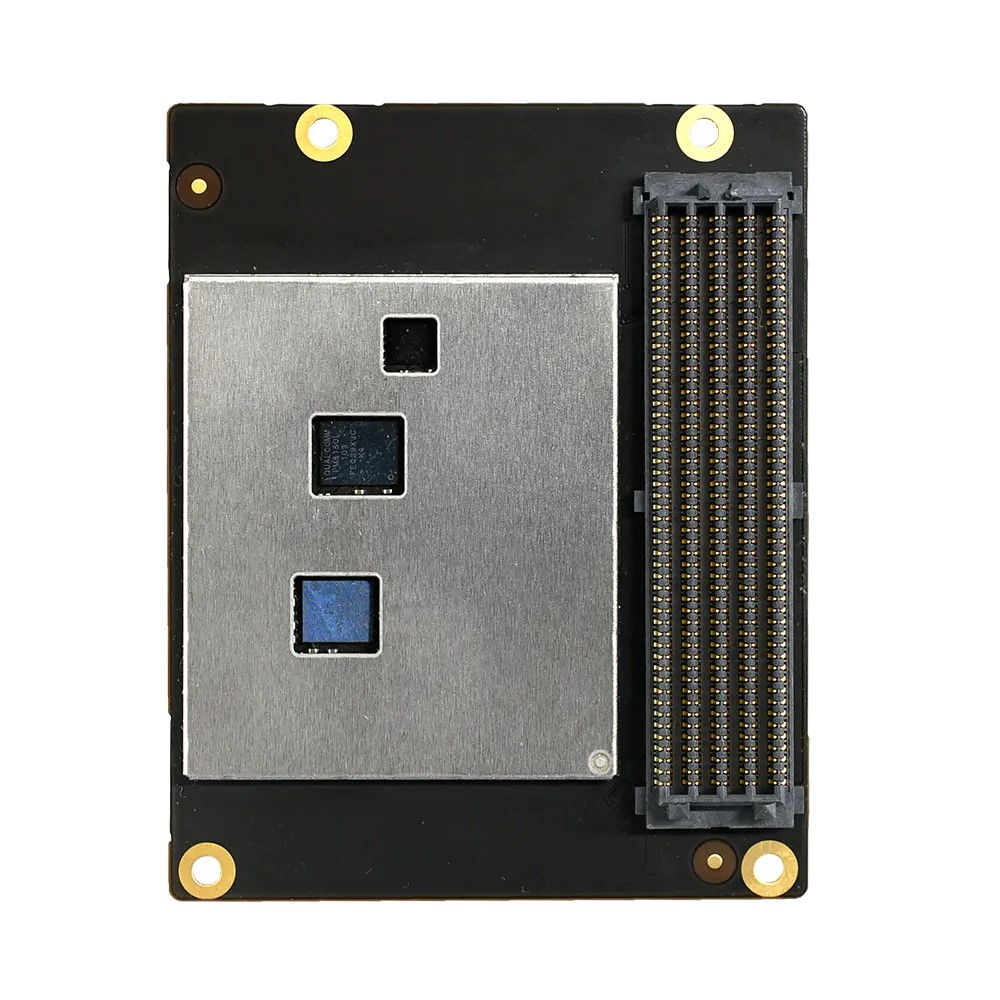

Thundercomm C2130 SoM is a small size (45mm x 56mm), production ready, pre-certified (CE, FCC, ROHS) module, powered by 7nm Qualcomm Snapdragon premium-tier processor SXR2130, supports SA/NSA dual mode 5G network with Thundercomm T55 module via PCIE interface. C2130 SoM is suitable for high performance, low power consumption, robotics or XR device. It provides pre-tested HW and SW OS/BSP, rich interfaces and valid AVLS, and reference IO board, which can speed your product development.
Specifications
- Platform:
- Snapdragon™ SXR2130
- Qualcomm® Kryo™ 585
- Qualcomm® Adreno™ 650 GPU, Adreno 665 VPU, Adreno 995 DPU
- Qualcomm® Hexagon™ DSP with quad HVX
- Qualcomm® Spectra™ 480 image processing
- Memory: 8GB LPDDR5(POP) + 128G UFS
- Connectivity: WiFi/BT: QCA6391 (802.11 a/b/g/n/ac/ax, 2x2Mino, BT5.1)
- Encode: 8K@30fps (H.264/H.265/VP8)
- Decode: 8K@60fps (H.264/H.265/ VP8/VP9)
- Display Interfaces: 2x MIPI-DSI 4-lane；Support 5040*2160@60fps
- Camera Interfaces: 6x MIPI-CSI, 4-lane,(2.5 Gbps per lane) supports CMOS and CCD sensors up to 64 MP sensors
- Other Interfaces: 1x Sound Wire, 2x RF connector for WiFi/BT, 2x USB 3.1, 2x SSC I/F for sensor, 2x PCIE, 1x UART, 1x SDC for micro-SD, 6x DMICs, 2x Speakers, GPIOs
- Operating Environment:
- Operation Temperature: -20℃ ~ +70℃
- Operation Humidity: 5% ~ 95%, non-condensing
- Voltage: 3.8V ~ 4.2V
- Dimension: 45 x 56 x 9mm B2B Connector
- OS Support: Android 10
