Thundercomm - TurboX CT7280 SOM
£303.75
Windows on Snapdragon 5G Development Platform

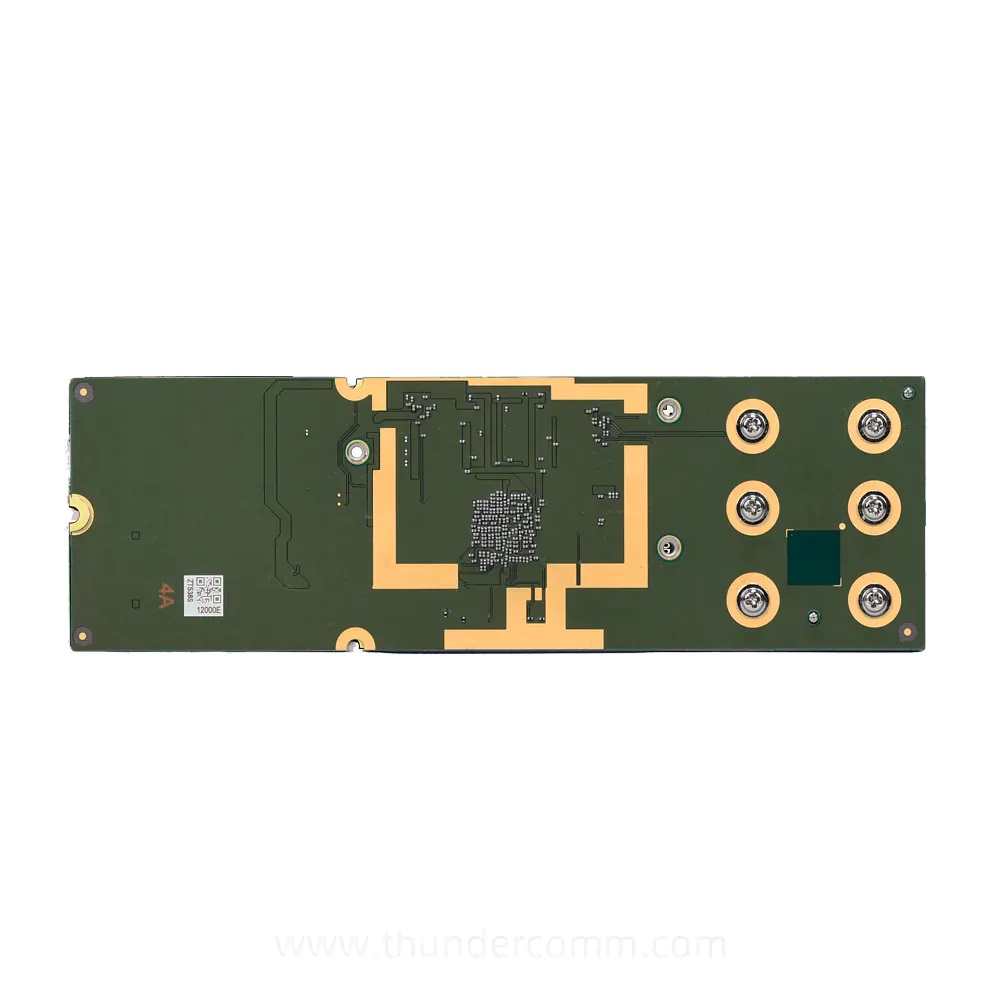

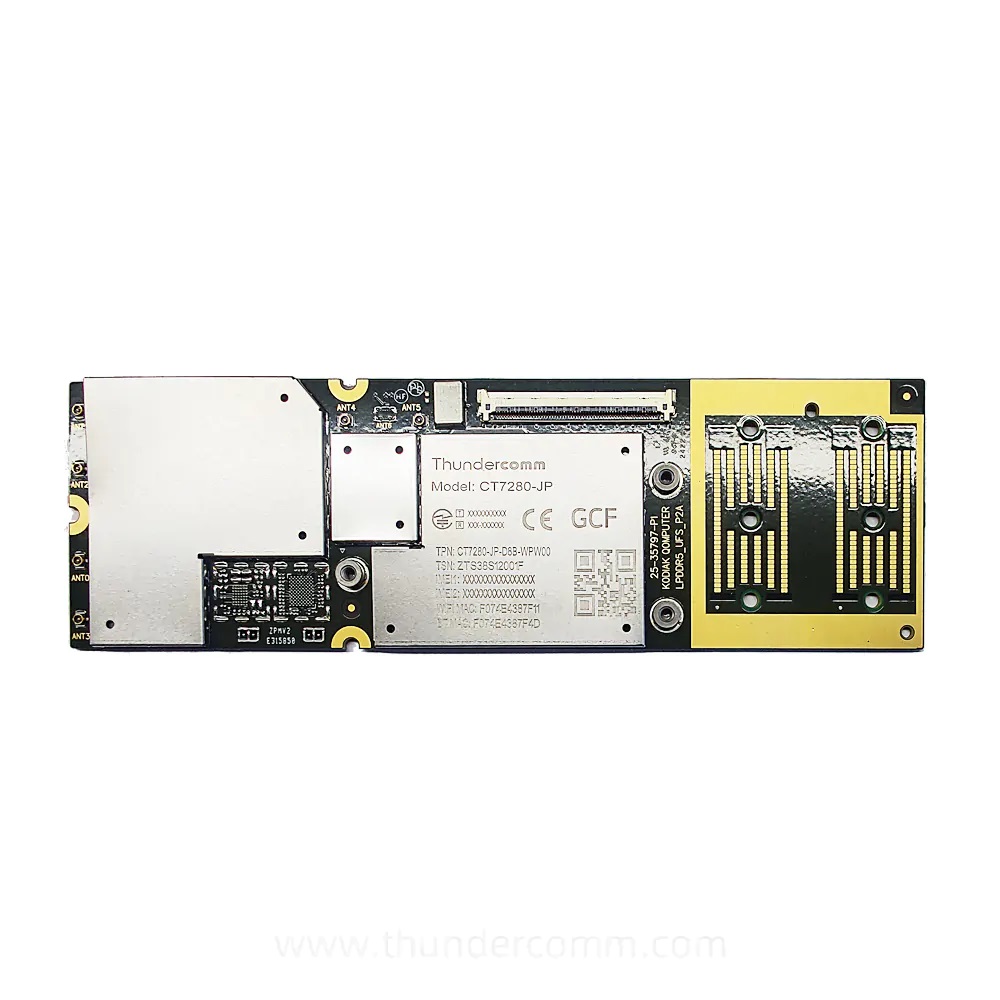

TurboX CT7280 SOM is a highly integrated System On Module (SOM) which is powered by premium-tier Snapdragon® 7c+ Gen 3 (SC7280) processor, a 6 nm processor with superior performance, power efficiency, and powerful computing (8 TOPS). TurboX CT7280 supports Windows 11 and Windows 11 IOT. The CT7280 SOM is a high performance Windows SOM for building PC, Tablet, Mini PC, Industrial PC, POS, providing customers with hardware interfaces and software SDK to validate functions and build the prototype quickly.
Data Sheet/Product Brief
https://bcdatlantik.co.uk//bcd-assets/specsheets/turbox_ct7280_som_product_brief.pdf Expected delivery time
Not all of our products are held in our local warehouse. After placing an order we will contact you with a proposed delivery date. If you would like to know the status before placing an order, please contact us. Volume Orders
Please contact us to discuss higher volume requirements Choose Quantity
Product Details
Applications
- PC
- Tablet
- Mini PC
- Industrial PC
- POS
Features
- Excellent Heat Dissipation (non-pop)
- Superior computing capability (～3.5 TOPS)
- Four MIPI-CSIs, compatible to support one C-PHY Camera
- Long life cycle: 2028
- Wi-Fi 6E；BT5.2 with Long Range Bluetooth
- Rich set of peripheral interfaces, e.g. PCIe 3.0, USB3.1, USB2.0
Specifications
Dimesion
- 129 x 40 x 3.14mm
Platform
- Snapdragon® 7c+ Gen 3 (SC7280)
- Kryo CPU 4x Gold @ 2.4GHz + 4x Silver @ 1.8GHz
- Qualcomm® Adreno 7c+ Gen 3
- Hexagon™ DSP with Hexagon Vector eXtensions
- (HVX) and Hexagon Tensor Accelerator:~6 TOPs int8
- LPI,ML HW accelerator , V66M 1.4GHz 2xSoundwire
Memory
- 8GB + 256GB UFS3.1
Connectivity
- 5G NR Sub-6GHz , LTE Cat.18,
- DC-HSPA+, CDMA, WCDMA, and GSM
- Wi-Fi 6/IEEE802.11ax/ac/a/b/g/n, Bluetooth® v5.0
Interface
- Spectra ISP 3x 22MP, 5x CSI
- Primary: FHD+ @ 144 DSI or eDP1.4
- External:4K @ 60 DSC v1.2DP over USB3
- 1x USB3.1 Gen 1, 1x USB2.0
- 2x PCIe Gen3 (3 lanes)
OS
- Windows 11 / Windows 11 IOT
