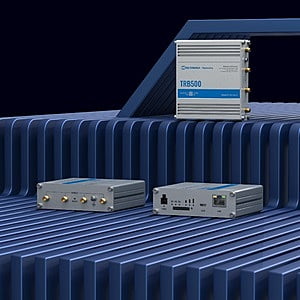

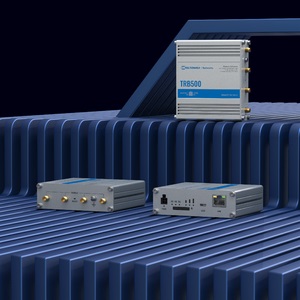

The TRB500 gateway is a compact-sized and energy-efficient industrial gateway with a Gigabit Ethernet interface and two configurable Inputs/Outputs, allowing high-level customization and implementation of various scenarios.
This device enables 5G network speeds with ultra-low latency for mission-critical infrastructures and high data throughput ensured by 4 external antennas allowing to utilize 4x4 MIMO.
TRB500 comes with a RutOS operating system that provides advanced security features and is congruent with Remote Management System (RMS) for easy remote control and monitoring capabilities.
Key features of TRB500
Hardware
- Mobile:
- 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2);
- 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL;
- 3G – 42 Mbps DL, 5.76Mbps UL
- CPU: Single core ARM Cortex A7, 1,5 GHz
- Flash Storage: 512 MB
- RAM: 256 MB

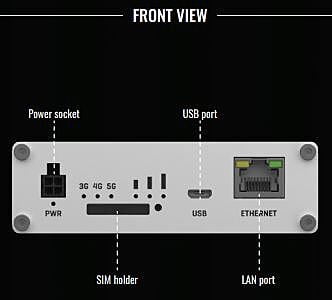

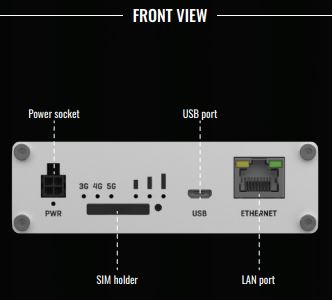

- Powering option: 4-pin power socket, 9-30 VDC
- SIM: 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V

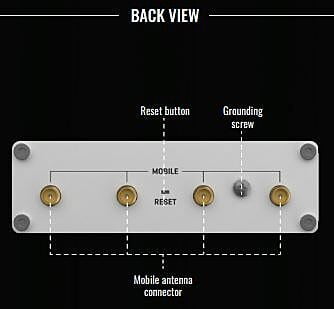

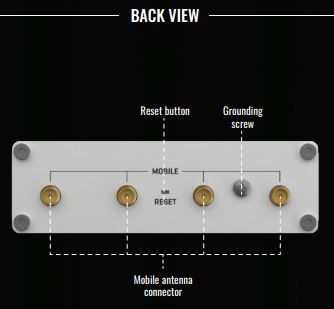

- Antenna connectors: 4 x SMA for Mobile
- Ethernet: 1x 10/100/1000 Mbps Ethernet port
- Inputs/Outputs: On 4-pin socket: 1 x Digital input, 1 x Digital open collector output
- Other: 1 x Micro USB slave, 1 x Grounding screw
- Status LEDs: 3 x connection type status LEDs, 3 x connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
- Operating temperature: -40° C to 75° C
- Housing: Aluminium housing, DIN rail (can be mounted on two sides), flat surface placement
- Dimensions (W x H x D): 100 x 30 x 93.4 mm
- Weight: 241g
Software
- Operating system: RutOS (OpenWrt based Linux OS)
- Mobile features: Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
- Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL)
- Network features: Routing, Failover, Firewall, DHCP, QoS, DDNS, Load Balancing, VoIP passthrough, Connection monitoring
- Monitoring and Management: WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
- VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, WireGuard, ZeroTier
- Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
- Security: Authentication, Pre-configured firewall rules, Attack prevention, Mobile quota control, WEB filter, Access control
