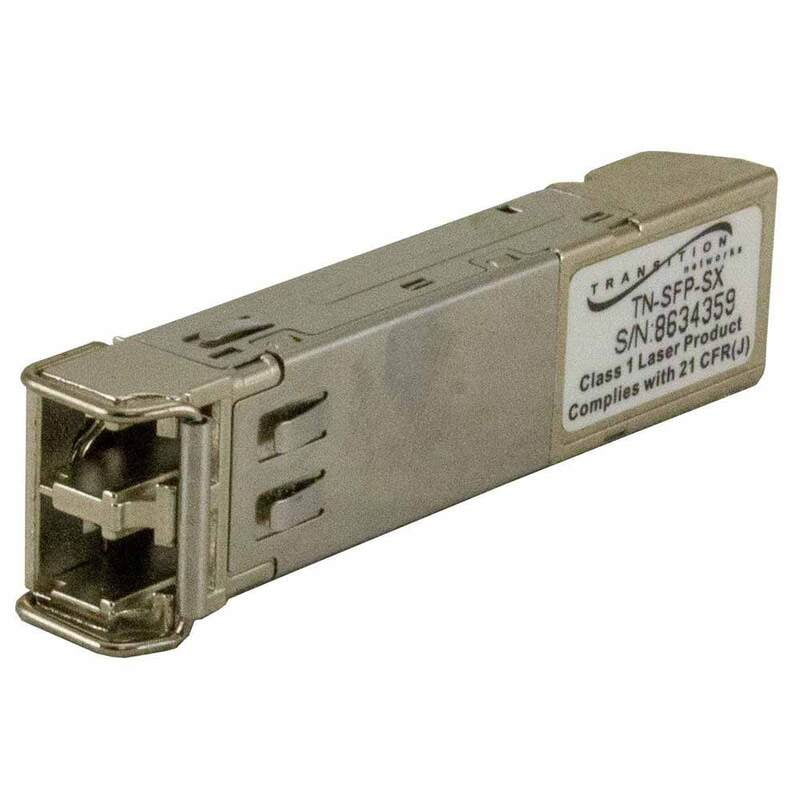

TN-SFP-SX 1000Base Fiber Channel SFP Module
£52.03
MSA compliant 1000Base Fiber Channel SFP module, 1000Base-SX Multimode (LC)
1000Base-SX 850nm multimode (LC) [62.5/125 μm: 220 m/722 ft.] [50/125 μm: 550 m/1804 ft.] Link Budget: 8.0 dB; UL Listed
Applications include: Gigabit Ethernet Switches & Routers, Fiber Channel Switch Infrastructure, xDSL Applications, and Metro Edge Switching.
Expected delivery time
Not all of our products are held in our local warehouse. After placing an order we will contact you with a proposed delivery date. If you would like to know the status before placing an order, please contact us. Volume Orders
Please contact us to discuss higher volume requirements Choose Quantity
Product Details
Features
- Hot-Pluggable SFP Footprint Optical Transceiver
- Digital Diagnostic Function
- Compliant with SFP Multi-Sourcing Agreement (MSA)
Specifications
- Standards:
- IEEE 802.3
- Dimensions:
- Width: 0.52” [13 mm]
- Depth: 2.18” [55 mm]
- Height: 0.33” [8 mm]
- Power Consumption: 0.66 Watts
- Power Input: 3.3V
- Environment:
- Operating: -10°C to 85°C
- Certifications: IEC-60825, FDA 21, CFR 1040.10 and 1040.11; UL Listed
- Warranty: Lifetime
Note: Per Cisco Systems’ literature, the Cisco switches with SFP slots do not accept modules other than Cisco’s own SFPs. The Cisco switch identifies the manufacturer ID along with the part number and blocks operations to this port for non-Cisco interfaces.
Transition Networks’ SFP units fully comply with Multi-Sourcing Agreement (MSA). This compliance allows Transition Networks’ SFP modules to be used on other MSA-compliant SFP platforms without any problems.
