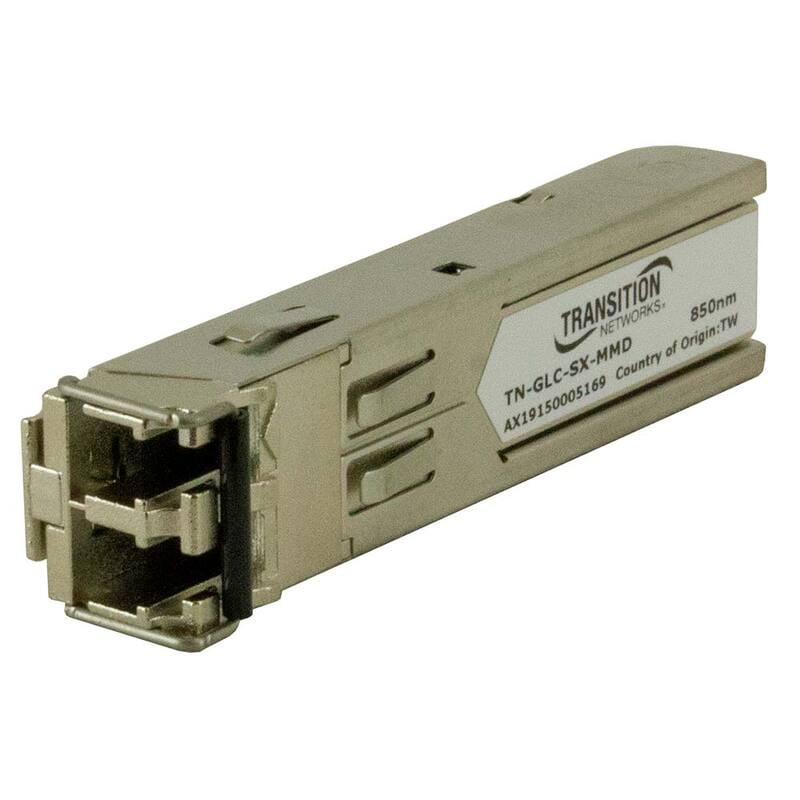

TN-GLC-SX-MMD Gigabit SFP Module
£50.14
Cisco compatible Gigabit small form-factor pluggable (SFP) module, 1000Base-SX Multimode (LC).
1000Base-SX 850nm multimode (LC) with DMI [62.5/125 μm: 220 m/722 ft.] [50/125 μm: 550 m/1804 ft.] Link Budget: 8.5 dB.
Expected delivery time
Not all of our products are held in our local warehouse. After placing an order we will contact you with a proposed delivery date. If you would like to know the status before placing an order, please contact us. Volume Orders
Please contact us to discuss higher volume requirements Choose Quantity
Product Details
The Lantronix TN-GLC-SX-MM Series small form factor pluggable (SFP) transceiver modules are designed to install in any SFP port allowing for 1000Base-SX interfaces to the network through the SFP connector. They are Cisco Compliant* and are designed for bi-directional serial-optical data communication such as Gigabit Ethernet or fiber channel at speeds up to 1.25 Gbps.
*Lantronix SFP modules fully comply with the Multi-Sourcing Agreement (MSA). This compliance allows our SFP modules to be used in all other MSA compliant SFP platforms. In addition, Lantronix SFP modules are also compliant with all Cisco SFP-based routers and switches, as well as Cisco’s IOS software. Lantronix SFP modules are not Cisco OEM brand modules.
Specifications
- Standards:
- IEEE 802.3
- Dimensions:
- Width: 0.52” [13 mm]
- Depth: 2.18” [55 mm]
- Height: 0.33” [8 mm]
- Power Consumption: 0.66 Watts
- Power Input: 3.3V
- Environment:
- Operating: 0°C to 70°C
- Storage: -40°C to 85°C
- Certifications: IEC-60825, FDA 21, CFR 1040.10 and 1040.11
- Warranty: Lifetime
