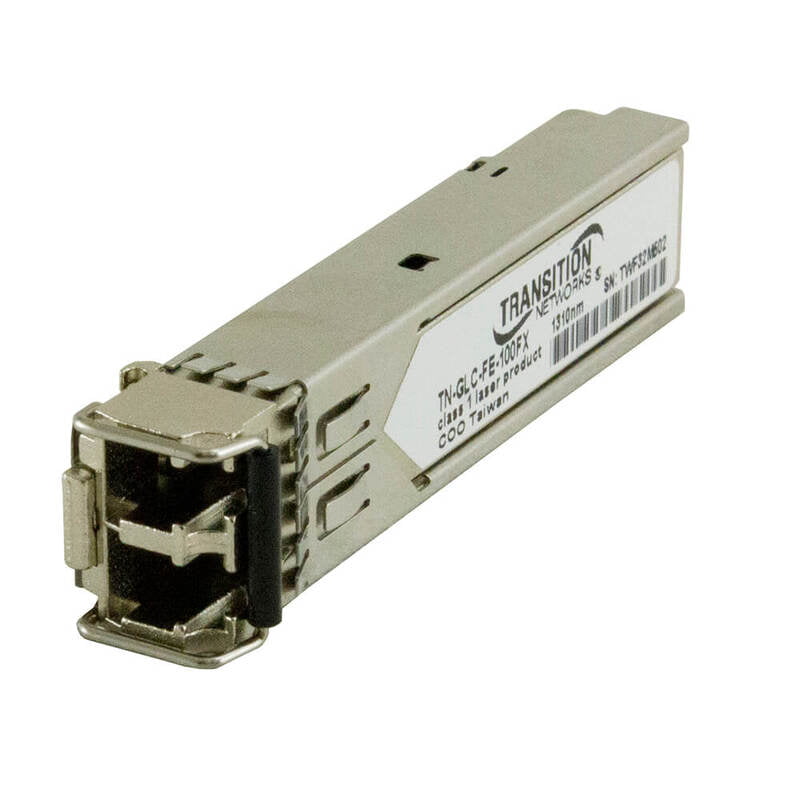

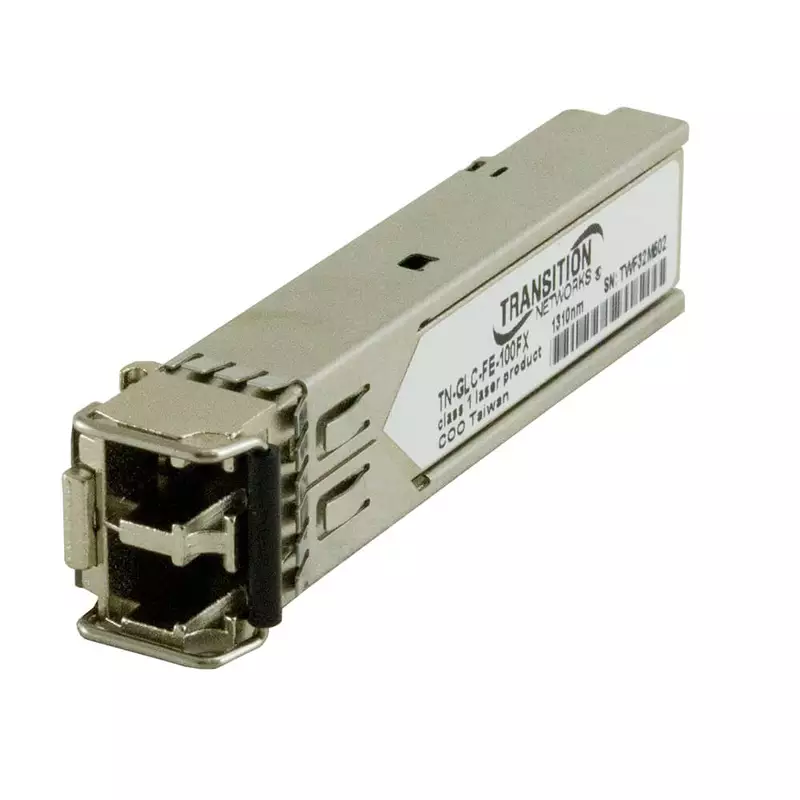

TN-GLC-FE-100FX 100Base SFP Module
£59.25
Cisco compatible 100Base small form-factor pluggable (SFP) module, 100Base-FX (LC)
100Base-FX 1300nm multimode (LC) [2 km/1.2 mi.] Link Budget: 8.5 dB; UL Listed
Applications include: Fast Ethernet Switches & Routers, Fiber Channel Switch Infrastructure, xDSL Applications, and Metro Edge Switching.
Expected delivery time
Not all of our products are held in our local warehouse. After placing an order we will contact you with a proposed delivery date. If you would like to know the status before placing an order, please contact us. Volume Orders
Please contact us to discuss higher volume requirements Choose Quantity
Product Details
The Lantronix TN-GLC-FE-100xX series small form factor pluggable (SFP) transceiver modules are designed to install in any SFP port allowing for 100Base-FX interfaces to the network through the SFP connector. They are Cisco Compliant* and are designed for bi-directional serial-optical data communication such as Fast Ethernet or OC3 at speeds up to 155 Mbps.
*Lantronix SFP modules fully comply with the Multi-Sourcing Agreement (MSA). This compliance allows our SFP modules to be used in all other MSA compliant SFP platforms. In addition, Lantronix SFP modules are also compliant with all Cisco SFP-based routers and switches, as well as Cisco’s IOS software. Lantronix SFP modules are not Cisco OEM brand modules.
Features
- Hot-Pluggable SFP Footprint Duplex LC Optical Transceiver
- Compliant with SFP Multi-Sourcing Agreement (MSA)
- Compliant with 100Base-FX
- Compliant with Intermediate-Reach SONET OC-3/SDH STM-1 (S-1.1)
- Can be used on Optical Line Converter xFMFF4040-100
Specifications
- Standards:
- IEEE 802.3
- IEEE 802.3ah
- Dimensions:
- Width: 0.52” [13 mm]
- Depth: 2.18” [55 mm]
- Height: 0.33” [8 mm]
- Power Consumption: 1.0 Watts
- Power Input: 3.3V
- Environment:
- Operating: 0°C to 70°C
- Storage: -40°C to 85°C
- Certifications: IEC-60825, FDA 21, CFR 1040.10 and 1040.11; UL Listed
- Warranty: Lifetime
