TurboX C865C Development Kit Highlights
Advance Imaging capability
Gigapixel speed ISP powered by top of the line Qualcomm® Spectra™ 480 ISP with ability to process 2 Gigapixels per second. This Gigapixel speed delivers new camera features including 8K video recording, 7 camera concurrency, capture 200-megapixel photos, and simultaneously capture 4K HDR video and 64 MP (with zero shutter lag) photos.
On-device intelligence powered by Qualcomm Artificial Intelligence (AI) Engine
The TurboX C865C Development Kit supports the leading 5th generation Qualcomm AI Engine with the brand-new Qualcomm Hexagon™ Tensor Accelerator, pushing 15 trillion operations per second(TOPS) with maximum efficiency to run complex AI and deep learning workloads at the Edge.
Advanced connectivity
Qualcomm® FastConnect™ 6800 Subsystem with Wi-Fi 6 (802.11ax), 802.11ac Wave 2, 802.11a/b/g/n.
Support for 5G including 5G mmWave and sub-6 GHz based of Qualcomm® Snapdragon™ X55 5G Modem-RF System via a companion module. Using 5G technology mission critical and wide scale deployments with low end-to-end latency is possible.
Heterogenous computing with efficient power budgets
The TurboX C865C Development Kit provides powerful heterogeneous computing capabilities using the octa core Qualcomm® Kryo™ 585 CPU, powerful Qualcomm® Adreno™ 650 GPU, multiple DSPs (compute, audio, and sensor) and ISPs. The TurboX C865C Development Kit is designed to support large industrial and enterprise robots as well as small battery-operated robots with challenging power and thermal dissipation requirements.
Flexible design options for commercialisation
In addition to a feature packed development kit, the platform offers a range of solutions for commercialisation from off-the-shelf System-on-Module (SoM) solutions to speed commercialisation, to the flexibility for chip-on-board designs for cost-optimisation at scale.
Advance Security
Qualcomm® Secure Processing Unit (SPU) offers vault-like security providing Secure Boot, Hardware root of trust , cryptographic accelerators, Qualcomm® Trusted Execution Environment and camera security. Qualcomm® Crypto Engine Core is FIPS 140-2 certified.
TurboX C865C Development Kit Applications
- Video Conference
- Industrial Robot
- Medical Device
- Industrial Drone
- Virtual Reality (VR) / Augmented Reality (AR)

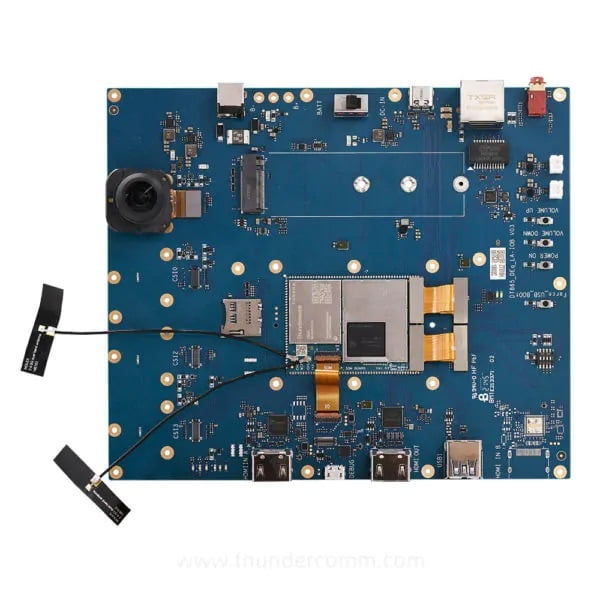

TurboX C865C Development Kit Main Components:
- DK Board: Functioning together with C865C SOM, the board supports multiple interfaces to connect camera module, SD card, HDMI OUT, HDMI IN, USB and M.2 (PCIE) device, as well as on-board UART debug port, buttons, LED, etc.
- Camera with FPC (IMX577)
- Antenna
- Power adaptor
TurboX C865C Development Kit Specifications
| Category | Description |
| SOM on board | TurboX C865C SOM |
| Display Interfaces | 1x DP 1.4, 1x HDMI Out (4K60) |
| Audio Interfaces | 3 x MICs
2 x Speaker out (WSA8815)
1 X HDMI In with Audio (Over I2S interface)
1 X HDMI Out with Audio (Over I2S interface) |
| Camera Interface | 3 x 4 Lanes D-PHY Camera (IMX577)
1 x 3 Lanes C-PHY Camera (Samsung S5KGW1SP03-FGX9) |
| General Interfaces on Mother Board | 1 x USB 3.1 Type C
1 x USB 3.1 Type A
1 x Micro USB(For Debug)
1 x SD card;
1 x 1000baseT Ethernet(Over PCIE 1 Lane)
1 x M.2 for NVME SSD Interface (Over PCIE 2 Lane)
1 x HDMI Out
1 x HDMI In
6 x LEDs
4 x Keys (Vol Up/Down, Force USB Boot, Power) |
| Power Supply | DC IN 12V 3A, Battery Interface, Fast charger(parallel charger) |
| Operating Environment | Operation Temperature: -25℃ ~ 75℃
Operation Humidity: 5%~95%, non-condensing |
| Dimension | 150mm x 178mm |
| OS Support | Android 10 |
