Thundercomm TurboX C405 Development Kit

£366.02
C405 Development Kit

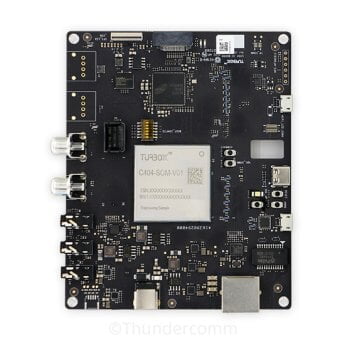

The TurboX C405 development kit is designed based on the Thundercomm latest C405 SOM (QCS405 chipset) which is dedicated for the smart audio platform. It can support far-field voice pick up technologies with keyword detection, multi-channel echo cancellation and beamforming, many voice platforms including Amazon Alexa Voice Services and Google Assistant.

With on-device dual DSP, AI enhancement and rich connectivity, customers can develop complex, feature rich, voice-supported smart speaker products.


Choose Quantity
+ Add to Cart
Product Details

TurboX C405 Development Kit Applications

  • AR/VR
  • Home Cinema
  • Smart Speaker
  • Sound Bar

TurboX C405 Development Kit Specifications


CategoryDescription
PlatformC405 SOM (QCS405 Chipset)
Display Interfaces1 x SPI for SPI Display
1 x HDMI OUT with ARC
Audio Interfaces1 x Headphone
1 x Line in
1 x Line out
1 x Speaker out
4 x PDM in for MIC ARRAY
5 x I2S for CSRA
2 x SPDIF
2 x OPTICAL Interfaces
Antenna Interfaces2 x RF coaxial connectors for WIFI
1 x RF coaxial connectors for BT
1 x RF coaxial connectors for FM
USB Interfaces1 x USB 3.0 Host Type C
1 x Micro USB 2.0
Other Interfaces1 x 6 Pin socket for NFC module;1 x Micro USB (Debug);
1 x JTAG;1 x Ethernet; 1 x TF Card;1 x 6-axis Sensor
Power Input1 x DC Jack
Operating EnvironmentOperation Temperature: -20℃ ~ 70℃
Operation Humidity: 5%~95%, non-condensing
Dimension120 x 120 mm
OS SupportLinux Embedded
