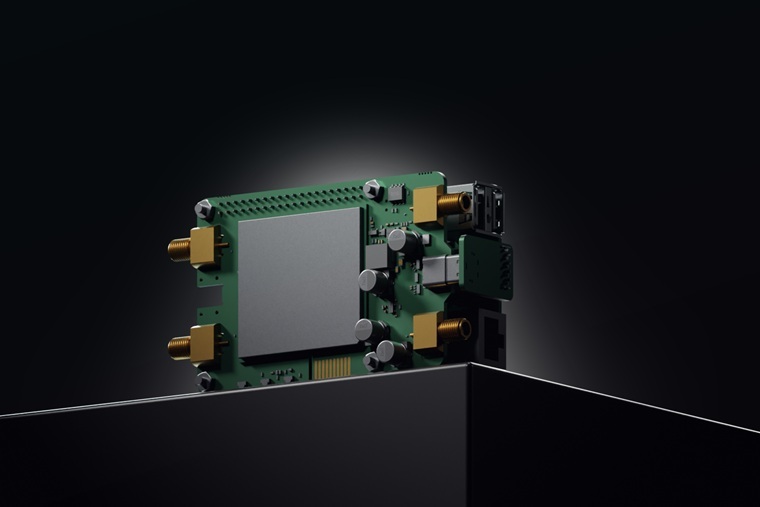

The Teltonika CALYX EBD021 is an industrial 4G/LTE Raspberry Pi HAT+ designed to add cellular connectivity to Raspberry Pi 4 and Raspberry Pi 5. It enables reliable LTE communication for IoT, edge computing, and embedded applications while integrating seamlessly via the 40-pin GPIO header.
- Optimal form factor - Mount seamlessly on Raspberry Pi 4/5
- GPIO modem control - Wake, reset, and manage the modem via Pi pins
- PCM enhanced audio - Enable clean, low-latency audio transfer
Please note, this is the 4G version. 5G Redcap and full-fledged 5G is also available - please contact us to enquire.
£27.00
Additional information
Data Sheet/Product Brief
https://bcdatlantik.co.uk//bcd-assets/specsheets/teltonika-calyx_datasheet_v101.pdf Expected delivery time
In stock. 2-4 working days Available Offer
Product Details
Teltonika's CALYX embedded Raspberry Pi HAT+ is purpose-built to provide seamless mobile internet to your embedded systems. Available in three variants – 4G Cat 4, 5G Redcap, and full-fledged 5G – CALYX provides cellular connection to your Raspberry Pi 4 or 5 wherever Wi-Fi or Ethernet are unavailable or unreliable.

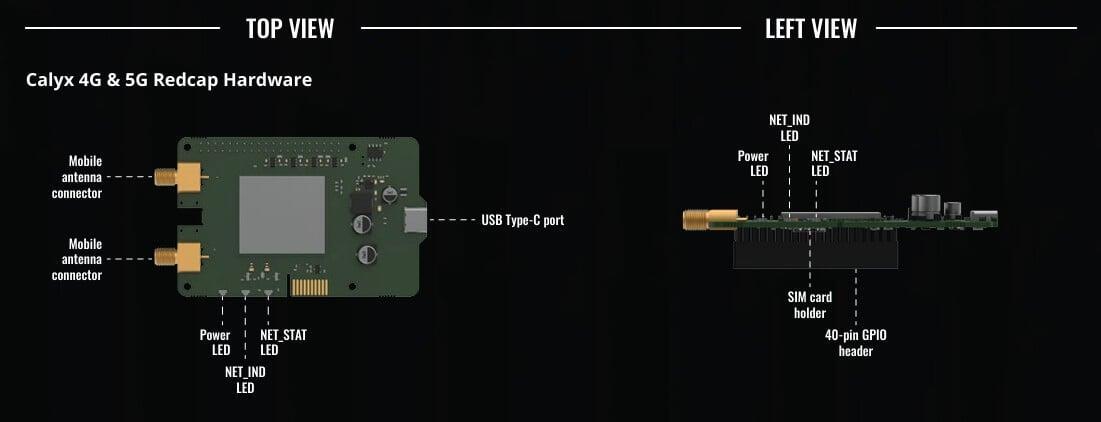

CALYX mounts directly on top of your SBC computer, saving space and ensuring clean integration. Equipped with features like GPIO modem control and PCM audio support, CALYX offers compact and feature-rich cellular expansion for integrators and developers.
Key features of the CALYX 4G / EBD021
| Powering options | Raspberry Pi 4/5 - 40 pin header - 5 VDC and 3.3 VDC; USB type C - 5 VDC |
| SIM | 1 x SIM slot (Nano SIM - 4FF), push-pull |
| Status LEDs | 1 x Power, NET IND, NET STAT |
| Operating temperature | -40 °C to 75 °C |
| Weight | 57 g |
| Mobile | 4G LTE-FDD (Cat 4) – 75Mbps DL, 50Mbps UL; LTE-TDD (Cat 4) – 65Mbps DL, 35Mbps UL; DC-HSPA+ – 42Mbps DL, 5.76Mbps UL; 3G – 384 kbps DL, 384 kbps UL, 2G EDGE – 236.8 kbps DL, 236.8 kbps UL, 2G GPRS – 85.6 kbps DL, 85.6 kbps UL |
| Antenna connectors | 2 x SMA for Mobile |
| Dimensions (W x H x D) | 56 x 23.11 x 95.48 mm |
