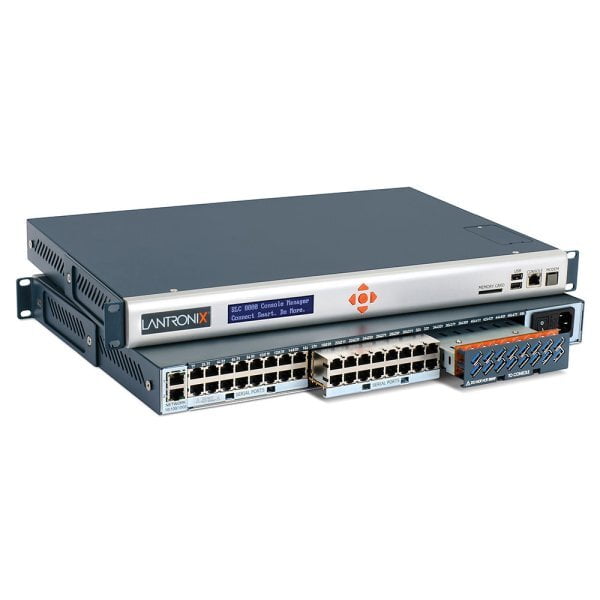

Lantronix SLC80322201S SLC8000 Advanced Console Manager, RJ45 32-Port, AC-Dual Supply

Lantronix 32-port Console Manager SLC8000 - SLC80322201S

The SLC 8000 Series is Lantronix's advanced console manager, built to keep critical infrastructure reachable and manageable under any condition. It supports 8, 16, 32, and 48 serial device ports with dual Gigabit Ethernet connectivity. LTE cellular failover via the Lantronix G520 gateway delivers resilient out-of-band access when the primary network path fails. Enterprise-grade security is built in across every layer, including SSH v2, TLS 1.3, FIPS 140-2 compliant cryptography, TACACS+, RADIUS, LDAP, and Active Directory integration. Manage every device and site at scale through Percepxion for Networking, Lantronix's centralised management and automation software, available as both an on-premises deployment for organisations that require full data sovereignty, and as a cloud-based SaaS platform for teams that need centralised visibility without the overhead of managing additional infrastructure.

Main features

Secure remote access for data centres, enterprise networks, and edge sites
8, 16, 32, and 48 port serial console server with Smart Out-of-Band
LTE cellular failover via Lantronix G520 gateway for resilient secondary connectivity
FIPS 140-2 compliant cryptography with SSH v2 and TLS 1.3 for enterprise-grade security
Manage at scale through Lantronix Percepxion for Networking, on-premises or SaaS

Lantronix SLC 8000 Series Specifications

Accessibility

In-Band (10/100/1000 Base – Ethernet) – Dual Ethernet and 1 Gb Dual fiber SFP ports with bonding and IP filtering
Out-of-Band dial-up (Local terminal, Internal Modem or USB Modem), cellular (with Lantronix G520 LTE gateway)

Security and Authentication

Browser independent HTML5 support for Java-free web based telnet/SSH remote access
Secure Shell (SSH v2, Public Key)
Secure Sockets Layer (TLS v1.0, TLS v1.1, TLS v1.2, TLS v1.3)
Packet filtering (firewall)
Per port user permissions
Configurable user rights and custom groups
Remote authentication: LDAP, RADIUS, Kerberos, TACACS+, Active Directory, NIS
Local username/password
FIPS 140-2 compliant cryptography (Certificate #2398)

Serial Device Port Access

Software reversible device port pins
Telnet/SSH to SLC command line
Telnet/SSH/RAW-TCP direct to IP address and port number
HTML5 based Java-free web based telnet/SSH remote access
Multiple concurrent Telnet/SSH sessions
Simultaneous access on the same port
No inadvertent “breaks” – Sun break-safe
Customizable multi-level user menus
USB port modem access
Automatic port-initiated connections to network host or neighboring port
Enable terminal login on any device port
SD card and USB

Data Capture and Notification

Port buffering – 256 KB per port
Port logging to local files, syslog, USB thumb drive, SD card, and NFS share
NFS files (simultaneous)
System event logs
Console event notification via email
Event string recognition (RegExp)

Management

Front panel keypad and LCD display for network setup
Quick setup and configuration web interface (SSL)
CLI setup script
Command line interface (Telnet, SSH, Web Telnet/SSH or direct serial)
SNMP (MIB II) compatible—v1, v2, v3, v3 over TLS, custom MIBs
Integrated power management support—Lantronix SLP® and Server Technology PDU
Integrated support for Sensorsoft devices
Diagnostics and port status counters

Performance monitoring utility
Packet generation utility
Network trace utility
Configuration audit log

Active user list display, port monitoring and timeout
Local subnet search for other SLC’s
Maximum of 352 concurrent users and maximum 15 users per device port at 9600 baudrate (typical)

Additional Protocols Supported

DHCP and BOOTP for dynamic IP address assignment
NTP for time synchronization
FTP, TFTP, SFTP, SCP client for file transfers
DNS for text-to-IP address name resolution
SSH, SSL, Telnet and UDP, PPP with PAP/CHAP, NFS and CIFS for connections in and out of the SLC
IPsec/VPN
RIP and RIPv2

Interfaces

Network: Dual 10/100/1000 Base-T RJ45 Ethernet, Dual 1 Gb fiber SFP
Devices: 8, 16, 32, 48 Serial, 300 to 230400 bps
Console: RS-232 (RJ45), 300 to 230400 bps
USB 2.0 High Speed, Full Speed, Low Speed
SD card slot: SD and SDHC

Operating System

Embedded Linux

Power Requirements

AC model input (single or dual): 100-240 VAC, 50 to 60 Hz
DC model input (dual): -20 to –72 VDC
Power consumption: Less than 30W

Certification

FCC Part 15, CE (EN55022, EN55024, EN60950), CSA, VCCI, UL/CUL, C-Tick, CB Scheme,NIST-certified implementation of AES (Advanced Encryption Standards) as specified by FIPS-197,IPv6 Ready, FIPS 140-2
