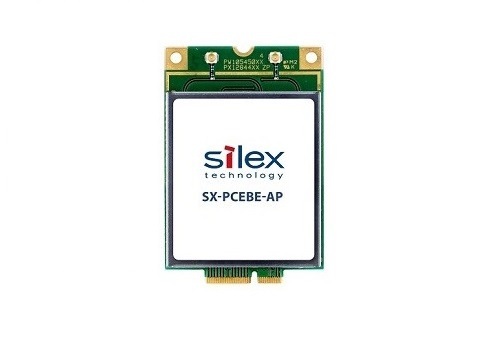

SX-PCEBE-AP Silex WiFi 7 Access Point Module
£102.49 - £108.24
SX-PCEBE-AP - Wireless LAN Access Point Module
802.11a/b/g/n/ac/ax/be module supporting wider, more stable communication
The SX-PCEBE-AP is a Wi-Fi 7 access point module supporting IEEE 802.11be (2.4GHz and 5GHz). Powered by the Qualcomm QCN9274-1 chipset, it’s ideal for Wi-Fi base stations, industrial access points, and gateways requiring large device connections. With Wi-Fi 7’s high speed and efficiency, its high-output design ensures stable wireless communication across wide areas.
Volume
Choose Quantity
Product Details
"Wi-Fi 7" for Stable Communications in the Future
In industrial IoT environments, the increasing use of data-intensive devices, such as video equipment, demands faster and more stable Wi-Fi networks. Wi-Fi 7's advanced features are designed to ensure reliable communication, even in environments with a mix of data, image, and video devices.
Key SX-PCEBE-AP features
Silex Optimized Design for Wider Range
This product features a high Tx Power-output design, extending radio wave reach and ensuring a wide communication range.
Maximum Simultaneous Client Connections
This product is a wireless LAN module for Wi-Fi gateways and access points, designed to support multiple client connections. Station modules cannot achieve this with SoftAP mode.
Modular Design and Dual Band Simultaneous Operation Saves Cost
The module supports simultaneous operation of two 2.4GHz and two 5GHz streams, reducing component costs.
Modular Certification. Faster Time to Market
This product will receive wireless certification in Japan, the U.S., Canada, Europe, and the U.K. We also offer support for antenna installation and optimization, ensuring a quick and reliable wireless integration.
SX-PCEBE-AP Specifications
| SKU | SX-PCEBE-AP |
|---|---|
| Chipset | QCN9274 |
| Host Interface | WLAN： PCI Express 3.0 |
| WLAN Specifications | IEEE 802.11a/b/g/n/ac/ax/be 2.4GHz：2×2、5GHz：2×2 (Simultaneous Operation) |
| Frequency | 2.4GHz & 5GHz |
| Channel Bandwidth | 2.4GHz ：20MHz、40MHz 5GHz ：20MHz、40MHz、80MHz、160MHz |
| Antenna Connector | MHF1 Connector：x2 |
| Operating Voltage | Main Power Supply: 3.3V、FEM Power Supply: 5.0V |
| Operating Environment | Temperature：-40 ～ 85℃ Humidity ：15 ～ 80％RH (No Condensation) |
| Storage Environment | Temperature：-40 ～ 85℃ Humidity ：15 ～ 80％RH (No Condensation) |
| Dimensions | 40.0mm × 60.0mm × 3.9mm |
| Package Type | M.2 Card Type Key E |
| Modular Certifications | USA, Canada, Europe, Japan |
| Recommended Antennas | TE Connectivity (2118907-8) |
| Wi-Fi Driver Support | Silex provides a fully tested, enhanced, and optimized version of Qualcomm's reference wireless LAN driver, ensuring smooth evaluation and easy porting to your environment. OS Support - Linux Basic Functionality * To use it, you need to obtain Wi-Fi Alliance certification separately. |
