SX-PCEAX is based on the QCN9072 chipset and supports tri-band with 802.11ax. It is ideal for access points, gateways, and routers in medical and industrial applications in dense environments.
Standard form factor reduces development and certification costs
The SX-PCEAX-AP Series modules’ standard-compliant full-height Mini PCIe form factor enables customers to easily integrate the module into existing designs. By simply swapping out the wireless module of an existing access point, you can seamlessly upgrade it to Wi-Fi 6/6E without the high development and certification costs.
Wi-Fi 6E (Tri-Band)

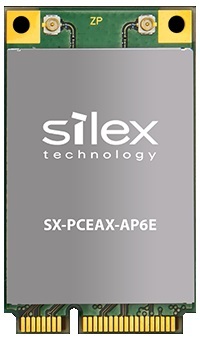

Add the 6GHz spectrum with SX-PCEAX-AP6E. Devices can operate in the 6 GHz band providing:
- Six times more capacity than 2.5 and 5 GHz bands
- Seven super wide 160 MHz channels
- Lower latency, less congestion
Multi-User Multiple Input Multiple Output (MU-MIMO)
Allows more downlink data to be transferred at once and enables an access point to concurrently transmit data to a larger number of devices.
Orthogonal Frequency Division Multiple Access (OFDMA)
OFDMA effectively shares channels to increase network efficiency and lower latency for both uplink and downlink traffic in high-demand and dense environments.
Designed for side-by-side use to easily achieve tri-band benefits (2.4GHz/5GHz/6GHz)
SX-PCEAX-AP and SX-PCEAX-AP6E Specifications
| Part no. | SX-PCEAX-AP | SX-PCEAX-AP6E |
|---|
| Chipset | QCN9072 | QCN9072 |
|---|
| Wi-Fi Band Frequency | 2.4GHz/5GHz | 6GHz |
|---|
| Host interface | PCI Express 3.0 | PCI Express 3.0 |
|---|
| WLAN | IEEE 802.11a/b/g/n/ac/ax (2x2) | IEEE 802.11ax (2x2) |
|---|
| Antenna | MHF Connector x2 | MHF Connector x2 |
|---|
| Operating Voltage | 3.3V | 3.3V |
|---|
| Operating Environment | Temperature: -40~+85°C
Humidity: 10~95%RH (no condensation) | Temperature: -40~+85°C
Humidity: 15~95%RH (no condensation) |
|---|
| Storage Environment | Temperature: -40~+90°C
Humidity: 10~95%RH (no condensation) | Temperature: -40~+90°C
Humidity: 10~95%RH (no condensation) |
|---|
| Dimensions | 29.85 x 50.80 x 4.55mm | 29.85 x 50.80 x 4.55mm |
|---|
| Package type | Mini PCI Express Card | Mini PCI Express Card |
|---|
| Certifications | JP, US, Canada, EU, UK | Contact us
|
|---|
