IM-100 Silex WiFi 6 + BT SoM with Enterprise Security for IoT applications
£15.81
Wi-Fi 6 plus Bluetooth Stand-alone System on Module with Enterprise Security for IoT Applications
Based on NXP's RW610, the IM-100 is a small, low-power wireless MCU with an integrated MCU and Wi-Fi® 6 + Bluetooth® Low Energy (LE) 5.4 radio. It provides premium wireless connectivity and offloads the host processor by accommodating data processing and other applications on the modules itself.
It is a full-featured 1x1 dual-band (2.4 GHz/5 GHz) 20 MHz Wi-Fi 6 (802.11ax) module bringing higher throughput, better network efficiency, lower latency, and improved range over previous generation Wi-Fi standards. The IM-100 uniquely offers an RNDIS driver, providing immediate wireless connectivity across Windows, Linux, and RTOS platforms.
Antenna options
Volume
Choose Quantity
Product Details
IM-100 Features & Benefits
Plug-and-play RNDIS enablement
Exclusively offering RNDIS enablement through a USB cable, the IM-100 provides immediate wireless connectivity across Windows, Linux, and RTOS platforms. This eliminates the need for additional driver development.
Enterprise-grade operation modes in firmware
Firmware includes support for the following operation modes. These functions help customers save time and development costs.
- Ethernet to Wi-Fi bridging: Add wireless connectivity to any device with an ethernet interface available by Silex's industry-proven ethernet to WLAN bridging function.
- RNDIS to Wi-Fi bridging: Silex is an exclusive NXP partner with RNDIS enablement through a USB cable. Customers can add wireless connectivity via USB interface for Windows OS-based products without any driver development. It supports the RNDIS function in the firmware.
- Serial to Wi-Fi bridging: Many legacy RS-232C-based devices can add wireless connectivity by integrating IM-100 via the serial interface.
Enterprise security
IM-100 supports TLS encryption protocols for secure communication. It has secure authentication methods like WPA/WPA3, Wi-Fi enterprise security, and Bluetooth LE secure connections.
Lower development costs and faster time to market
- The IM-100 can act as the main CPU, eliminating the need to install a separate CPU and reducing component costs for the customer.
- Has regulatory certifications for North America, Europe, and Japan. By designing the module to extend/expand memory outside the module, adding additional memory will not affect module certification.
- No wireless driver development costs are needed. Customers can customize the radio functionality and even build applications for their products by using NXP MCUXpresso's SDK, IDE, and configuration tools.
Multiple antenna options
The IM-100 has a U.FL connector allowing customers to choose and connect their U.FL antenna directly to the module. It also provides an option to bypass the U.FL connector allowing customers to print antennas on their PCB connected directly to the module antenna trace. The modules are globally certified for use with a range of external antennas.
IM-100 Specifications

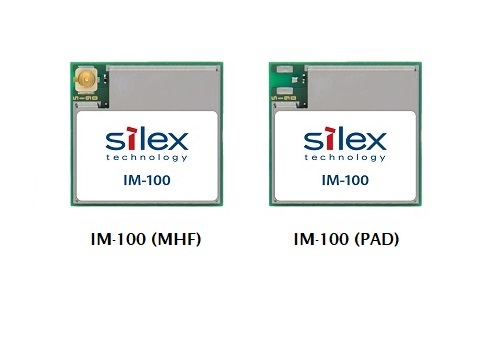

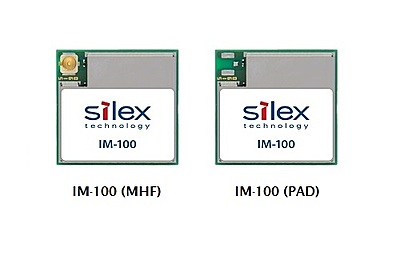

| SKUs | IM-100-MHF (MHF connectors) IM-100-PAD (None - Antenna trace) |
| Radio Chipset | RW610 (NXP) |
| On Board CPU | ARM-M33 260MHz |
| Memory | 1.2MB (Built-in RW610) → Memory Expansion: Extra memory can be mounted on the customer's board. |
| Radio Specifications | WLAN: 802.11a/b/g/n/ac/ax (1x1) BT: Bluetooth® LE v5.3 |
| Supported Interface | LAN(100Base), USB2.0, UARTx2 (Option: SPI, SDIO) |
| Security | WPA/WPA2/WPA3-Enterprise 802.11x (EAP-TLS, EAP-TTLS, PEAP, EAP-FAST) |
| Operating Voltage | 3.3V +/-5% |
| Operating Temperature | -40 to +85 degrees C |
| Dimensions | 17.0 x 18.0 x 2.65 mm (L x W x H) |
| Modular Certifications | FCC / IC / CE / MIC |
