RUTX50 is your future-proof, multi-network industrial router, offering 5G mobile communication for high-speed and data-heavy applications.
5G dual SIM cellular communication combined with 5 Gigabit Ethernet ports and dual-band Wi-Fi enables reliable ultra-low latency data transfer.
The power of 5G technology, combined with a wide range of interfaces and industrial hardware features, ensures adaptability for future upgrades and expansions.
RUTX50 comes with the RutOS, which provides advanced security features and specialized industrial protocols for a wide range of professional application scenarios, and is compatible with Teltonika's Remote Management System (RMS), for optimized remote management and monitoring capabilities of large fleets of devices.
Key features of RUTX50
Hardware
- Mobile:
- 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2);
- 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL;
- 3G – 42 Mbps DL, 5.76Mbps UL
- CPU: Quad-core ARM Cortex A7, 717 MHz
- Flash storage: 256 MB
- RAM: 256 MB
- Powering option: 4-pin power socket, 9-50 VDC
- SIM: 2 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V

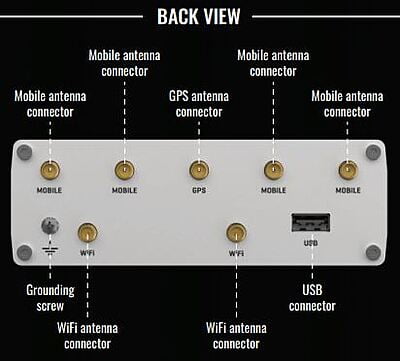

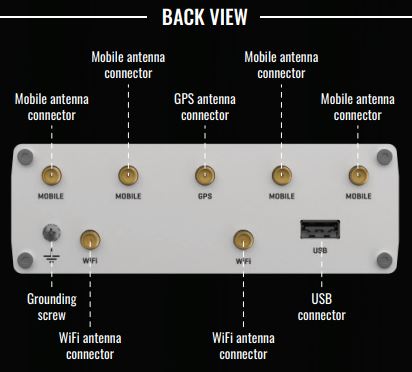

- Antenna connectors: 4 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x SMA for GNSS
- Ethernet: 5 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 4 x LAN
- WiFi: 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates of up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
- Wireless mesh/roaming: Wireless mesh (802.11s), fast roaming (802.11r)
- GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
- Inputs/Outputs: On 4-pin socket: 1 x Digital input, 1 x Digital open collector output
- Other: 1 x USB host, 1 x Grounding screw

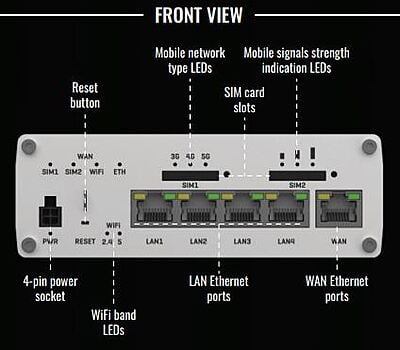

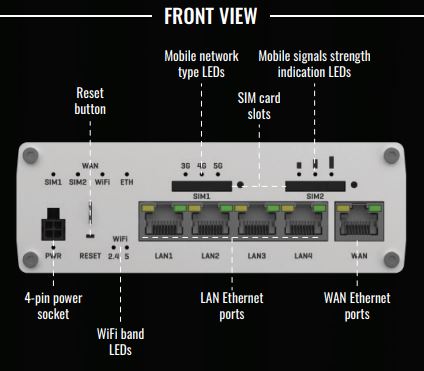

- Status LEDs: 3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2 x 2.4G and 5G WiFi LEDs
- Operating temperature: -40 °C to 75 °C
- Housing: Aluminium housing, DIN rail (can be mounted on two sides), flat surface placement
- Dimensions (W x H x D): 132 x 44.2 x 95.1 mm
- Weight: 533g
Software
- Operating system: RutOS (OpenWrt based Linux OS)
- Mobile features: Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
- Network features: Routing, Failover, Firewall, DHCP, DDNS, Load Balancing, VoIP passthrough, Connection monitoring
- Monitoring and Management: WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
- VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier
- Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
- Hotspot: External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
- GNSS: NMEA forwarding, AVL, Geofencing
