RUTX14 is the fastest single modem LTE router in the Teltonika Networks portfolio.
5 x Gigabit Ethernet ports, Wave-2 802.11ac Dual-Band Wi-Fi, Bluetooth LE, USB interfaces, dual SIM for advanced throughput and ultra-reliable connectivity.
Equipped with advanced security features like multiple VPN's, firewall & cyber attack prevention.
Combination of fast LTE CAT12 connectivity, wide range of physical interfaces, extensive RutOS functionality and great remote management capabilities make this device an excellent choice for primary or backup connectivity.
Key features of RUTX14
Hardware
- Mobile: 4G/LTE (Cat 12)
- CPU: Qualcomm, 4 x ARM Cortex A7, 717 MHz
- Storage: 256 MB Flash
- Memory: 256 MB RAM
- Powering option: 4pin power socket, 9-50 VDC
- SIM: 2 x External SIM holders (2FF)

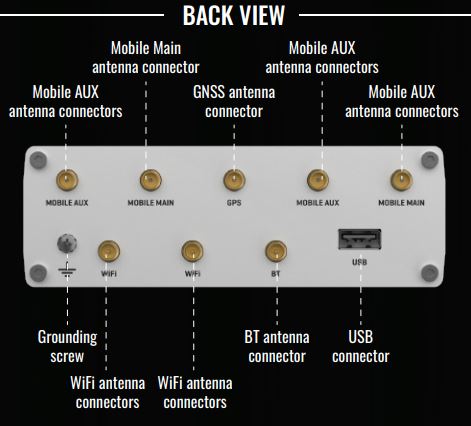

- Antenna connectors: 4 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GPS
- Ethernet: 5 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 4 x LAN
- WiFi: IEEE 802.11b/g/n 2.4GHz, IEEE 802.11ac/n/a 5GHz, Access point (AP), Station (STA)
- GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
- Connectors: 1 x 4 pin DC, 5 x Ethernet, 4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x SMA for GNSS, 1 x RP-SMA for Bluetooth
- Bluetooth: 4.0 (Low energy)
- Inputs/Outputs: On 4pin socket: 1 x Digital input, 1 x Digital open collector output
- Other: 1 x USB host, 1 x Grounding screw
- Status LEDs: 4 x WAN type, 2 x Connection type, 3 x Signal strength, 2 x WiFi, 10 x Ethernet, 1 x Power
- Operating temperature: -40 °C to 75 °C
- Housing: Aluminium housing with DIN rail mounting option and grounding capability
- Dimensions (W x H x D): 132 x 44.2 x 95.1 mm
- Weight: 515g
Software
- Operating system: RutOS (OpenWrt based Linux OS)
- Mobile features: Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
- Network: Failover (Network backup), VLAN, QoS, Load Balancing
- Routing: Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules
- Monitoring and Management: WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
- Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
- Hotspot: External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
- Supported Hotspot Platforms: IronWiFi, HotspotSystem, Cloud4Wi, SAI + WiFi, MugiCloud, Purple.ai
