RUTX12 Dual LTE Cat 6 Industrial Cellular Router
£469.93
This powerful dual LTE Cat 6 router from Teltonika Networks is a great fit for mission-critical applications. Two cellular modems for dual simultaneous connections, seamless mobile service switching and load balancing features make this device irreplaceable in applications where losing connection is not an option.
- DUAL LTE - Cellular speeds up to 600 Mbps with dual simultaneous LTE CAT 6 connections
- DUAL SIM - Instant failover switching
- WI-FI & BT - Wave-2 802.11ac Dual Band WI-FI and Bluetooth LE
- LOAD BALANCING - Allows to use multiple WAN sources to increase throughput
Data Sheet/Product Brief
https://bcdatlantik.co.uk//bcd-assets/specsheets/rutx12-datasheet-2023-v10.pdf Expected delivery time
10-14 working days Choose Quantity
Product Details
RUTX12 is the most powerful Dual LTE Cat 6 router in the Teltonika Networks portfolio.
Two simultaneously operational LTE Cat 6 modems provide speeds up to 600 Mbps with load balancing feature.

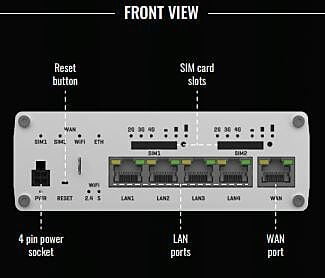

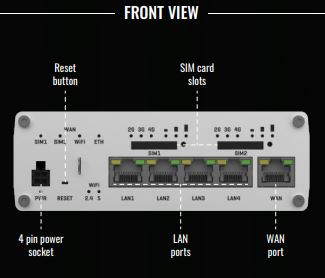

5 x Gigabit Ethernet ports, Wave-2 802.11ac Dual-Band Wi-Fi, Bluetooth LE, and USB interfaces and dual SIM make this device irreplaceable in applications where losing connection is not an option.
Packed with advanced security features like VPN, IPsec, PPTP, L2TP, Stunnel and GNSS tracking.
Key features of RUTX12
Hardware
- Mobile: 2 x 4G/LTE (Cat 6), 3G
- CPU: Qualcomm, 4 x ARM Cortex A7, 717 MHz
- Storage: 256 MB Flash
- Memory: 256 MB RAM
- Powering option: 4pin power socket, 9-50 VDC
- SIM: 2 x External SIM holders (2FF)

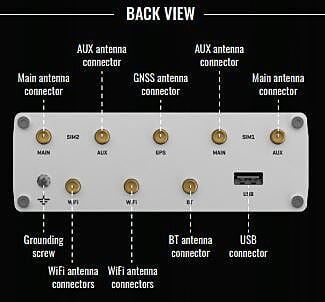

- Antenna connectors: 4 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GPS
- Ethernet: 5 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 4 x LAN
- WiFi: IEEE 802.11b/g/n 2.4GHz, IEEE 802.11ac/n/a 5GHz, Access point (AP), Station (STA)
- GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
- Bluetooth: 4.0 (Low energy)
- Inputs/Outputs: On 4pin socket: 1 x Digital input, 1 x Digital open collector output
- Other: 1 x USB host
- Status LEDs: 4 x WAN type, 6 x Connection type, 6 x Signal strength, 2 x WiFi, 10 x Ethernet, 1 x Power
- Operating temperature: -40 °C to 75 °C
- Housing: Aluminium housing with DIN rail mounting option and grounding capability
- Dimensions (W x H x D): 132 x 44.2 x 95.1 mm
- Weight: 540g
Software
- Operating system: RutOS (OpenWrt based Linux OS)
- Mobile features: Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
- Network: Failover (Network backup), VLAN, QoS, Load Balancing
- Routing: Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules
- Monitoring and Management: WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
- Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
- Hotspot: External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
- Supported Hotspot Platforms: IronWiFi, HotspotSystem, Cloud4Wi, SAI + WiFi, MugiCloud, Purple.ai
