RUTX10 Professional Ethernet Router
£175.95
The RUTX10 professional router from Teltonika Networks combines the best of wired and wireless routing functionalities with Gigabit Ethernet, Bluetooth LE, and AC Wi-Fi.
Advanced remote management capabilities, along with numerous supported security and networking protocols, make the RUTX10 an ideal choice for professional applications.
- GIGABIT ETH - 4 x Gigabit Ethernet ports with up to 128 port/tag-based VLANs supported
- WI-FI & BT - Wave-2 802.11ac Dual Band WI-FI and Bluetooth LE
- VPN - Numerous VPN Protocols supported, including OpenVPN, IPsec, PPTP, L2TP & DMVPN
- RMS - Compatible with Teltonika Networks Remote Management System
Data Sheet/Product Brief
https://bcdatlantik.co.uk//bcd-assets/specsheets/rutx10-datasheet-v10.pdf Expected delivery time
Not all of our products are held in our local warehouse. After placing an order we will contact you with a proposed delivery date. If you would like to know the status before placing an order, please contact us. Choose Quantity
Product Details
The RUTX10 Enterprise router has been designed specially for small to mid-size office applications.
It comes with Dual Band Wi-Fi 5 802.11ac, which is very suitable for high data transmission and robust wireless performance.
It has all the latest security features and allows remote monitoring and control.
RUTX10 comes with highly functional & customizable RutOS based on OpenWRT.
Synergy between hardware and software makes this device an amazing performer in Enterprise solutions.
Key features of RUTX10
Hardware
- CPU: Qualcomm, 4 x ARM Cortex A7, 717 MHz
- Storage: 256 MB Flash
- Memory: 256 MB RAM
- Powering option: 4pin power socket, 9-50 VDC

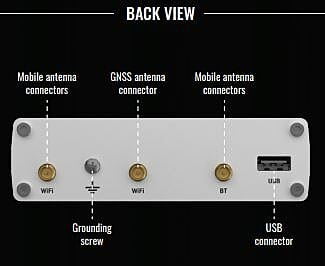

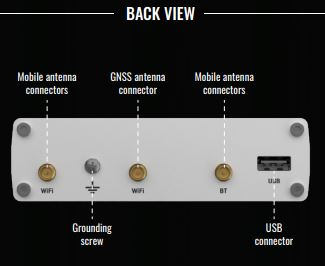

- Antenna connectors: 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth

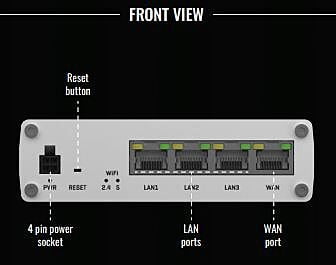

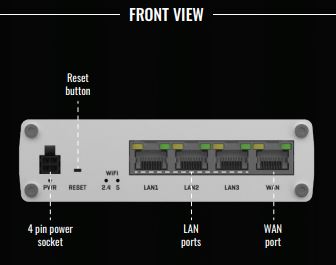

- Ethernet: 4 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
- WiFi: IEEE 802.11b/g/n 2.4GHz, IEEE 802.11ac/n/a 5GHz, Access point (AP), Station (STA)
- Bluetooth: 4.0 (Low energy)
- Inputs/Outputs: On 4pin socket: 1 x Digital input, 1 x Digital open collector output
- Other: 1 x USB Host
- Status LEDs: 2 x WiFi, 8 x Ethernet, 1 x Power
- Operating temperature: -40 °C to 75 °C
- Housing: Aluminium housing with DIN rail mounting option and grounding capability
- Dimensions (W x H x D): 115 x 32.2 x 95.2 mm
- Weight: 355g
Software
- Operating system: RutOS (OpenWrt based Linux OS)
- Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet
- Routing: Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules
- VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier
- Monitoring and Management: WEB UI, CLI, SSH, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
- Connection monitoring: Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
- Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
- Hotspot: External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
- Supported Hotspot platforms: IronWiFi, HotspotSystem, Cloud4Wi, SAI + WiFi, MugiCloud, Purple.ai
- Services: DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba), Traffic Logging
