RUTX09 is LTE-A Cat 6 cellular IoT router with Dual-SIM, Carrier Aggregation, and 4 Gigabit Ethernet interfaces.
RUTX09 is designed as a Main/Backup internet source offering cellular speeds up to 300 Mbps, where steady connection and high data throughput is necessary.
It has plenty of processing capacity for custom applications on the OpenWrt based RutOS system.
Plenty of security features are available, like Firewall, VPN, IPsec, SNMP, Content Filtering for maximized safety.
This product is compatible with Teltonika's Remote Management System for convenient monitoring, maintenance, and data collection.
Key features of RUTX09
- Mobile: 4G/LTE (Cat 6), 3G
- CPU: Qualcomm, 4 x ARM Cortex A7, 717 MHz
- Storage: 256 MB Flash
- Memory: 256 MB RAM

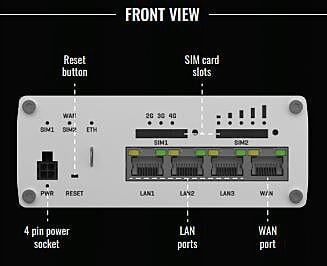

- Powering option: 4pin power socket, 9-50 VDC
- SIM: 2 x External SIM holders (2FF)

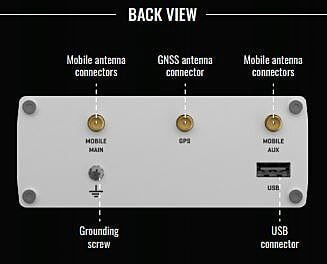

- Antenna connectors: 2 x SMA for mobile, 1 x SMA for GPS
- Ethernet: 4 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
- GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
- Inputs/Outputs: On 4pin socket: 1 x Digital input, 1 x Digital open collector output
- Other: 1 x USB host
- Status LEDs: 3 x WAN type, 2 x Connection type, 5 x Signal strength, 8 x Ethernet, 1 x Power
- Operating temperature: -40 °C to 75 °C
- Housing: Aluminium housing with DIN rail mounting option and grounding capability
- Dimensions (W x H x D): 115 x 44.2 x 95.1 mm
- Weight: 455g
- Operating system: RutOS (OpenWrt based Linux OS)
- Mobile features: Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
- Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet
- Network: Failover (Network backup), VLAN, QoS, Load Balancing
- VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier
- Monitoring and Management: WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
- Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
- NTP: NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator
- GNSS: NMEA forwarding, AVL, Geofencing
- Services: DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba), Traffic Logging
- Administration: Multi user, Configuration profiles, Diagnostics, logs, Configuration backup
