RUTX08 Industrial Ethernet Router

This robust industrial router from Teltonika Networks has four Gigabit Ethernet ports, a Quad-Core CPU, and 256 MB RAM. These powerful specifications combined with core RutOS software features, such as multiple VPN services, advanced Firewall, and RMS support, make this device a superb industrial performer.

GIGABIT ETH - 4 x Gigabit Ethernet ports with up to 128 port/tag-based VLANs supported
VPN - Numerous VPN Protocols supported, including OpenVPN, IPsec, PPTP, L2TP & DMVPN
PROTOCOLS - Multiple protocols supported including MQTT, Modbus TCP, BGP, GRE
RMS - Compatible with Teltonika Networks Remote Management System

Looking to connect your device? Try our free Wireless Logic SIM with 2 week trial now!
Click here to view and add to your basket for free >>

£134.42

Additional information

Data Sheet/Product Brief

https://bcdatlantik.co.uk//bcd-assets/specsheets/rutx08-datasheet-v10.pdf

Expected delivery time

Not all of our products are held in our local warehouse. After placing an order we will contact you with a proposed delivery date. If you would like to know the status before placing an order, please contact us.

Available Offer

Product Details

RUTX08 is a durable and powerful Ethernet-to-Ethernet industrial VPN router that runs on RutOS - an advanced OpenWRT based operating system.

It has four Gigabit Ethernet ports with speeds up to 1000 Mbps.

A rugged aluminum housing and industrial networking protocol support make RUTX08 a perfect choice for professional applications.

These powerful specifications combined with RutOS software features, such as multiple supported VPN services, advanced Firewall, and Remote Management System (RMS) make this device a superb performer, where no cellular or Wi-Fi connectivity is required.

Key features of RUTX08

Hardware

CPU: Qualcomm, 4 x ARM Cortex A7, 717 MHz
Storage: 256 MB Flash
Memory: 256 MB RAM
Powering option: 4pin power socket, 9-50 VDC

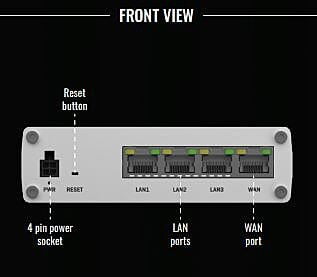

Ethernet: 4 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
Inputs/Outputs: On 4pin socket: 1 x Digital input, 1 x Digital open collector output

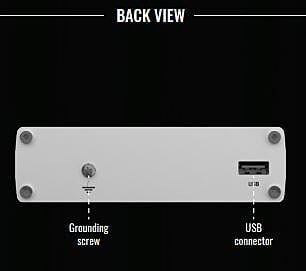

Other: 1 x USB Host
Status LEDs: 8 x Ethernet, 1 x Power
Operating temperature: -40 °C to 75 °C
Housing: Aluminium housing with DIN rail mounting option and grounding capability
Dimensions (W x H x D): 115 x 32.2 x 95.2 mm
Weight: 345g

Software

Operating system: RutOS (OpenWrt based Linux OS)
Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet
Routing: Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules
Firewall: Port forward, Traffic rules, Custom rules, Pre-configured firewall rules, DMZ, NAT, NAT-T, NAT helpers, Unlimited firewall configuration via CLI
Security: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), Port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier
Monitoring and Management: WEB UI, CLI, SSH, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
Services: DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba), Traffic Logging
Administration: Multi user, Configuration profiles, Diagnostics, logs, Configuration backup
