RUT956 Industrial Cellular Router
£245.89
RUT956 is an industrial router from Teltonika Networks, which combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities.
Serial communication interfaces enable integrating more varied devices into the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications.
- CONNECTIVITY - 4G/LTE (Cat 4), 3G, 2G
- DUAL SIM - With auto failover, backup WAN and other switching scenarios
- MULTIPLE INTERFACES - Ethernet, Serial (RS232, RS485) and multiple Inputs/Outputs
- GNSS - Global Navigation Satellite System for location services and time synchronization
Data Sheet/Product Brief
https://bcdatlantik.co.uk//bcd-assets/specsheets/rut956-datasheet-v14.pdf Expected delivery time
10-14 working days Choose Quantity
Product Details
RUT956 is an industrial router that combines dual-SIM cellular 4G LTE, Wi-Fi, and wired connectivity options and additionally offers GNSS capabilities.
Automatic WAN failover ensures solution uptime even if the primary connection is lost.
Serial communication interfaces enable integrating more varied devices to the solution ecosystem, even legacy equipment.
Digital and analog Inputs/Outputs with advanced RutOS software features facilitate equipment control, automation, and event notifications.
Packed with advanced industrial software features, including Modbus, SNMP, TR-069, NTRIP, MQTT, and multiple VPNs.
Key features of RUT956
Hardware
- Mobile: 4G/LTE (Cat 4), 3G, 2G
- CPU: Mediatek MIPS 24Kc 580 MHz
- Storage: 16 MB Flash
- Memory: 128 MB RAM
- Powering option: 4-pin industrial power socket, 9-30 VDC
- SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)

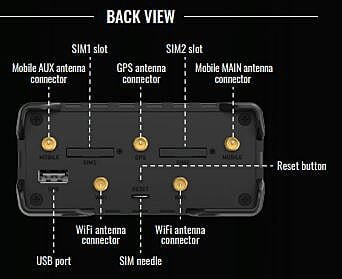

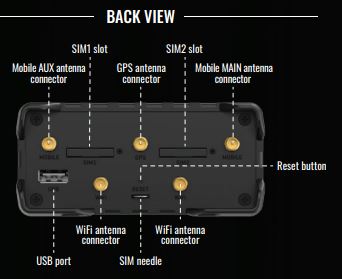

- Antenna connectors: 2 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x SMA for GPS

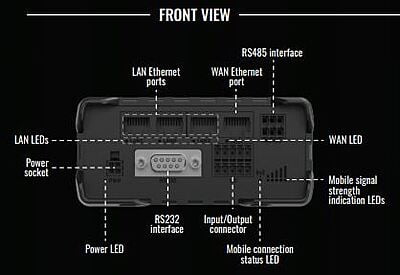

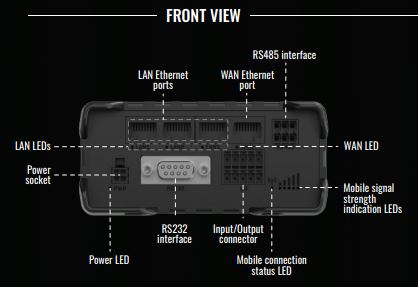

- Ethernet: 4 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
- WiFi: IEEE 802.11b/g/n, Access point (AP), Station (STA)
- GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
- Inputs/Outputs:
- On 4-pin socket: 1 x Digital input, 1 x Digital open collector output
- On 10-pin socket: 1 x Isolated digital input, 1 x Digital dry input, 1 x Analog input, 1 x Isolated open collector output (requires external voltage), 1 x Relay output (non-latching)
- Serial: 1 x RS232, 1 x RS485
- Other: 1 x USB host
- Status LEDs: 1 x Bi-Color connection type, 5 x Signal strength, 4 x Ethernet, 1 x Power
- Operating temperature: -40 °C to 75 °C
- Housing: Aluminium housing with DIN rail mounting option, plastic panels with flat mounting option
- Dimensions (W x H x D): 110 x 50 x 100 mm
- Weight: 287 g
Software
- Operating system: RutOS (OpenWrt based Linux OS)
- Mobile features: Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
- Network features: Routing, Failover, Firewall, DHCP, DDNS, QoS / SQM, Load Balancing, VOIP passthrough, Connection monitoring, SSHFS
- Monitoring and Management: WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
- Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
- NTP: NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator
- GNSS: NMEA forwarding, AVL, Geofencing
- Modbus: TCP slave, TCP master, RTU master, RTU gateway, Modbus over MQTT
- Serial: Console, Over IP, Modem, NTRIP, Modbus
