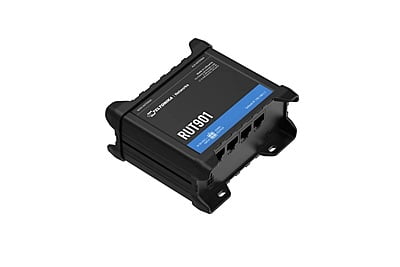

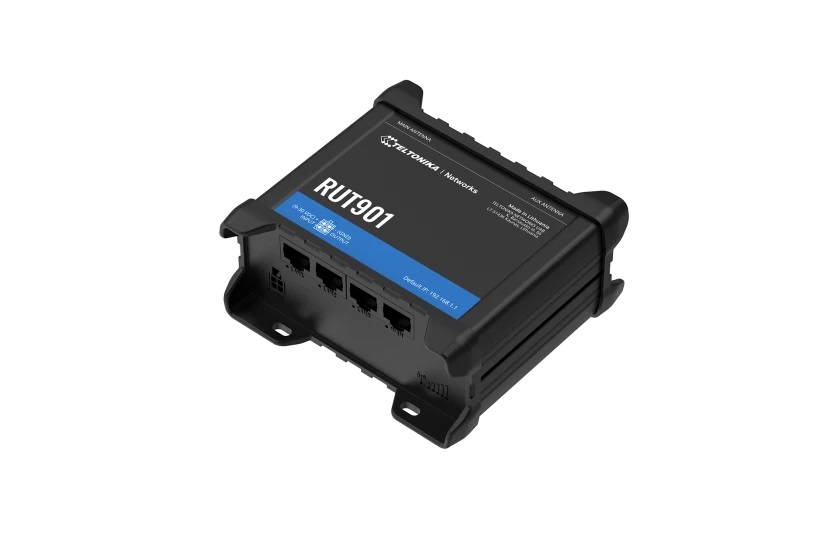

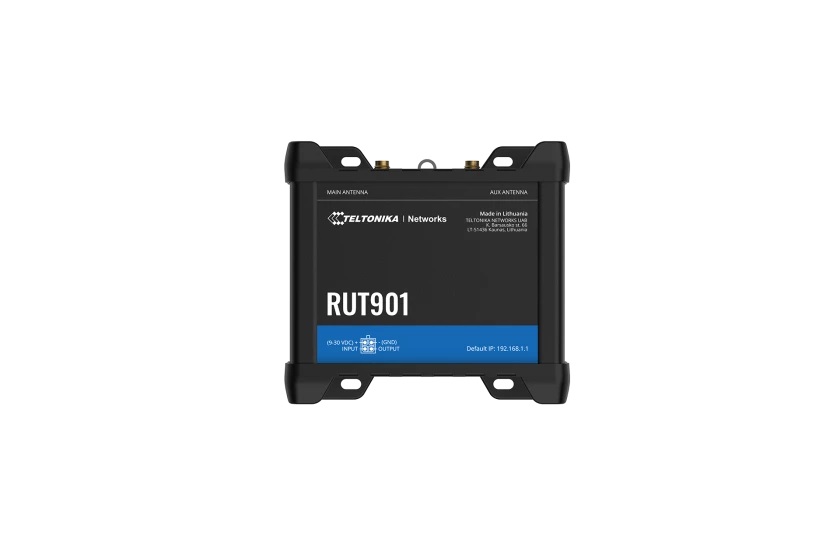

The RUT901 cellular router delivers the top-rated features of its predecessors, the RUT950 and RUT951, to the market.
The router features dual SIM 4G cellular connectivity and Wi-Fi, as well as 4x Ethernet interfaces, to meet the needs of the many varied IoT solutions.
The device ensures high-performance, providing automatic WAN failover to an available backup connection, guaranteeing network continuity, and eliminating downtime.
The RUT901 is dedicated to professional industrial use cases with its high customization possibilities, security features, industrial protocols, and compatibility with Teltonika Networks’ Remote Management System (RMS).
Key features of RUT901
Hardware
- Mobile: 4G (LTE) - Cat 4 up to 150 Mbps, 3G - up to 21 Mbps, 2G - up to 236.8 kbps
- CPU: Mediatek, MIPS 24KEc, 580 MHz
- Storage: 16 MB, SPI Flash
- Memory: 128 MB, DDR2
- Powering option: 4pin power socket, 9-30 VDC
- SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)

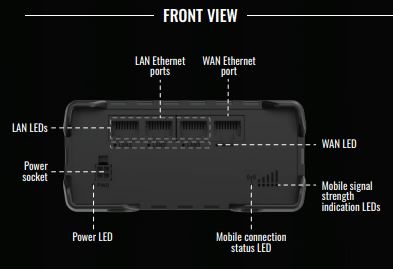

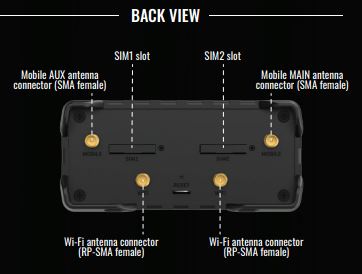

- Antenna connectors: 2 x SMA female for LTE, 2 x RP-SMA female for WiFi antenna connectors
- Ethernet: 4 x RJ45 ports, 10/100 Mbps
- WiFi: IEEE 802.11b/g/n, Access point (AP), Station (STA)
- Inputs/Outputs: 1 x Digital input, 1 x Digital output on 4-pin power connector
- Status LEDs: 1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED
- Operating temperature: -40 °C to 75 °C
- Housing: Aluminium housing, plastic panels
- Dimensions (W x H x D): 110 x 50 x 100 mm
- Weight: 297 g
Software
- Operating system: RutOS (OpenWrt based Linux OS)
- Mobile features: SIM switch, Status, SMS, Black/White list, Band management, APN, Bridge, Passthrough
- Network protocols: VoIP passthrough support, Connection monitoring, Firewall, DHCP, QoS / Smart Queue Management (SQM), DDNS, Network backup, Load balancing, SSHFS
- Network features: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
- Security: Authentication, Firewall, Attack prevention, VLAN, Mobile quota control, WEB filter, Access control
- Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP)
- VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard
- Monitoring and Management: WEB UI, FOTA, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
- Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Cloud solutions: RMS, Cloud of Things, ThingWorx, Cumulocity, Azure IoT Hub
- Hotspot: Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
- SMS features: SMS status, SMS configuration, Send/Read SMS via HTTP POST/GET, EMAIL to SMS, SMS to Email, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
