Raspberry Pi M.2 Hat for Raspberry Pi 5
Raspberry Pi M.2 Hat for Raspberry Pi 5
Raspberry Pi M.2 Hat for Raspberry Pi 5
Raspberry Pi M.2 Hat for Raspberry Pi 5

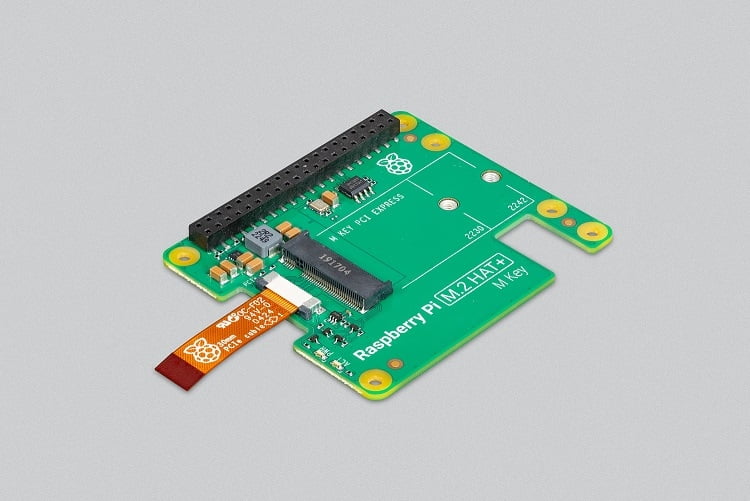

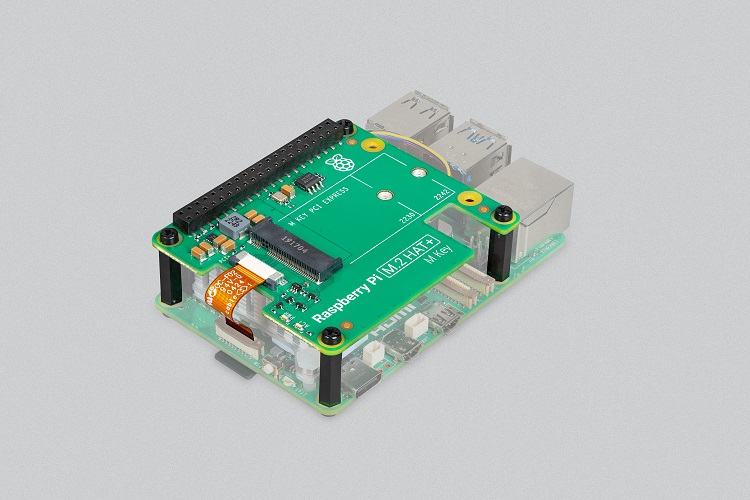

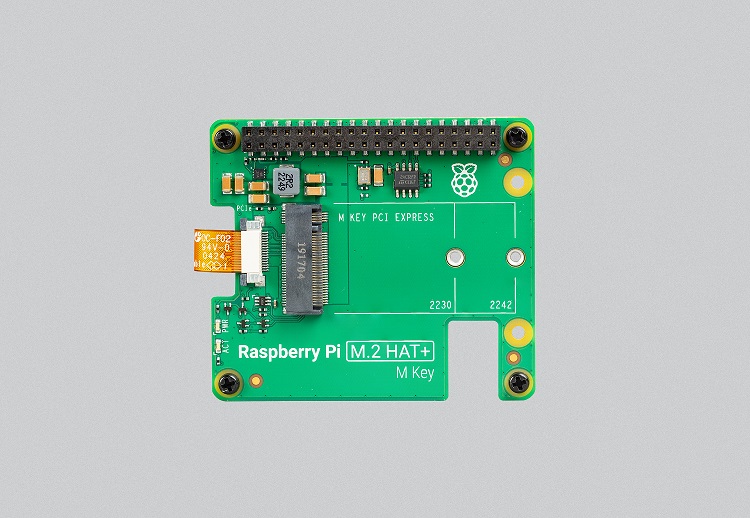

Raspberry Pi M.2 HAT+

The new Raspberry Pi M.2 HAT+ supports the connection of M.2-format PCIe and NVMe devices to the PCIe FPC connector on Raspberry Pi 5.

The M.2 HAT+ adapter board converts between the PCIe connector on Raspberry Pi 5 and a single M.2 M key edge connector. You can connect any device that uses the 2230 or 2242 form factors. The M.2 HAT+ can supply up to 3A of power.

The M.2 HAT+ uses Raspberry Pi’s HAT+ specification, which allows Raspberry Pi OS to automatically detect the HAT+ and any connected devices. The included threaded spacers provide ample room to fit the Raspberry Pi Active Cooler beneath an M.2 HAT+.
Expected delivery time
7-10 days
Volume Orders
MOQ is pack size of 300. Please contact us if you need a smaller quantity.
Choose Quantity
+ Add to Cart
Product Details

Raspberry Pi M.2 HAT+ Features

  • Single-lane PCIe 2.0 interface (500 MB/s peak transfer rate)
  • Supports devices that use the M.2 M key edge connector
  • Supports devices with the 2230 or 2242 form factor
  • Supplies up to 3A to connected M.2 devices
  • Power and activity LEDs
  • Conforms to the Raspberry Pi HAT+ specification
  • Includes:
    • ribbon cable
    • 16mm GPIO stacking header
    • 4 threaded spacers
    • 8 screws
    • 1 knurled double-flanged drive attachment screw to secure and support the M.2 peripheral
Note: Compatible with Raspberry Pi 5 only
