Raspberry Pi High Quality Camera (C/CS Mount)

Raspberry Pi High Quality Camera (C/CS Mount)

Name: Raspberry Pi High Quality Camera (C/CS Mount)
Brand: Raspberry Pi
SKU: SC1220
Price: 37.5 GBP
Availability: InStock

The Raspberry Pi High Quality Camera is an affordable high-quality camera from Raspberry Pi. It offers 12-megapixel resolution and a 7.9mm-diagonal sensor for impressive low-light performance. This CS Mount variant is designed to work with interchangeable lenses in both CS- and C-mount form factors (C-mount lenses require the use of the C-CS adapter included with this variant).

Also available for M12 Mount. Other lens form factors can be accommodated using third-party lens adapters.

£37.50

Additional information

Data Sheet/Product Brief

https://bcdatlantik.co.uk//bcd-assets/specsheets/high_quality_camera_product_brief.pdf

Expected delivery time

Please contact us for stock availability before placing an order. Email sales@bcdatlantik.co.uk or call 01256 818111.

Product Details

The High Quality Camera is well suited to industrial and consumer applications, including security cameras, which require the highest levels of visual fidelity and/or integration with specialist optics.

It is compatible with all models of Raspberry Pi computer from Raspberry Pi 1 Model B onwards, using the latest software release from raspberrypi.com.

Note: All later models of Raspberry Pi Zero require a Raspberry Pi Zero camera cable; the standard cable supplied with the camera module is not compatible with the Raspberry Pi Zero camera connector. Suitable cables are available at low cost, and are supplied with the Raspberry Pi Zero Case.

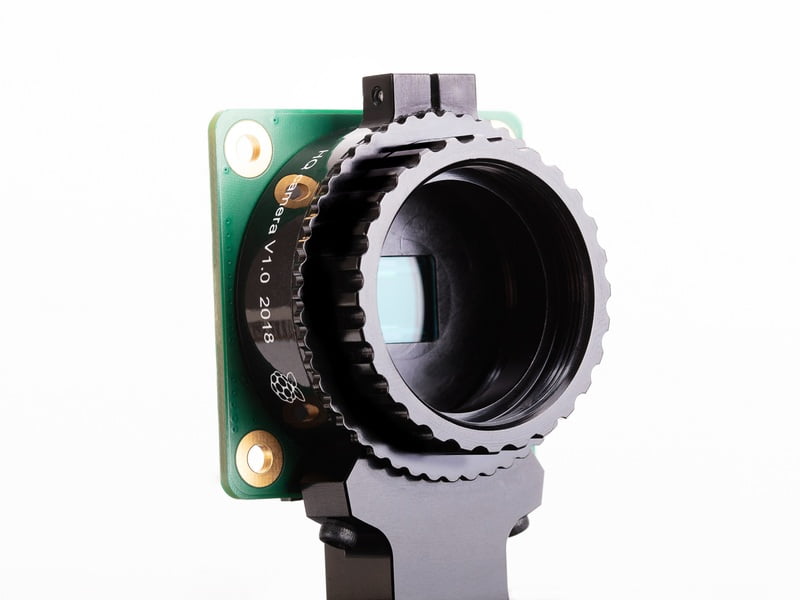

The package comprises a circuit board carrying a Sony IMX477 sensor, an FPC cable for connection to a Raspberry Pi computer, and a milled aluminium lens mount with integrated tripod mount. This CS Mount variant lens mount features a focus adjustment ring, and ships with a C- to CS-mount adapter.

Specifications

Sony IMX477R stacked, back-illuminated sensor, 12.3 megapixels, 7.9 mm sensor diagonal, 1.55 μm × 1.55 μm pixel size
Output: RAW12/10/8
Back focus length of lens: 12.5mm–22.4mm
Lens sensor format: 1/2.3” (7.9mm) or larger
IR cut filter: Integrated
Ribbon cable length: 200 mm
Tripod mount: 1/4”-20
