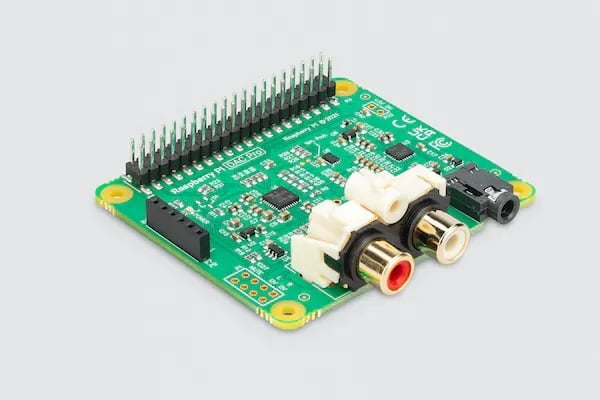

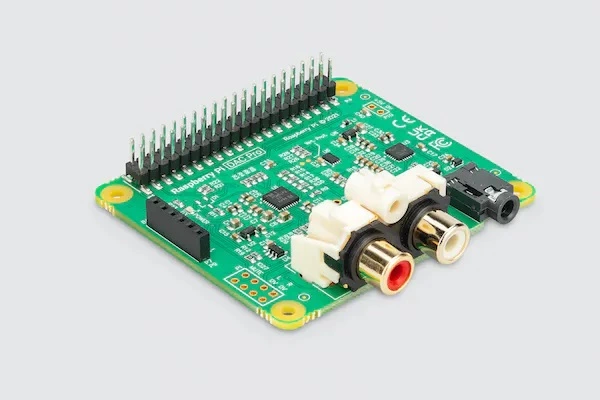

Raspberry Pi DAC Pro
£20.00
The Raspberry Pi DAC Pro is our highest-fidelity audio HAT, and is compatible with any Raspberry Pi computer that has a 40-pin GPIO header. With the Texas Instruments PCM5242, the DAC Pro provides an outstanding signal-to-noise ratio (SNR) and supports balanced/differential output in parallel to phono/RCA line-level output. It also includes a dedicated headphone amplifier.
Previously known as IQaudio DAC Pro.
Data Sheet/Product Brief
https://bcdatlantik.co.uk//bcd-assets/specsheets/dac-pro-hat-product-brief.pdf Expected delivery time
Not all of our products are held in our local warehouse. After placing an order we will contact you with a proposed delivery date. If you would like to know the status before placing an order, please contact us. Choose Quantity
Product Details
Raspberry Pi DAC Pro Specifications
The Raspberry Pi DAC Pro is compatible with any Raspberry Pi computer that has a 40-pin GPIO header.
- Form factor: 58 mm × 65 mm
- Performance: Full high definition 24-bit 192kHz Texas Instruments PCM5242 digital audio codec (DAC)
- Input power: Supplied by Raspberry Pi through the 40-pin GPIO header. No external power source required
- Features:
- Power LED
- Analogue out (0–2V RMS via P7)
- Dedicated headphone amplifier, output via 3.5mm panel-mounted barrel socket
- Panel-mounted stereo phono (RCA) socket output
- 40-pin pass-through GPIO header
- HAT EEPROM write-enabled
- Operating temperature: 0°C–50°C
Check out the Raspberry Pi audio boards documentation for help selecting and using Raspberry Pi audio boards.
