Raspberry Pi Codec Zero
£16.00

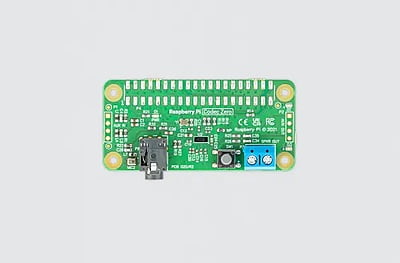

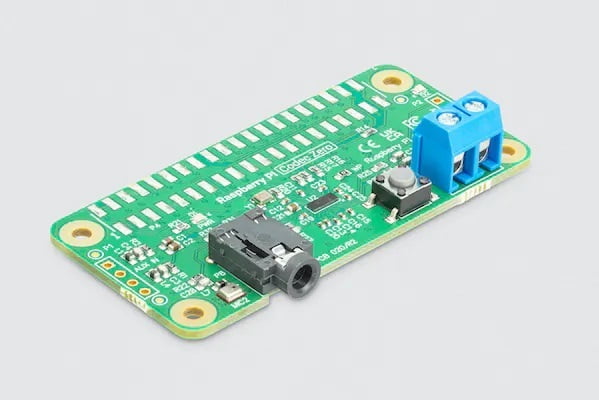

Raspberry Pi Codec Zero is a Raspberry Pi Zero-sized audio HAT that delivers bi-directional digital audio signals (I2S) between a Raspberry Pi and the Codec Zero’s on-board Dialog Semiconductor DA7212 codec, and allows you to use a variety of input and output devices. With features such as programmable green and red LEDs, plus a tactile button for user input, Codec Zero makes a great starting point for audio projects such as a walkie-talkie, intelligent doorbell, smart speaker, or vintage radio hack.
Previously known as IQaudio Codec Zero.
Data Sheet/Product Brief
https://bcdatlantik.co.uk//bcd-assets/specsheets/codec-zero-hat-product-brief.pdf Expected delivery time
Not all of our products are held in our local warehouse. After placing an order we will contact you with a proposed delivery date. If you would like to know the status before placing an order, please contact us. Choose Quantity
Product Details
Raspberry Pi Codec Zero Specifications
The Raspberry Pi Codec Zero is compatible with any Raspberry Pi computer that has a 40-pin GPIO header.
- Form factor: 65 mm × 31 mm
- Performance: High definition 24-bit 96kHz Dialog Semiconductor DA7212 digital audio codec (DAC)
- Input power: Supplied by Raspberry Pi through the 40-pin GPIO header. No external power source required
- Features:
- Power LED
- Additional green (GPIO23) and red (GPIO24) LEDs for status
- Tactile button (GPIO27) for user input
- Built-in mono electret microphone (MEMS)
- HAT EEPROM write-enabled
- Supports:
- Additional external mono electret microphone via 3.5mm panel-mounted barrel socket
- 1.2W 8Ω mono speaker via panel-mounted screw terminals
- Stereo input and output channels, including external phono (RCA) sockets, via AUX IN and AUX OUT pins
- Operating temperature: 0°C–50°C
Check out the Raspberry Pi audio boards documentation for help selecting and using Raspberry Pi audio boards.
