Raspberry Pi CM4 - CM4002064 - 2GB RAM, 64GB eMMC

Name: Raspberry Pi CM4 - CM4002064 - 2GB RAM, 64GB eMMC
Brand: Raspberry Pi
SKU: SC2686
Price: 70.3 GBP
Availability: InStock

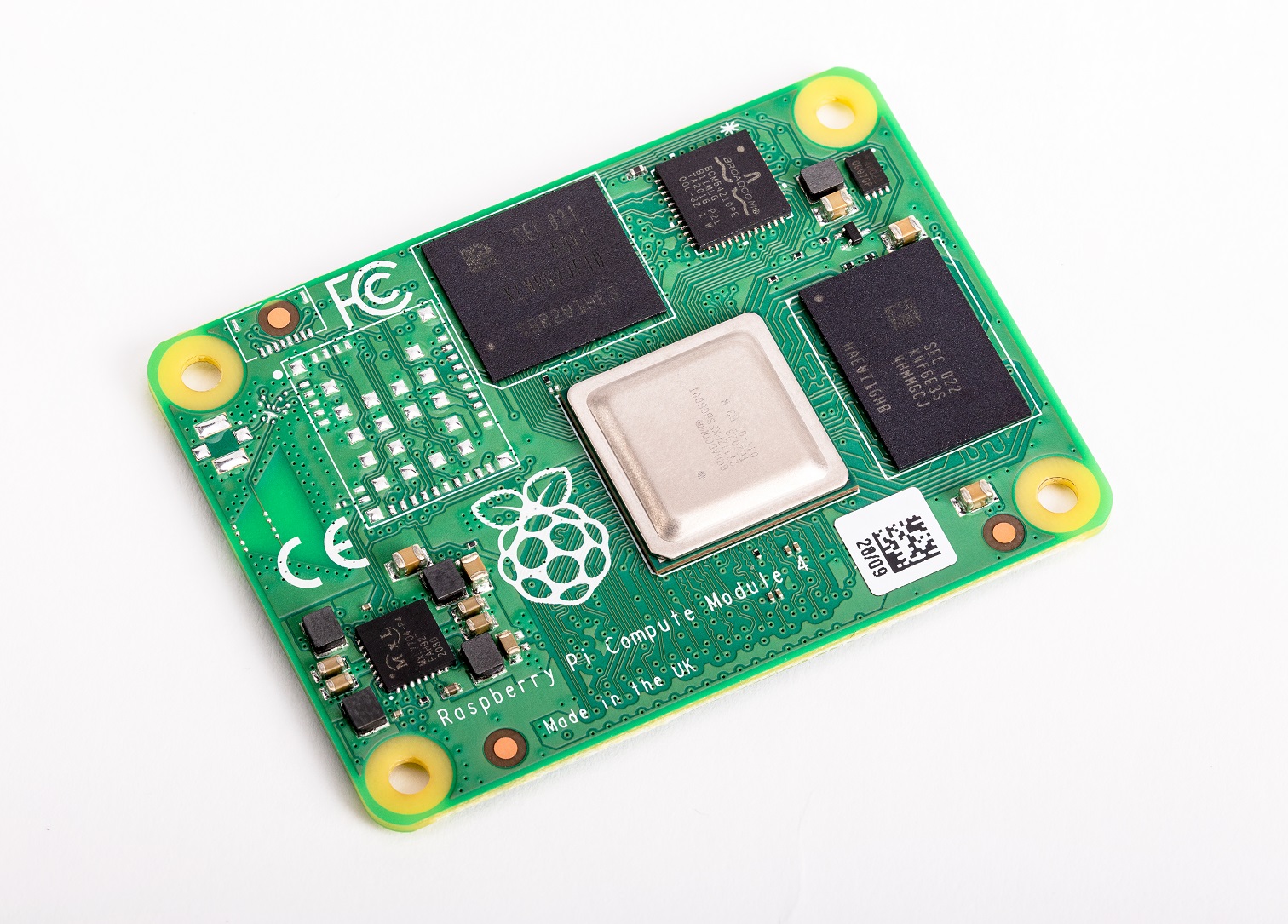

CM4002064 - Compute Module 4 with 2GB RAM, 64GB TLC eMMC (without wireless)

The power of Raspberry Pi 4 in a compact form factor for deeply embedded applications. Raspberry Pi Compute Module 4 incorporates a quad-core ARM Cortex-A72 processor, dual video output, and a wide selection of other interfaces.

Available in 40 variants, with a range of RAM and eMMC Flash options, and with or without wireless connectivity.

Please note: There are also extended temperature options available for some Compute Module 4 variants. These have an operating temperature range of -40C to +85C. Please contact us for more information and pricing.

£70.30

Additional information

Data Sheet/Product Brief

https://bcdatlantik.co.uk//bcd-assets/specsheets/2010023-product-brief-rpi-cm4.pdf

Expected delivery time

Please contact us for stock availability before placing an order. Email sales@bcdatlantik.co.uk or call 01256 818111.

Product Details

Raspberry Pi Compute Module 4 harnesses the compute power of the popular Raspberry Pi 4 Model B, bringing it to a smaller form factor suitable for integration into products.

Key features

Key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K, hardware video decode at up to 4Kp60, up to 8GB of RAM, Gigabit Ethernet, USB 2.0, dual camera interfaces, and PCIe Gen 2 x1 interface.

The optional dual-band 2.4/5.0GHz wireless LAN and Bluetooth 5.0 have modular compliance certification. This allows the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market. Either the onboard antenna or an external antenna kit can be used.

Compute Module 4 has optional onboard eMMC of 8GB, 16GB, 32GB or 64GB.

Specification

Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
H.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode)
OpenGL ES 3.1, Vulkan 1.0
Options for 1GB, 2GB, 4GB or 8GB LPDDR4-3200 SDRAM (depending on variant)
Options for 0GB ("Lite"), 8GB, 16GB, 32GB or 64GB eMMC Flash memory (depending on variant)
Option for fully certified radio module:
