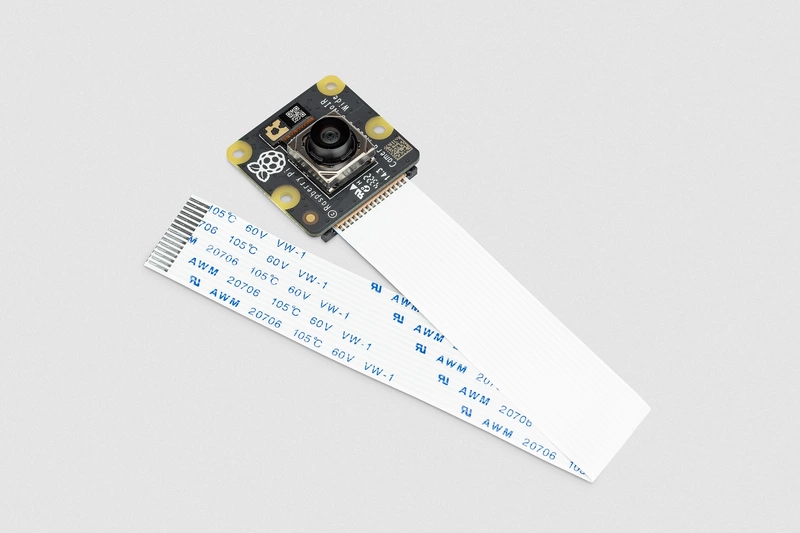

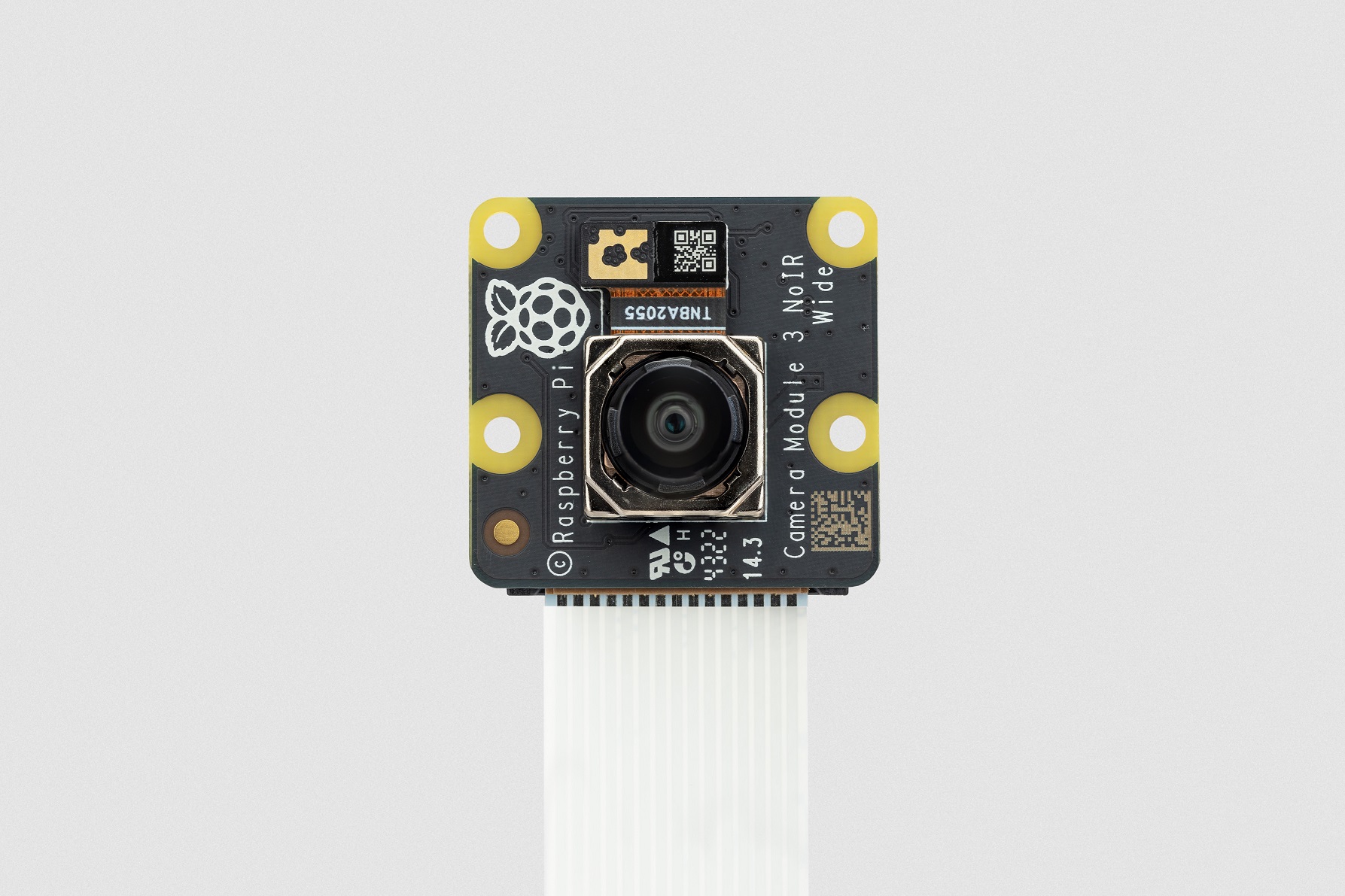

Camera Module 3 can be used to take full HD video as well as still photographs, and features an HDR mode up to 3 megapixels. Its operation is fully supported by the libcamera library, including Camera Module 3’s rapid autofocus feature: this makes it easy for beginners to use, while offering plenty for advanced users.
This Wide variant features an ultra-wide 120 degree angle of view, meaning your Raspberry Pi can see more of the world.
This NoIR variant does not employ an infrared filter. (NoIR = No Infrared filter.) This means that pictures you take by daylight will look decidedly curious, but it gives you the ability to see in the dark with infrared lighting.
Camera Module 3 is compatible with all Raspberry Pi computers. (Excluding early Raspberry Pi Zero models, which lack the necessary FPC connector.)
Note: All later models of Raspberry Pi Zero require a Raspberry Pi Zero camera cable; the standard cable supplied with the camera module is not compatible with the Raspberry Pi Zero camera connector. Suitable cables are available at low cost, and are supplied with the
Raspberry Pi Zero Case.
The PCB size and mounting holes remain the same as for Camera Module 2.
The Z dimension differs: due to the improved optics, Camera Module 3 is several millimetres taller than Camera Module 2.
All variants of Camera Module 3 feature:
- Back-illuminated and stacked CMOS 12-megapixel image sensor (Sony IMX708)
- High signal-to-noise ratio (SNR)
- Built-in 2D Dynamic Defect Pixel Correction (DPC)
- Phase Detection Autofocus (PDAF) for rapid autofocus
- QBC Re-mosaic function
- HDR mode (up to 3 megapixel output)
- CSI-2 serial data output
- 2-wire serial communication (supports I2C fast mode and fast-mode plus)
- 2-wire serial control of focus mechanism
