RG255CGL00AB-4M2-MN0AA
£95.38

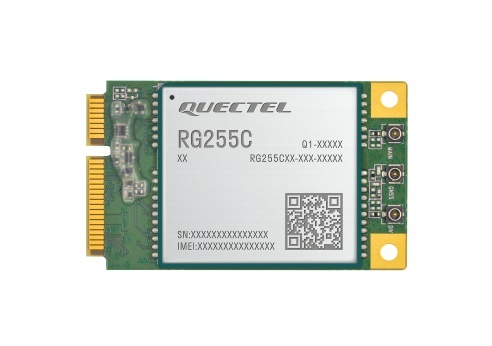

Quectel RG255C-GL Mini PCIe - A 5G RedCap Sub-6 GHz Mini PCIe Module
RG255CGL00AB-4M2-MN0AA
Expected delivery time
Manufacturer lead time = 26 weeks Choose Quantity
Product Details
Quectel RG255C-GL Mini PCIe is a 5G RedCap module adopting standard PCI Express® Mini Card form factor (Mini PCIe). Adopting the 3GPP Rel-17 RedCap technology, the module supports 5G LAN*/ Slicing/ URLLC, etc., with a theoretical peak data rate of 223 Mbps in the downlink and 123 Mbps in the uplink. The module supports LTE Cat 4 and 5G Sub-6 SA modes , and is backward compatible with 3GPP Rel-15 and Rel-16 networks. The module can meet customers’ different application demands for medium speed, large capacity, low latency, high reliability, etc.
RG255C-GL Mini PCIe module supports Qualcomm® IZat™ location technology Gen 9VT (GPS, GLONASS, NavlC, BDS and Galileo). The integrated GNSS receiver greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.
A rich set of Internet protocols, industry-standard interfaces (USB 2.0, PCM, UART, etc.) and abundant functionalities (USB drivers for Windows 8.1/ 10/ 11, Linux and Android) extend the applicability of the module to a wide range of RedCap applications.
Key features of Quectel RG255C-GL Mini PCIe
- Worldwide 5G/ 4G coverage
- 5G SA mode, 5G LAN*/ URLLC/ Slicing supported
- Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment (optional)
- Feature refinements: DFOTA and VoNR/ VoLTE (optional)
- Extended temperature range of -40°C to +85°C
- 5G NR Sub-6 GHz Bands
- LTE Cat 4
- Embedded Abundant Protocols
- Quectel Enhanced AT Commands
- Mini PCIe Form Factor
- Multi-constellation GNSS (optional)
- USB 2.0 High Speed Interface
- VoNR/VoLTE (optional)
