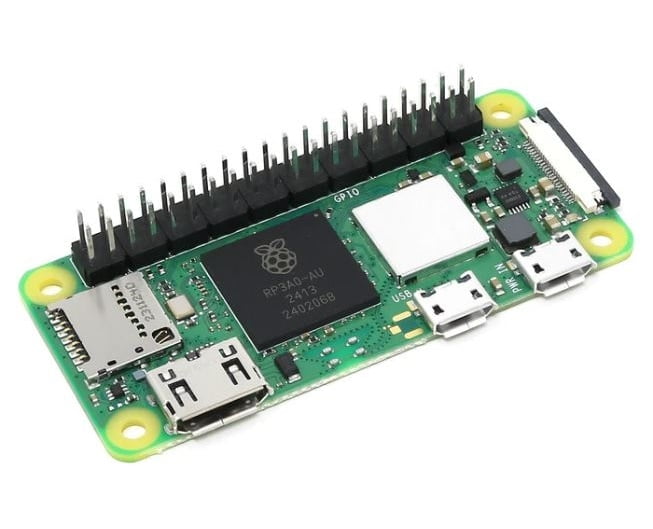

Raspberry Pi Zero 2 W with Header

Name: Raspberry Pi Zero 2 W with Header
Brand: Raspberry Pi
SKU: SC0721
Price: 13.5 GBP
Availability: InStock

Raspberry Pi Zero 2 W with Header is the latest product in Raspberry Pi's most affordable range of single-board computers.

This 'with Header' variant is now available with a pre-soldered 2x20 0.1” GPIO header.

At the heart of Raspberry Pi Zero 2 W with Header is RP3A0, a custom-built system-in-package designed by Raspberry Pi in the UK. With a quad-core 64-bit ARM Cortex-A53 processor clocked at 1GHz and 512MB of SDRAM, Zero 2 is up to five times as fast as the original Raspberry Pi Zero.

Wireless LAN is built in to a shielded enclosure with improved RF compliance, giving you more flexibility when designing with Raspberry Pi Zero 2 W.

Also available without pre-soldered headers - see the Raspberry Pi Zero 2 W.

£13.50

Additional information

Data Sheet/Product Brief

https://bcdatlantik.co.uk//bcd-assets/specsheets/raspberry-pi-zero-2-w-product-brief.pdf

Expected delivery time

Please contact us for stock availability before placing an order. Email sales@bcdatlantik.co.uk or call 01256 818111.

Available Offer

Product Details

Raspberry Pi Zero 2 W with Header is perfect for a range of smart home applications and other IoT projects. From security cameras to Bluetooth speakers, Zero 2 W has the tiny form factor and impressive power that make it an ideal computer for your projects.

The successor to the breakthrough Raspberry Pi Zero W, Raspberry Pi Zero 2 W is a form factor-compatible drop-in replacement for the original board.

The board incorporates a quad-core 64-bit Arm Cortex-A53 CPU, clocked at 1GHz. At its heart is a Raspberry Pi RP3A0 system-in-package (SiP), integrating a Broadcom BCM2710A1 die with 512MB of LPDDR2 SDRAM. The upgraded processor provides Raspberry Pi Zero 2 W with 40% more single-threaded performance, and five times more multi-threaded performance, than the original single-core Raspberry Pi Zero.

Raspberry Pi Zero 2 W offers 2.4GHz 802.11 b/g/n wireless LAN and Bluetooth 4.2, along with support for Bluetooth Low Energy (BLE), and modular compliance certification.

The board has a microSD card slot, a CSI-2 camera connector, a USB On-The-Go (OTG) port, and an unpopulated footprint for a HAT-compatible 40-pin GPIO header. It is powered via a micro USB socket. Video output is via a mini HDMI port; composite video output can easily be made available via test points if needed.

Sharing the same tiny 65mm × 30mm form factor as the original Raspberry Pi Zero, Raspberry Pi Zero 2 W fits inside most existing Raspberry Pi Zero cases.
