Raspberry Pi Touch Display 2 - 5"

SC1975 - 5 inch portrait variant of the Touch Display 2

A smaller version of the Raspberry Pi Touch Display 2, with a compact 5" capacitive touchscreen display offering the same 720x1280 resolution and five-finger capacitive touch with plug-and-play setup:

5" diagonal display size
85-degree viewing angle
24-bit RGB
720x1280-pixel resolution
True multi-touch capacitive panel with five-finger touch

£30.00

Additional information

Data Sheet/Product Brief

https://bcdatlantik.co.uk//bcd-assets/specsheets/touch-display-2-product-brief-aug25.pdf

Expected delivery time

Please contact us for stock availability before placing an order. Email sales@bcdatlantik.co.uk or call 01256 818111.

Product Details

Touch Display 2 is powered from your Raspberry Pi, and is compatible with all Raspberry Pi computers from Raspberry Pi 1B+ onwards, except for the Raspberry Pi Zero series which lack the necessary DSI port.

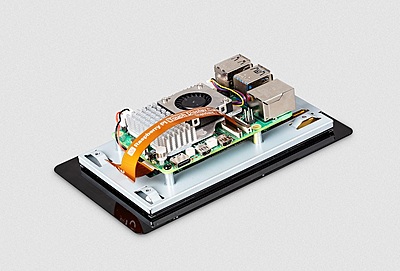

It attaches securely to your Raspberry Pi with four screws, and ships with power and data cables compatible with both standard and mini FPC connector formats.

Raspberry Pi OS provides touchscreen drivers with support for five-finger touch and an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse.

Only two connections are required to connect the 720 × 1280 display to your Raspberry Pi: power from the GPIO port, and a ribbon cable that connects to the DSI port on all Raspberry Pi computers except for the Raspberry Pi Zero line.
