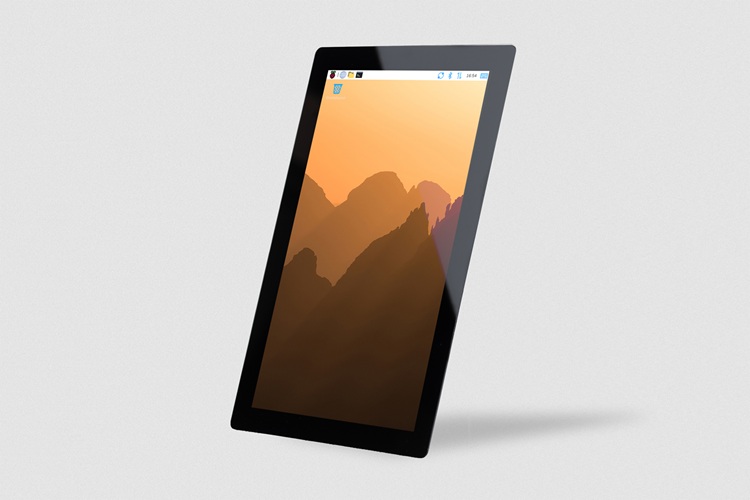

Raspberry Pi Touch Display 2 - 10.1" Portrait

Raspberry Pi Touch Display 2 - 10.1" Portrait

SC2005 - 10.1inch portrait variant of the Touch Display 2

This is a portrait-native display offering:

10.1” diagonal display size
135.36mm x 216.576mm active display area
85-degree viewing angle
24-bit RGB
1200 x 1920-pixel resolution
True multi-touch capacitive panel, supporting ten-finger touch
Compatible with Raspberry Pi 5 and all Raspberry Pi Compute Modules
(Note: It is NOT compatible with Raspberry Pi 1-4 or the Raspberry Pi Zero series)

Non-returnable

£60.00

Additional information

Data Sheet/Product Brief

https://pip-assets.raspberrypi.com/categories/1083-raspberry-pi-touch-display-2/documents/RP-010276-MM-1-10_%20Touch%20Display%202%20product%20brief.pdf

Expected delivery time

1-2 weeks

Product Details

Raspberry Pi Touch Display 2 is a multi-touch portrait panel for Raspberry Pi. Ideal for interactive projects such as tablets, entertainment systems, and information dashboards, it is available in 5-inch, 7-inch, and 10-inch variants to suit a wide range of applications and end-device form factors.

On the 10-inch display, Raspberry Pi OS provides touchscreen drivers with support for ten-finger touch and an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse.

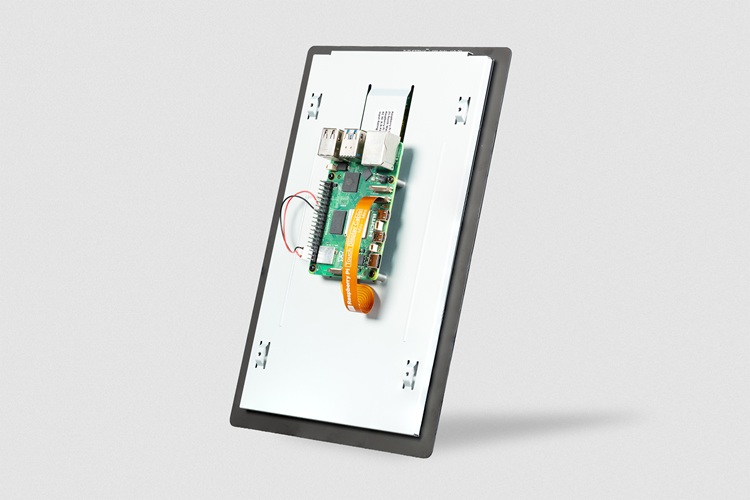

Only two connections are required to connect the display to your Raspberry Pi: a power cable for the GPIO header and a ribbon cable for the DSI port. The 10-inch variant is supplied with a power cable, a mini-mini ribbon cable, and eight M2.5 mounting screws.

The 10-inch Raspberry Pi Touch Display 2 is compatible with Raspberry Pi 5 and Raspberry Pi Compute Modules only.

Note: Raspberry Pi Compute Modules do not include a physical DSI port or GPIO header. To connect the display, pair them with a Raspberry Pi Compute Module IO Board or another compatible carrier board.

Raspberry Pi Touch Display 2 - 10.1" Portrait
