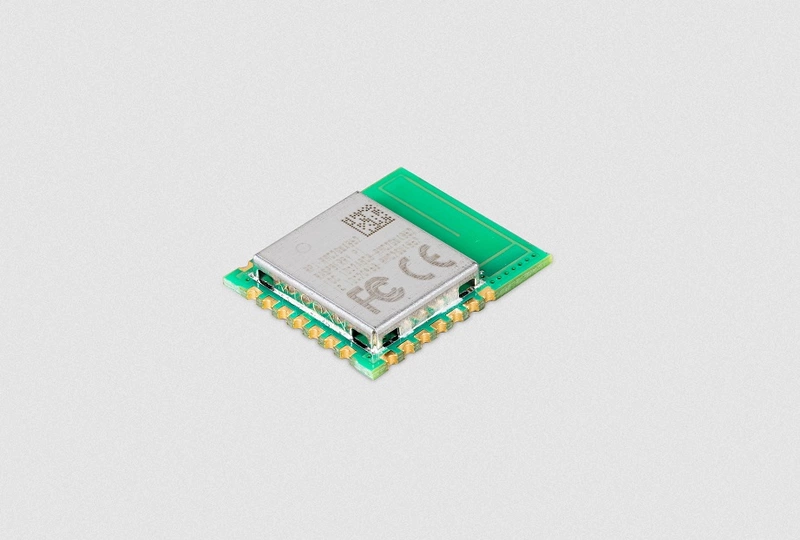

Raspberry Pi - Radio Module 2 (RM2)

Name: Raspberry Pi - Radio Module 2 (RM2)
Brand: Raspberry Pi
SKU: SC1169 - RMC20452T
Price: 3.0 GBP
Availability: InStock

Raspberry Pi Radio Module 2 is a radio module designed for use with Raspberry Pi’s low-cost, high-performance microcontrollers. It uses Infineon’s CYW43439, a single-chip combo device featuring 1 × 1 single-band 2.4GHz Wi-Fi® 4 (802.11n) and Bluetooth® 5.2 for low-cost applications. It is a small form-factor solution with minimal external components for reduced mass production costs.

The radio module has castellated edge pads to allow for a variety of mounting options, and features an on-board single 2.4GHz antenna for ease of design. It has full modular certification, making integration straightforward with regard to regulatory compliance.

Part number: RMC20452T

£3.00

Additional information

Data Sheet/Product Brief

https://bcdatlantik.co.uk//bcd-assets/specsheets/radiomodule2-product-brief.pdf

Expected delivery time

Please contact us for stock availability before placing an order. Email sales@bcdatlantik.co.uk or call 01256 818111.

Product Details

Radio Module 2 Specifications

Wi-Fi 4 (802.11n), single-band (2.4 GHz) and Bluetooth 5.2 support:

Bluetooth Classic and Bluetooth Low Energy (LE)
Supports up to 100 m (Class 1) and 10 m (Class 2)

Full software compatibility with Pico W and Pico 2 W SDK
Simple GPIO expander: Three host-controlled GPIOs for added I/O capabilities
Low-pin-count gSPI host interface allows for simplified integration with minimal I/O requirements
SISO configuration supports efficient single antenna wireless performance
Supports 20 MHz channels with data rates up to 96 Mbps (PHY rate)
Operating temperature of −30°C to +70°C
IEEE Power Save PM1 DTIM1 average rate 1: 1.19 mA
Receive active rate MCS7 (at –50 dBm): 43 mA
Transmit active rate MCS7 (at 16 dBm): 271 mA
Dimensions: 14.5mm(W) x 16.7mm(L) x 2.6mm(H)
Weight: 1g
