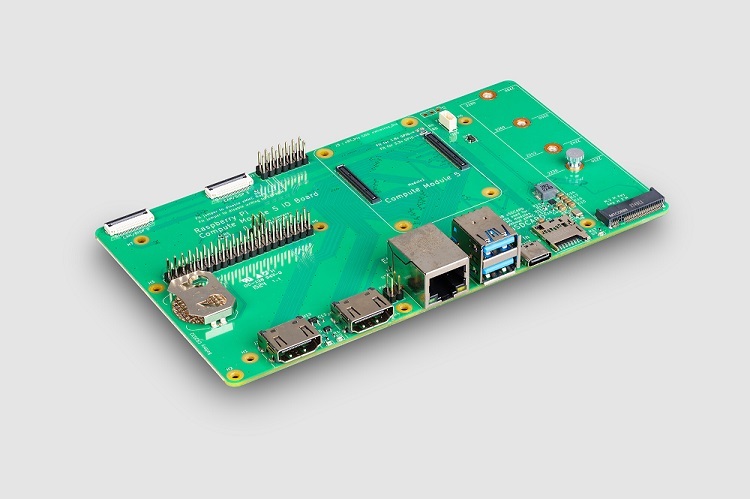

Raspberry Pi Compute Module 5 IO Board
£15.80
The Raspberry Pi Compute Module 5 IO Board breaks out every interface from a Compute Module 5. It provides a development platform and reference baseboard, reducing time to market for Compute Module 5 based designs.
Choose Quantity
Product Details
CM5 IO Board features
- Standard 40-pin GPIO connector
- 2 x full-size HDMI 2.0 connectors
- 2 x 4-lane MIPI DSI/CSI-2 FPC connectors (22-pin, 0.5mm pitch cable)
- 2 x USB 3.0 connectors
- Gigabit Ethernet jack with PoE support (requires a separate Raspberry Pi PoE HAT)
- M.2 M-key PCIe socket (for 2230, 2242, 2260 and 2280 modules)
- MicroSD card socket (for use with Lite modules)
- RTC battery socket
- 4-pin fan connector
- External power via a USB-C power supply (sold separately)
