Raspberry Pi Camera Module 3 Sensor Assembly
£11.25 - £18.75
Powerful imaging technology for small form factors

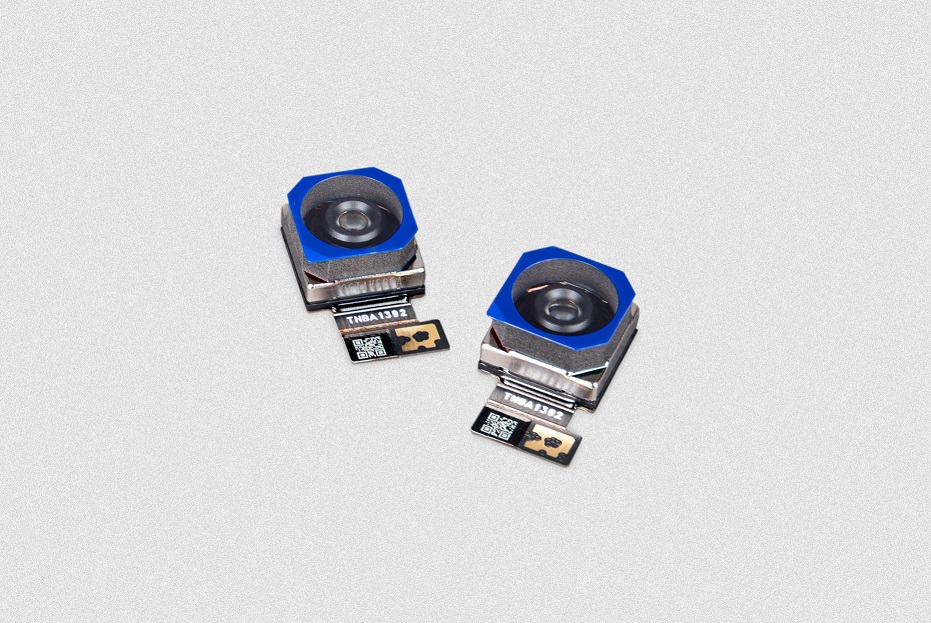

The Raspberry Pi Camera Module 3 Sensor Assemblies are now available as standalone products, allowing them to be integrated into small form factors. They offer the same IMX708 4608x2592 (11.9 megamixel) sensor, and the same Phase Detection Autofocus (PDAF) capability as Camera Module 3.
There are four variants available (please select your required option below to see the relevant price):
- Standard field of view, visible light - SA31VA30P
- Standard field of view, infra-red sensitive (NoIR) - SA31NA30P
- Wide field of view, visible light - SA36VA30P
- Wide field of view, infra-red sensitive (NoIR) - SA36NA30P
Variant
Choose Quantity
Product Details
The Raspberry Pi Camera Module 3 Sensor Assembly contains the same sensor and autofocus functionalities as Raspberry Pi Camera Module 3 AF (autofocus), enabling you to integrate the features of Camera Module 3 into a more diverse range of form factors. This assembly provides a low-cost way to add imaging capability to smaller devices, reducing manufacturing complexity and time to market.
As with Camera Module 3, the sensor assembly’s operation is fully supported by the libcamera library and the libcamera-based Picamera2 and rpicam-apps libraries, including its rapid autofocus feature; this provides a robust software environment to support the development of advanced features while making essential functionality simple to provide.
Camera Module 3 Sensory Assembly Specifications
Sensor: Sony IMX708 featuring:
- Dynamic Defect Pixel Correction (DPC)
- QBC re-mosaic function
- High dynamic range (HDR) support
Resolution: 11.9 megapixels
Sensor size: 7.4 mm sensor diagonal
Pixel size: 1.4 μm×1.4 μm
Horizontal/vertical: 4608 × 2592 pixels
IR cut filter: Integrated in standard variants; not present in NoIR variants
Autofocus system: Phase Detection Autofocus
Operating temperature: 0°C to 50°C
