Raspberry Pi AI Kit
Raspberry Pi AI Kit
Raspberry Pi AI Kit
Raspberry Pi AI Kit

Raspberry Pi AI Kit

£56.00
The Raspberry Pi AI Kit bundles an M.2-format Hailo 8L AI accelerator with the Raspberry Pi M.2 HAT+ to offer you access to excellent inferencing performance on the Raspberry Pi 5.
  • Based on the Hailo 8L accelerator with up to 13 TOPS (Trillions of Operations Per Second) inferencing performance.
  • Conforms to the HAT+ specification.

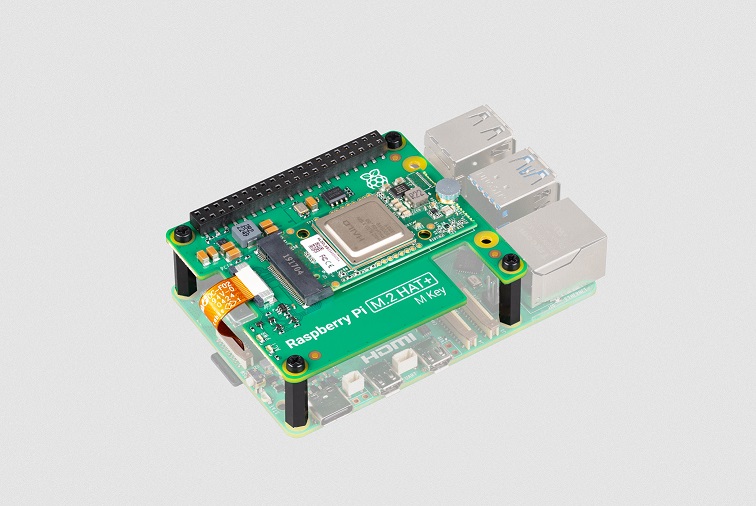

  • Supplied pre-assembled on a Raspberry Pi M.2 HAT+ so ready out of the box to use with a Raspberry Pi 5.
  • Fully integrated into Raspberry Pi’s camera software stack.
  • Supplied with a 16mm stacking header and spacers/screws to enable the M.2 HAT+ to be fitted to a Raspberry Pi 5 with the Active Cooler in place.
NOTE: The AI Kit is compatible with Raspberry Pi 5 only (Sold separately - click here to view)
Expected delivery time
In stock now! 2-4 working days
Choose Quantity
+ Add to Cart
Product Details
The new Raspberry Pi AI Kit provides an accessible, cost-effective and power-efficient way to integrate high-performance Artificial Intelligence (AI). Explore applications including process control, security, home automation and robotics.

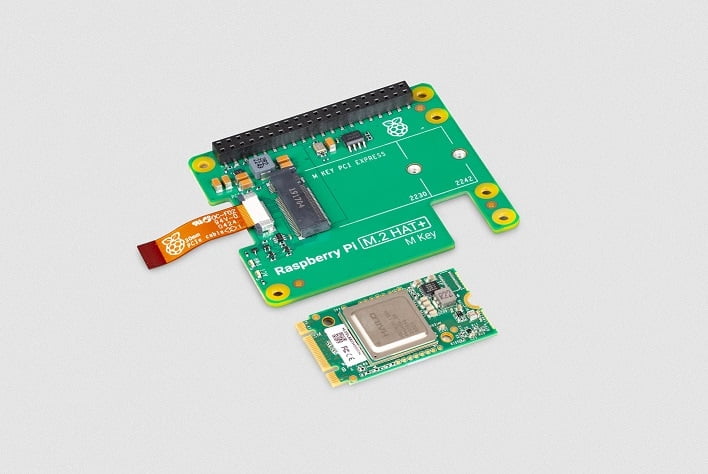

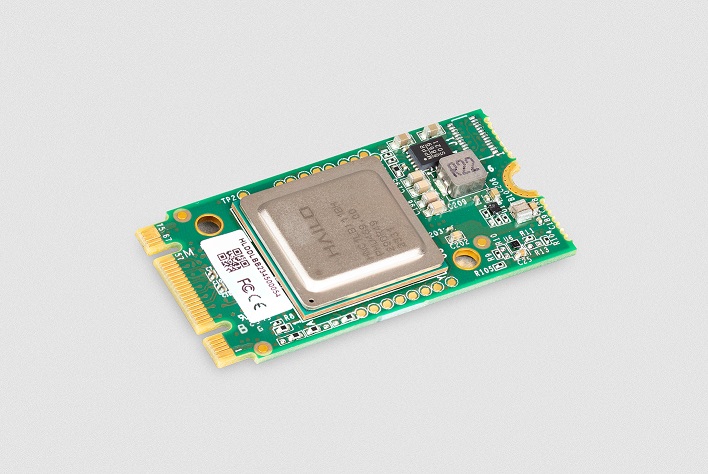

The AI module is a 13 tera-operations per second (TOPS) neural network inference accelerator built around the Hailo-8L chip. The module uses the M.2 2242 form factor, and comes pre-installed in the M.2 HAT+, to which it connects through an M key edge connector. The M.2 HAT+ communicates between the AI module’s M.2 interface and the Raspberry Pi 5’s PCIe 2.0 interface.

When the host Raspberry Pi 5 is running an up-to-date Raspberry Pi OS image, it automatically detects the Hailo module and makes the NPU available for AI computing tasks. The built-in rpicam-apps camera applications in Raspberry Pi OS natively support the AI module, automatically using the NPU to run compatible post-processing tasks.

What does the Raspberry Pi AI Kit contain?

  • A Hailo AI module containing a Neural Processing Unit (NPU)
  • A Raspberry Pi M.2 HAT+. to connect the AI module to your Raspberry Pi 5
  • A thermal pad pre-fitted between the module and the M.2 HAT+
  • A mounting hardware kit
  • a 16mm stacking GPIO header

For more information about size and specifications, please refer to the Product Brief.
