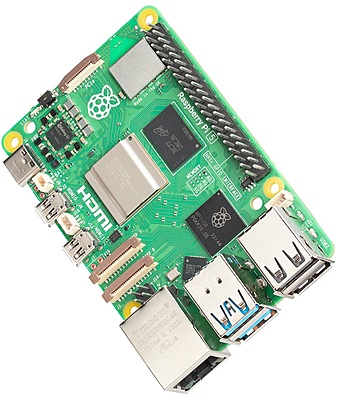

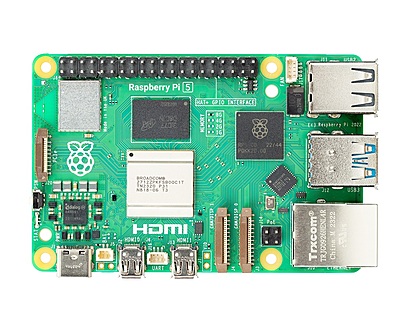

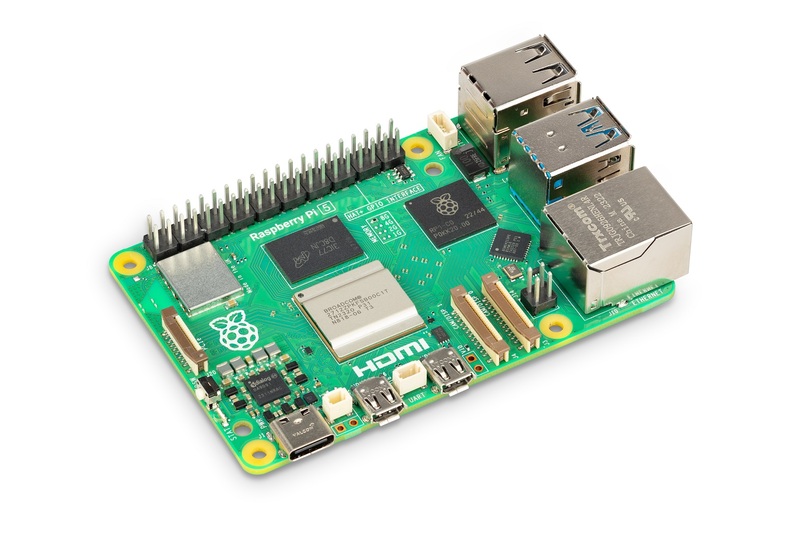

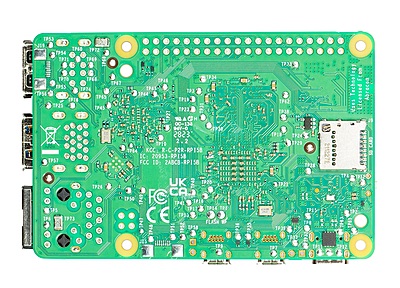

Raspberry Pi 5 (1GB)

Name: Raspberry Pi 5 (1GB)
Brand: Raspberry Pi
SKU: SC2162
Price: 33.75 GBP
Availability: InStock

Pi 5 - The latest in Raspberry Pi technology!

Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, Raspberry Pi 5 delivers a 2–3× increase in CPU performance relative to Raspberry Pi 4. Alongside a substantial uplift in graphics performance and state-of-the-art camera support from a rearchitected Raspberry Pi Image Signal Processor, it provides a smooth desktop experience for consumers, and opens the door to new applications for industrial customers.

Also available: Raspberry Pi 5 (2GB), Raspberry Pi 5 (4GB), Raspberry Pi 5 (8GB) and Raspberry Pi 5 (16GB)

£33.75

Additional information

Data Sheet/Product Brief

https://bcdatlantik.co.uk//bcd-assets/specsheets/230912-raspberry-pi-5-product-brief-v2.pdf

Expected delivery time

Awaiting new stock. Please call or email us for current lead time.

Available Offer

Product Details

For the first time, this is a full-size Raspberry Pi computer using silicon built in-house at Raspberry Pi. The RP1 “southbridge” provides the bulk of the I/O capabilities for Raspberry Pi 5, and delivers a step change in peripheral performance and functionality. Aggregate USB bandwidth is more than doubled, yielding faster transfer speeds to external UAS drives and other high-speed peripherals; the dedicated two-lane 1Gbps MIPI camera and display interfaces present on earlier models have been replaced by a pair of four-lane 1.5Gbps MIPI transceivers, tripling total bandwidth, and supporting any combination of up to two cameras or displays; peak SD card performance is doubled, through support for the SDR104 high-speed mode; and for the first time the platform exposes a single-lane PCI Express 2.0 interface, providing support for high-bandwidth peripherals.

Key features

2.4GHz quad-core, 64-bit Arm Cortex-A76 CPU, with 512KB L2 caches and a 2MB shared L3 cache
VideoCore VII GPU
LPDDR4X-4267 SDRAM (2GB, 4GB, 8GB & 16GB options available)
2.4 GHz and 5.0 GHz 802.11ac Wi-Fi
Bluetooth 5.0 / Bluetooth Low Energy (BLE)
Micro SD card slot, with support for high-speed SDR104 mode
2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
2 × USB 2.0 ports
Gigabit Ethernet, with PoE+ support (requires PoE+ HAT)
2 × 4 lane MIPI camera/display transceivers
PCIe 2.0 x1 interface for fast peripherals
5V/5A DC power (PD enabled)
Raspberry Pi standard 40-pin header
Real-Time Clock (RTC), powered from external battery
On-board power button
