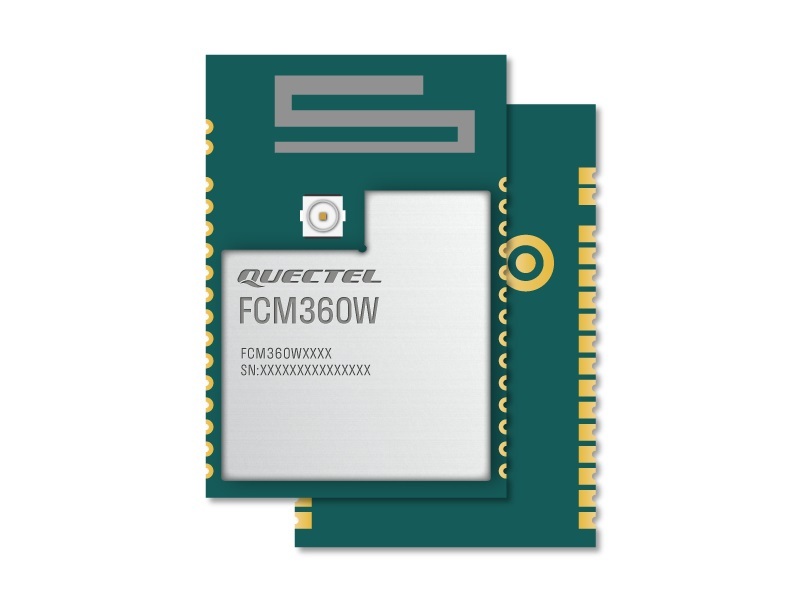

FCM360W Series Overview
FCM360W is a cutting-edge MCU Wi-Fi and BLE module launched by Quectel. It boasts a high-performance processor with a frequency of up to 240 MHz and supports IEEE 802.11b/g/n/ax protocol and BLE 5.1. The module features built-in 512 KB SRAM and 4 MB flash, ensuring efficient performance. In addition, it complies with WPA-PSK, WPA2-PSK and WPA3-SAE security standards, providing 128-bit AES encryption for added security.
FCM360W comes in an LCC form factor with an ultra-compact package size of 25.5 mm × 18.0 mm × 3.2 mm, which optimizes the size and cost for end-products and is compatible with diverse designs.
FCM360W supports up to 18 GPIOs for UART, SPI, I2C*, I2S, ADC and PWM functions in QuecOpen® solution, and many low power consumption modes and keep-alive mechanism, which provide flexibility and versatility for a range of applications, especially in smart homes and industrial IoT scenarios.
FCM360W has a user-friendly protocol stack and large memory, which allows for multi-channel SSL connections and local cache of large amounts of data, making it especially suitable for photovoltaic inverters, energy storage batteries and other smart devices that require long-term data monitoring and storage.
Key features of FCM360WAAMD-0P-04
- Wi-Fi 6 module, single band Wi-Fi (2.4 GHz), 1 × 1 antenna
- BLE 5.1 and Wi-Fi pairing via Bluetooth
- Large memory, 512 KB SRAM and 4 MB flash
- 18 GPIOs for UART, SPI, I2C*, I2S, ADC and PWM functions in QuecOpen®solution
- PCB antenna
- SPI interface available for Ethernet solution
- Operating temperature of -40°C to +85°C
Packaging: Reel (Quantities of 250 - MOQ)
